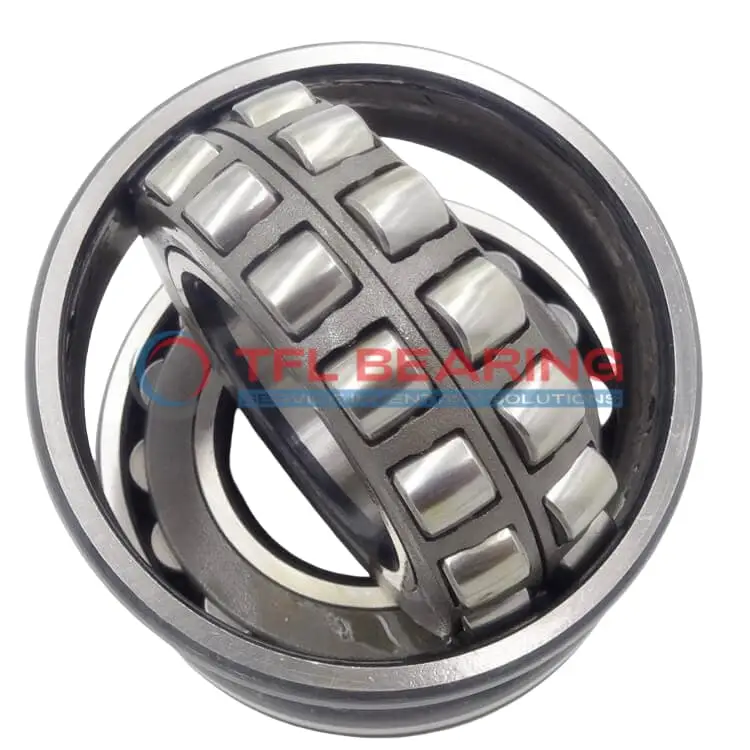

22210 CC W33 Double Row Spherical Roller Bearing

22210 CC W33 Double Row Spherical Roller Bearing

The 22210 CC W33 is a double-row spherical roller bearing with a 50mm bore and 90mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 24055 lbf and spins smoothly at speeds up to 9500 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The open construction and lubrication groove make maintenance straightforward.

This bearing operates in temperatures from -30°C to 200°C, making it suitable for demanding environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for heavy machinery or industrial equipment where high radial loads and misalignment are common. Weighing 0.62kg, it balances strength and practicality. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22210 CC W33
  • Brand TFL
  • Interchangeable SKF
  • Size 50 x 90 x 23 mm
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 60 mm
  • Shoulder/Recess Dia Of Outer Ring 79 mm
  • Width Of Lubrication Groove 5.5 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24055 lbf
  • Static Radial Load 24279 lbf
  • Max Speed 9500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.62 kg
  • Price （US$） 26.82

Features

Performance Features of 22210 CC W33 Bearing

22210 CC W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24055 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 9500 rpm, it maintains efficiency even under high-speed conditions.

22210 CC W33 Bearing operates in temperatures from -30° to 200°C, suitable for various industrial environments.
The lubrication groove and hole design ensure consistent lubrication, extending service life.

Steel cage construction keeps the rollers in place, minimising wear and tear.
Its radial clearance of CN provides a balance between precision and durability.

Application

Industrial Uses of 22210 CC W33 Bearing
The 22210 CC W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently.
Its spherical roller construction allows for slight misalignment, making it ideal for rugged industrial environments.

Where Is 22210 CC W33 Bearing Used?
You’ll often find 22210 CC W33 Bearing in conveyor systems and gearboxes, where its high dynamic load capacity ensures reliable performance.
The lubrication groove and hole design make maintenance straightforward, even in continuous operation.

Built for Heavy-Duty Use: 22210 CC W33 Bearing
This bearing excels in mining equipment, thanks to its chrome steel rollers and robust steel cage.
The wide temperature range (-30° to 200°C) ensures it performs well in both hot and cold conditions.

Automotive vs Aerospace: Applications of 22210 CC W33 Bearing
In automotive applications, 22210 CC W33 Bearing supports drivetrain components, offering durability under high radial loads.
For aerospace, its precision and reliability make it suitable for auxiliary systems requiring consistent performance.

Practical Applications of 22210 CC W33 Bearing
In wind turbines, 22210 CC W33 Bearing handles the variable loads and misalignments common in rotor shafts.
The open seal design allows for easy re-lubrication, extending service life in remote installations.
