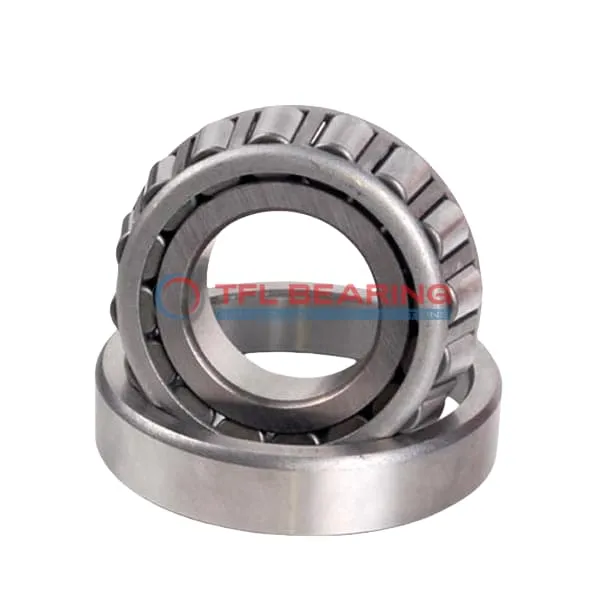

TS (Single Row Tapered Roller Bearings) (Imperial) HM813846-HM813810P

TS (Single Row Tapered Roller Bearings) (Imperial) HM813846-HM813810P

The HM813846-HM813810P is a single-row tapered roller bearing with a 2.75″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 51500 lbf radial and 11500 lbf thrust, making it versatile for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like gearboxes, axles, or machinery where combined loads are common.

Weighing 4.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

The standard radial clearance can be adjusted to C3, C4, or C5 for specific needs. Its ABEC-1 rating ensures consistent performance without over-engineering.

Perfect for maintenance teams needing a dependable bearing that’s easy to install and service. The tapered roller design provides excellent load distribution, reducing wear over time.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM813846-HM813810P
  • Brand TFL
  • Interchangeable Timken
  • Size 2.75" x 5" x 1.4375"
  • Bore Dia 2.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.94"
  • Cone Backface Backing Diameter 3.5"
  • Cup Frontface Backing Diameter 4.80"
  • Cup Backface Backing Diameter 4.37"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.14"
  • Effective Center Location -0.15"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HM813846
  • Cup Part Number HM813810P
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HM813800
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 51500 lbf
  • Static Radial Load 57600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 13400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.2 lb

Features

Performance Features of HM813846-HM813810P Bearing

HM813846-HM813810P Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 51,500 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

HM813846-HM813810P Bearing requires lubrication to maintain smooth operation and reduce wear.
Its standard radial clearance makes it versatile for different industrial uses.

Application

Industrial Uses of HM813846-HM813810P Bearing
HM813846-HM813810P Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, HM813846-HM813810P Bearing supports axle systems and wheel hubs, providing reliable performance under radial and thrust loads. Its inch sizing makes it a good fit for American-made vehicles.

For industrial gearboxes, HM813846-HM813810P Bearing’s open design allows for easy lubrication, extending service life in high-speed operations. The steel cage adds stability, reducing wear over time.

Where Is HM813846-HM813810P Bearing Used?
You’ll often find HM813846-HM813810P Bearing in agricultural machinery, where its robust design handles uneven loads and harsh conditions. The standard radial clearance ensures smooth operation in varying temperatures.

In mining equipment, HM813846-HM813810P Bearing’s high dynamic load capacity makes it suitable for conveyor systems and crushers. Its compatibility with Timken models simplifies replacements.

Built for Heavy-Duty Use: HM813846-HM813810P Bearing
HM813846-HM813810P Bearing excels in forestry equipment, where its tapered rollers manage heavy loads and shock impacts. The ABEC-1 rating balances precision and cost-effectiveness.

For railway applications, HM813846-HM813810P Bearing’s temperature range (-30° to 110°C) ensures reliability in diverse climates. The steel cage prevents deformation under constant vibration.

Automotive vs Aerospace: Applications of HM813846-HM813810P Bearing
In trucks and buses, HM813846-HM813810P Bearing supports drivetrains, offering a balance of strength and ease of maintenance. The inch measurements align with standard US components.

For ground support equipment in aerospace, HM813846-HM813810P Bearing handles moderate loads while resisting corrosion. Its chrome steel rollers provide consistent performance over long periods.
