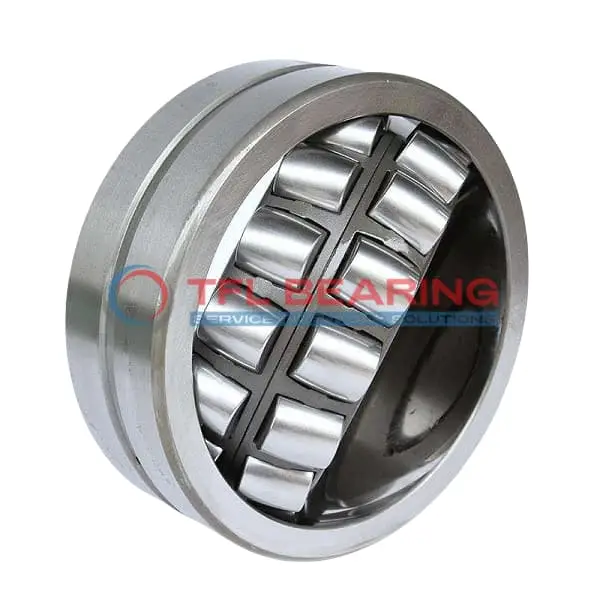

22207 CCK C3 W33 Double Row Spherical Roller Bearing

22207 CCK C3 W33 Double Row Spherical Roller Bearing

The 22207 CCK C3 W33 is a double-row spherical roller bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 19963 lbf and reaches speeds of 12000 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The open construction and lubrication groove make maintenance straightforward.

This bearing suits high-load applications like industrial gearboxes or heavy machinery, operating in temperatures from -30°C to 200°C. It’s interchangeable with SKF models for easy replacement.

Weighing 0.44kg, it offers robust performance in a compact size. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22207 CCK C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 35 x 72 x 23 mm
  • Bore Dia 35 mm
  • Bore Dia Tolerance +0.025mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 44.5 mm
  • Shoulder/Recess Dia Of Outer Ring 61.8 mm
  • Width Of Lubrication Groove 3.7 mm
  • Diameter Of Lubrication Hole 2 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 19963 lbf
  • Static Radial Load 19109 lbf
  • Max Speed 12000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.44 kg
  • Price （US$） 20.7

Features

Performance Features of 22207 CCK C3 W33 Bearing

22207 CCK C3 W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 19963 lbf, ensuring reliable performance in demanding conditions.

The double-row spherical roller design allows for misalignment compensation, enhancing operational flexibility.
With a maximum speed of 12,000 rpm, it delivers both durability and efficiency.

22207 CCK C3 W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The C3 radial clearance provides optimal performance under thermal expansion and heavy loads.

Steel cage construction ensures roller alignment, reducing wear and extending service life.
Lubrication grooves and holes facilitate easy maintenance, keeping the bearing running smoothly.

Application

Industrial Uses of 22207 CCK C3 W33 Bearing
The 22207 CCK C3 W33 Bearing is commonly used in heavy machinery like crushers and vibratory screens, where its double-row design handles both radial and axial loads efficiently. Its C3 clearance allows for thermal expansion, making it suitable for high-temperature environments.

Where Is 22207 CCK C3 W33 Bearing Used?
You’ll often find 22207 CCK C3 W33 Bearing in conveyor systems and industrial fans, thanks to its robust construction and ability to withstand misalignment. The lubrication groove ensures smooth operation even in demanding conditions.

Built for Heavy-Duty Use: 22207 CCK C3 W33 Bearing
In mining equipment, 22207 CCK C3 W33 Bearing excels due to its high dynamic load capacity and durability. The chrome steel rollers provide long-lasting performance under extreme stress.

Automotive vs Aerospace: Applications of 22207 CCK C3 W33 Bearing
While 22207 CCK C3 W33 Bearing is used in truck transmissions for its load-handling capabilities, it’s also found in aircraft landing gear components. Its versatility makes it a reliable choice across industries.

Perfect Fit for Automation: 22207 CCK C3 W33 Bearing
In robotic arms and automated assembly lines, 22207 CCK C3 W33 Bearing ensures precise movement and low friction. The steel cage adds stability, making it ideal for repetitive tasks.
