Drawn Cup Needle Roller Bearings SCE128

Drawn Cup Needle Roller Bearings SCE128

The SCE128 is a drawn cup needle roller bearing with a 0.75″ bore and 1″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 2203 lbf and spins smoothly at speeds up to 13100 RPM.
Its open-end design and press-fit mounting make it easy to install in tight spaces, while the steel cage ensures durability. The bearing requires lubrication to maintain optimal performance.
This model is interchangeable with INA bearings, offering a practical solution for replacements. It works well in temperatures ranging from -20°C to 110°C.
Ideal for applications like automotive components or small machinery where space is limited and radial loads are common. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE128
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.75"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1"
  • Outer Dia Tolerance Not Rated
  • Width 0.5"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2203 lbf
  • Static Radial Load 281 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 13100 rpm
  • Weight 14 g

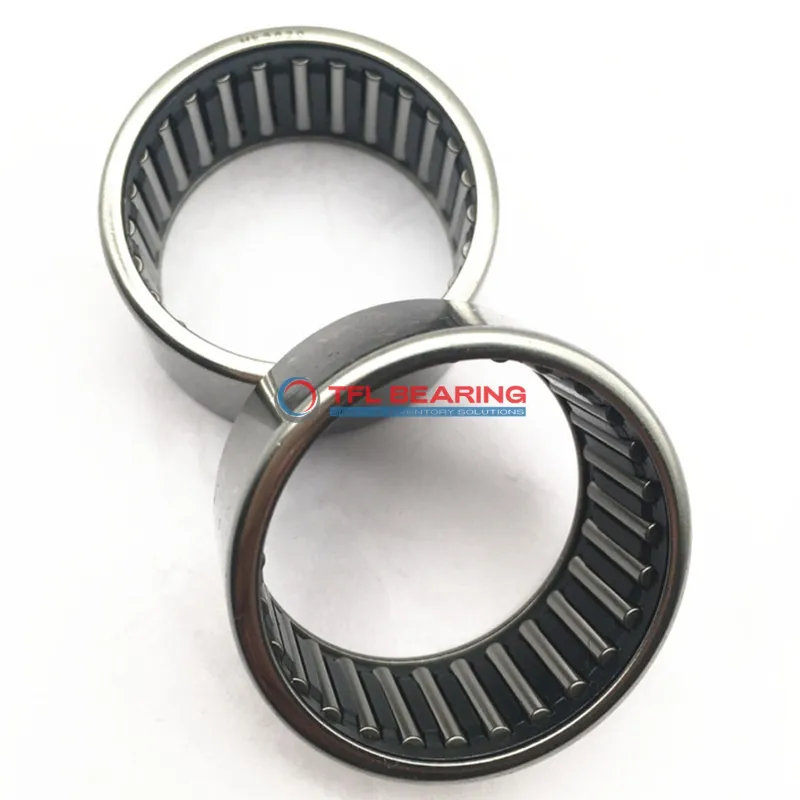

Drawn Cup Needle Roller Bearings SCE128 dimension drawing
Download DWG Download PDF

Features

Why Choose SCE128 Bearing for Precision Tasks?
SCE128 Bearing features a drawn cup design with steel rollers, offering precise radial load handling.
Its dynamic radial load capacity of 2203 lbf ensures reliable performance in high-speed applications.
The press-fit shaft mount simplifies installation, saving time and effort during assembly.
With a maximum speed of 13,100 rpm, it balances efficiency and durability for demanding tasks.

Application

Key Fields for SCE128 Bearing
SCE128 Bearing is commonly used in industrial equipment like conveyor systems and packaging machines, where its compact design helps save space while handling radial loads efficiently. The press-fit mounting ensures a secure installation in high-vibration environments.
What Makes SCE128 Bearing a Preferred Choice?
In automotive applications, SCE128 Bearing fits well in gearboxes and steering systems, offering reliable performance under continuous radial stress. Its steel construction provides durability, making it suitable for both light and heavy-duty vehicles.
Perfect Fit for Automation: SCE128 Bearing
For automation systems, SCE128 Bearing works smoothly in robotic arms and assembly line equipment, where precision and low maintenance are key. The open-end design allows easy lubrication, extending its service life in demanding conditions.
Medical vs Industrial: Where SCE128 Bearing Excels
While SCE128 Bearing isn’t typically used in medical devices, it shines in industrial settings like printing presses and textile machinery. Its high-speed capability and steel components make it a dependable choice for consistent performance.
Where Is SCE128 Bearing Used?
In consumer electronics, SCE128 Bearing can be found in printers and small appliances, where its inch sizing suits compact designs. The required lubrication ensures smooth operation, even in devices with frequent start-stop cycles.
