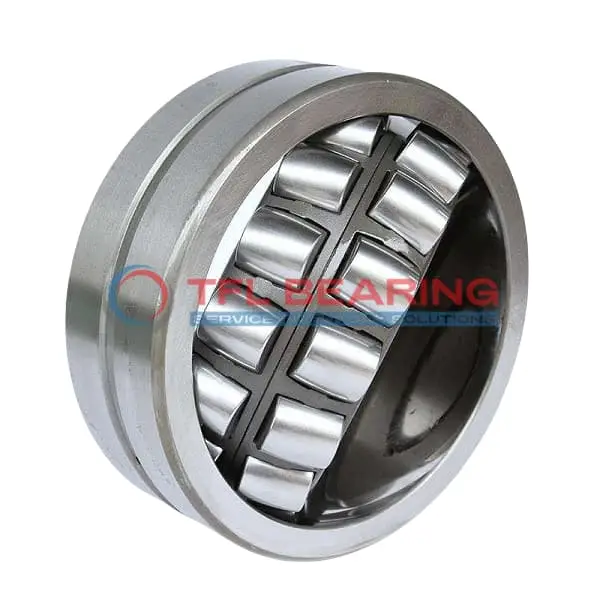

22205 E CC C3 W33 Double Row Spherical Roller Bearing

22205 E CC C3 W33 Double Row Spherical Roller Bearing

The 22205 E CC C3 W33 is a double-row spherical roller bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 11218 lbf and spins smoothly at speeds up to 17000 RPM.

Its open design and C3 radial clearance allow for easy lubrication, while the steel cage ensures durability. The bearing operates well in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like gearboxes or industrial machinery where combined loads are common.

Weighing just 0.18kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22205 E CC C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 25 x 52 x 18 mm
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 31.3 mm
  • Shoulder/Recess Dia Of Outer Ring 44.2 mm
  • Width Of Lubrication Groove 3.7 mm
  • Diameter Of Lubrication Hole 2 mm
  • Chamfer Dimension min.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 11218 lbf
  • Static Radial Load 9892 lbf
  • Max Speed 17000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.18 kg
  • Price （US$） 17.98

Features

Performance Features of 22205 E CC C3 W33 Bearing

22205 E CC C3 W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 11218 lbf, ensuring reliable operation in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, maintaining smooth performance.
With a maximum speed of 17,000 rpm, it balances high-speed capability and durability.

22205 E CC C3 W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The steel cage ensures proper roller alignment, reducing friction and extending service life.

Application

Industrial Uses of 22205 E CC C3 W33 Bearing
22205 E CC C3 W33 Bearing is commonly used in heavy machinery like conveyor systems and crushers, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction helps compensate for misalignment, ensuring smooth operation even in demanding conditions.

Where Is 22205 E CC C3 W33 Bearing Used?
In automotive applications, 22205 E CC C3 W33 Bearing supports components like gearboxes and differentials, thanks to its high load capacity and durability. The C3 radial clearance also allows for thermal expansion, making it suitable for high-speed scenarios.

Built for Heavy-Duty Use: 22205 E CC C3 W33 Bearing
This bearing excels in industrial fans and pumps, where its steel cage and chrome steel rollers provide long-lasting performance. The lubrication groove ensures consistent oil flow, reducing wear even under continuous operation.

Automotive vs Industrial: Applications of 22205 E CC C3 W33 Bearing
While 22205 E CC C3 W33 Bearing is popular in vehicle transmissions, it also shines in mining equipment due to its robust construction. The wide temperature range (-30° to 200°C) makes it versatile for both environments.

Key Fields for 22205 E CC C3 W33 Bearing
In automation systems, 22205 E CC C3 W33 Bearing is often found in robotic arms, where precision and reliability are critical. The open design allows for easy lubrication, maintaining performance over extended periods.
