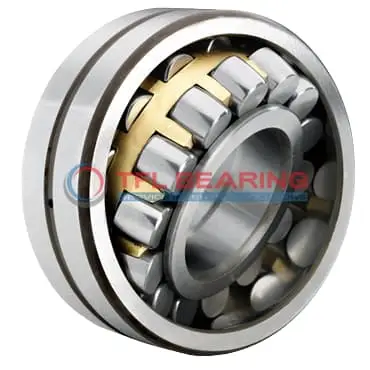

23060 CACK/C08W507 Double Row Spherical Roller Bearing

23060 CACK/C08W507 Double Row Spherical Roller Bearing

The 23060 CACK/C08W507 is a double-row spherical roller bearing with a 300mm bore and 460mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 484238 lbf and operates smoothly at speeds up to 1500 RPM.

Its tapered bore ensures a secure fit, while the brass cage enhances durability. The open design allows for easy lubrication, with grooves and holes for efficient maintenance.

This bearing is suitable for heavy-duty applications like industrial machinery or mining equipment, where high radial loads are common. It performs well in temperatures ranging from -30°C to 200°C.

Weighing 71.5kg, it’s built for strength and reliability. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23060 CACK/C08W507
  • Brand TFL
  • Interchangeable SKF
  • Size 300 x 460 x 118 mm
  • Bore Dia 300 mm
  • Bore Dia Tolerance +0.052mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 118 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 352 mm
  • Shoulder/Recess Dia Of Outer Ring 414 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 484238 lbf
  • Static Radial Load 75311 lbf
  • Max Speed 1500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 71.5 kg
  • Price （US$） US$1,950.98

Features

Performance Features of 23060 CACK/C08W507 Bearing

23060 CACK/C08W507 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 484238 lbf, ensuring reliable operation in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and extending service life.
With a maximum speed of 1500 rpm, it delivers consistent performance under demanding conditions.

23060 CACK/C08W507 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, making it suitable for various industrial uses.

The lubrication groove and hole ensure proper oil distribution, enhancing durability.
This design reduces maintenance needs while maintaining high performance standards.

Application

Industrial Uses of 23060 CACK/C08W507 Bearing
23060 CACK/C08W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The brass cage ensures smooth operation even under high stress.

In mining equipment, 23060 CACK/C08W507 Bearing’s tapered bore provides secure fitting on shafts, reducing slippage during intense operations. Its chrome steel construction offers excellent resistance to wear in abrasive environments.

For wind turbines, 23060 CACK/C08W507 Bearing supports the main shaft, accommodating both radial and axial loads. The P5 radial run-out precision ensures reliable performance in demanding conditions.

Where Is 23060 CACK/C08W507 Bearing Used?
You’ll find 23060 CACK/C08W507 Bearing in paper mills, where its high dynamic load capacity keeps rollers running smoothly. The open design allows for easy lubrication, extending service life.

In steel plants, 23060 CACK/C08W507 Bearing handles the extreme loads of rolling mills. Its temperature range up to 200°C makes it suitable for hot processing environments.

Built for Heavy-Duty Use: 23060 CACK/C08W507 Bearing
23060 CACK/C08W507 Bearing is ideal for construction equipment like cranes, where its combined load capacity supports lifting mechanisms. The metric sizing ensures compatibility with global machinery standards.

In marine applications, 23060 CACK/C08W507 Bearing’s corrosion-resistant materials perform well in harsh saltwater conditions. The lubrication groove design simplifies maintenance in hard-to-reach areas.

Automotive vs Aerospace: Applications of 23060 CACK/C08W507 Bearing
In large trucks, 23060 CACK/C08W507 Bearing is used in differential systems, handling heavy loads and vibrations. Its durability reduces downtime for maintenance.

For aerospace ground equipment, 23060 CACK/C08W507 Bearing’s precision supports aircraft loading systems. The high-speed capability ensures efficient operation during frequent use.
