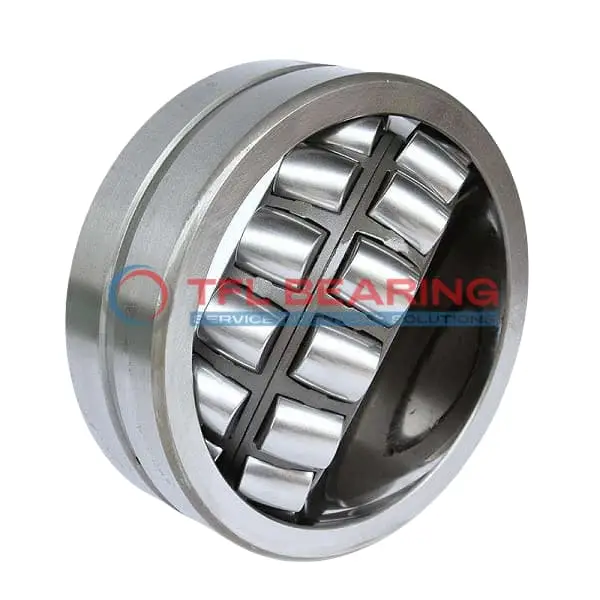

22205 CCK Double Row Spherical Roller Bearing

22205 CCK Double Row Spherical Roller Bearing

The 22205 CCK is a double-row spherical roller bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 11218 lbf and operates smoothly at speeds up to 17000 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where combined loads are common.

Weighing just 0.18kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22205 CCK
  • Brand TFL
  • Interchangeable SKF
  • Size 25 x 52 x 18 mm
  • Bore Dia 25 mm
  • Bore Dia Tolerance +0.021mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 31.3 mm
  • Shoulder/Recess Dia Of Outer Ring 44.2 mm
  • Width Of Lubrication Groove 3.7 mm
  • Diameter Of Lubrication Hole 2 mm
  • Chamfer Dimension min.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 11218 lbf
  • Static Radial Load 9892 lbf
  • Max Speed 17000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.18 kg
  • Price （US$） 19.8

Features

Performance Features of 22205 CCK Bearing

22205 CCK Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 11218 lbf, ensuring reliable performance in demanding conditions.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 17,000 rpm, it balances durability and high-speed operation.

22205 CCK Bearing operates in temperatures from -30° to 200°C, suitable for various industrial applications.
The steel cage maintains roller alignment, enhancing stability and extending service life.

Application

Industrial Uses of 22205 CCK Bearing
22205 CCK Bearing is commonly used in heavy machinery like conveyor systems and crushers, where its double-row design handles both radial and axial loads efficiently. The chrome steel construction ensures durability in demanding industrial environments.

Where Is 22205 CCK Bearing Used?
You’ll often find 22205 CCK Bearing in automotive applications such as gearboxes and differential systems, thanks to its ability to manage high-speed rotations. The tapered bore design also simplifies installation and alignment.

Built for Heavy-Duty Use: 22205 CCK Bearing
In mining equipment, 22205 CCK Bearing excels due to its robust steel cage and high load capacity. The lubrication groove design helps maintain performance even under continuous operation.

Automotive vs Aerospace: Applications of 22205 CCK Bearing
While 22205 CCK Bearing is popular in automotive transmissions, it’s also suitable for aerospace components requiring reliable performance at high speeds. The wide temperature range makes it versatile for various conditions.

Perfect Fit for Automation: 22205 CCK Bearing
For robotic arms and automated production lines, 22205 CCK Bearing offers smooth movement and long service life. Its open design allows for easy lubrication, reducing downtime in busy factories.
