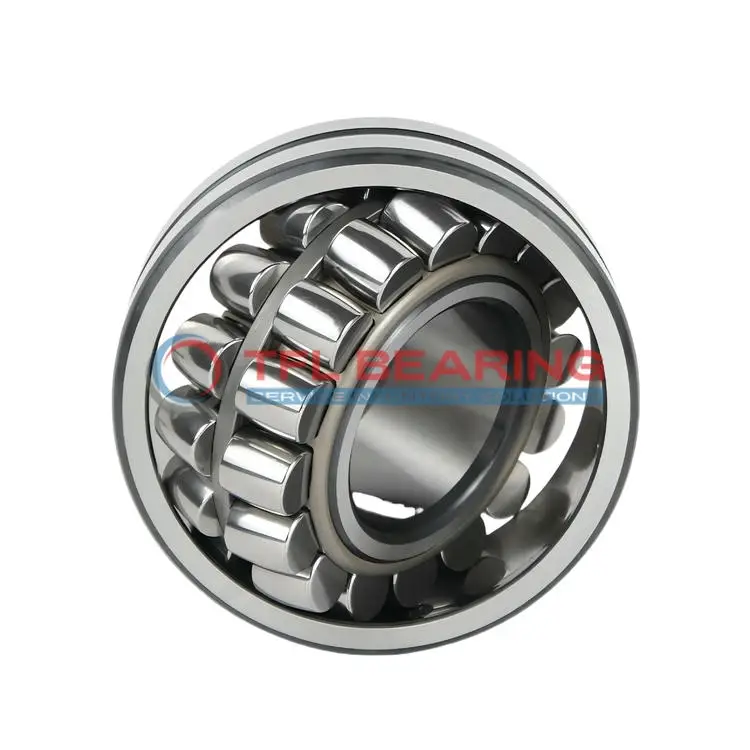

22205 E/C3VQ335 Double Row Spherical Roller Bearing

22205 E/C3VQ335 Double Row Spherical Roller Bearing

The 22205 E/C3VQ335 is a double-row spherical roller bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 11218 lbf and spins smoothly at speeds up to 17000 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates well in temperatures ranging from -30°C to 200°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial machinery or gear systems where combined loads are common.

Weighing just 0.18kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22205 E/C3VQ335
  • Brand TFL
  • Interchangeable SKF
  • Size 25 x 52 x 18 mm
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 31.3 mm
  • Shoulder/Recess Dia Of Outer Ring 44.2 mm
  • Width Of Lubrication Groove 3.7 mm
  • Diameter Of Lubrication Hole 2 mm
  • Chamfer Dimension min.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 11218 lbf
  • Static Radial Load 9892 lbf
  • Max Speed 17000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.18 kg
  • Price （US$） 23.99

Features

Performance Features of 22205 E/C3VQ335 Bearing

22205 E/C3VQ335 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 11218 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for smooth operation even under misalignment conditions.
With a maximum speed of 17,000 rpm, it balances durability and high-speed performance.

22205 E/C3VQ335 Bearing operates in temperatures from -30° to 200°C, making it suitable for varied environments.
The C3 radial clearance ensures optimal performance under thermal expansion and heavy loads.

Steel cage construction keeps the rollers aligned, reducing wear and extending service life.
Its open design simplifies lubrication, ensuring consistent performance with minimal maintenance.

Application

Industrial Uses of 22205 E/C3VQ335 Bearing
22205 E/C3VQ335 Bearing is commonly used in heavy machinery like conveyor systems and crushers, where its double-row design handles combined loads efficiently. The spherical roller construction allows for slight misalignment, making it reliable in rugged environments.

Where Is 22205 E/C3VQ335 Bearing Used?
In automotive applications, 22205 E/C3VQ335 Bearing supports components like differentials and wheel hubs, thanks to its high radial load capacity. The chrome steel rollers ensure durability even under continuous stress.

Built for Heavy-Duty Use: 22205 E/C3VQ335 Bearing
This bearing excels in industrial fans and pumps, where its C3 clearance accommodates thermal expansion. The open design simplifies lubrication, extending service life in high-speed operations.

Automotive vs Aerospace: Applications of 22205 E/C3VQ335 Bearing
While 22205 E/C3VQ335 Bearing is popular in vehicle transmissions, its temperature range also suits aerospace auxiliary systems. The steel cage provides stability across varied load conditions.

Perfect Fit for Automation: 22205 E/C3VQ335 Bearing
In robotic arms and assembly lines, 22205 E/C3VQ335 Bearing offers smooth rotation with minimal maintenance. Its metric sizing ensures compatibility with European and Asian machinery standards.
