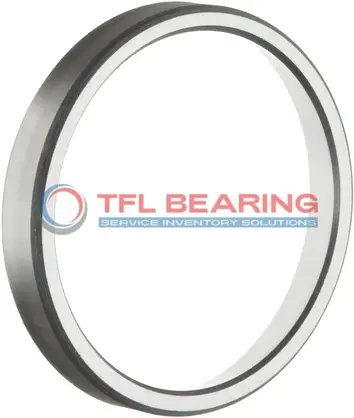

19269 Single Cups (Imperial)

19269 Single Cups (Imperial)

The 19269 is a single cup tapered roller bearing with an outer diameter of 2.6875 inches and a width of 0.6311 inches, made from durable chrome steel. It fits well with various tapered roller bearings, including Timken models, making it versatile for replacements.

Its standard cup design ensures easy installation and reliable performance in temperatures ranging from -30°C to 110°C. The ABEC-1 rating provides a good balance of precision and affordability for general applications.

This cup is part of the 19000 series, known for its robust construction and compatibility with multiple bearing part numbers. Ideal for use in industrial machinery or automotive systems where tapered roller bearings are required.

Compliant with RoHS and REACH standards, it offers a safe and environmentally friendly option for your bearing needs. The compact size and sturdy build make it a practical choice for various mechanical setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 19269
  • Brand TFL
  • Interchangeable Timken
  • Size 2.36" x 2.6875" x 0.6311"
  • Outer Dia 2.6875"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.6311"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.06"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.36"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 19138-19269 , 19138X-19269 , 19143-19269 , 19149X-19269 , 19150-19269 , 19153X-19269
  • Cups Type Standard
  • Series 19000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 19269 Single Cups

19269 Single Cups are crafted from chrome steel, offering durability and resistance to wear in tapered roller bearing applications.
Their precise dimensions (2.6875″ outer diameter) ensure a snug fit, maintaining alignment under load.

With a temperature range of -30° to 110°C, 19269 Single Cups perform reliably in varied environments.
The ABEC-1 rating guarantees consistent quality for standard industrial uses.

The cup design simplifies installation, reducing downtime during maintenance.
Interchangeable with Timken and other major brands, they provide flexibility in replacements.

Application

Industrial Uses of 19269 Single Cups
19269 Single Cups are commonly used in heavy machinery, such as construction equipment and agricultural gear, where their tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

What Makes 19269 Single Cups a Preferred Choice?
In automotive applications, 19269 Single Cups support wheel hubs and drivetrains, providing reliable performance under constant stress. Their inch sizing makes them compatible with many North American vehicle models.

Built for Heavy-Duty Use: 19269 Single Cups
For industrial conveyor systems, 19269 Single Cups offer smooth operation and long service life, even in high-load scenarios. The standard cup design simplifies maintenance and replacement.

Automotive vs Industrial: Applications of 19269 Single Cups
19269 Single Cups excel in both automotive and industrial settings, balancing strength and precision. Their ABEC-1 rating ensures consistent performance in various demanding environments.
