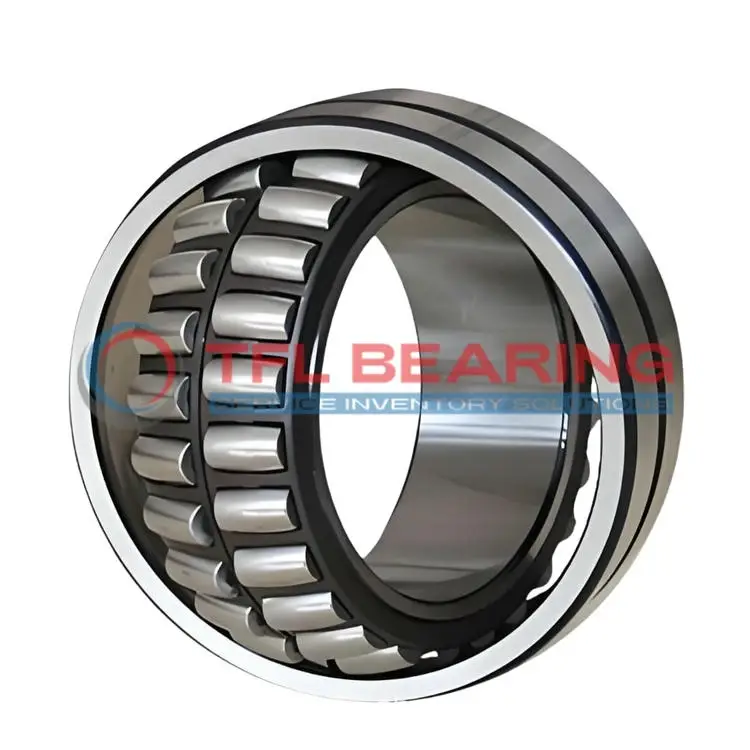

22232 CC/C3S2W33 Double Row Spherical Roller Bearing

22232 CC/C3S2W33 Double Row Spherical Roller Bearing

The 22232 CC/C3W33 is a double-row spherical roller bearing with a 160mm bore and 290mm outer diameter, built from tough chrome steel for durability. It handles combined loads up to 234476 lbf and runs smoothly at speeds up to 2800 RPM.

Its spherical roller design allows slight misalignment, while the steel cage ensures reliable performance under heavy loads. The open construction requires regular lubrication, with grooves and holes for easy maintenance.

This bearing suits high-load applications like industrial gearboxes or mining equipment, operating in temperatures from -30°C to 200°C. Its C3 radial clearance accommodates thermal expansion.

Weighing 23kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22232 CC/C3S2W33
  • Brand TFL
  • Interchangeable SKF
  • Size 160 x 290 x 80 mm
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 290 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 80 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 191 mm
  • Shoulder/Recess Dia Of Outer Ring 250 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 234476 lbf
  • Static Radial Load 290004 lbf
  • Max Speed 2800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 23 kg

Features

Performance Features of 22232 CC/C3S2W33 Bearing

22232 CC/C3S2W33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 234476 lbf, ensuring robust performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, maintaining smooth operation under stress.
With a maximum speed of 2800 rpm, it balances speed and durability for industrial use.

22232 CC/C3S2W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The steel cage ensures roller alignment, reducing wear and extending the bearing’s service life.

Application

Industrial Uses of 22232 CC/C3S2W33 Bearing
22232 CC/C3S2W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction helps compensate for misalignment, ensuring smooth operation in tough conditions.

Where Is 22232 CC/C3S2W33 Bearing Used?
In mining equipment, 22232 CC/C3S2W33 Bearing supports large rotating components, thanks to its robust chrome steel construction. The C3 radial clearance also allows for thermal expansion in high-temperature environments.

Built for Heavy-Duty Use: 22232 CC/C3S2W33 Bearing
This bearing excels in paper mill machinery, where its steel cage and lubrication grooves extend service life. The 290 mm outer diameter provides stability for large-scale industrial applications.

Automotive vs Aerospace: Applications of 22232 CC/C3S2W33 Bearing
While 22232 CC/C3S2W33 Bearing isn’t typical in aerospace, it’s ideal for heavy vehicles like trucks, handling combined loads in drivetrains. Its metric sizing ensures compatibility with global industrial standards.

Essential Roles of 22232 CC/C3S2W33 Bearing
In wind turbines, 22232 CC/C3S2W33 Bearing’s high dynamic load capacity (234,476 lbf) supports rotor shafts efficiently. The open design simplifies relubrication, crucial for remote maintenance.
