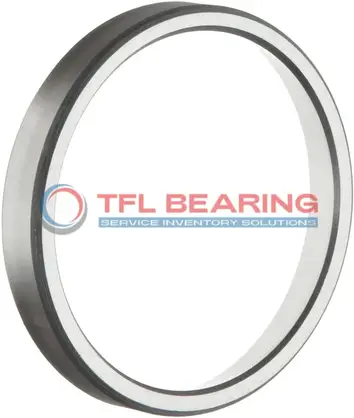

15250X Single Cups (Imperial)

15250X Single Cups (Imperial)

The 15250X is a single cup tapered roller bearing with a 2.5″ outer diameter and 0.625″ width, made from sturdy chrome steel. It fits well with various tapered roller cones, offering reliable performance in imperial measurements.

Its standard cup design ensures easy installation and compatibility with Timken equivalents. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

With an ABEC-1 rating, it provides good precision for general industrial use. The cup’s backface and frontface dimensions ensure proper alignment in assemblies.

Ideal for applications like wheel hubs or conveyor systems where tapered roller bearings are needed. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 15250X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.17" x 2.5" x 0.625"
  • Outer Dia 2.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.06"
  • Cup Frontface Backing Diameter 2.34"
  • Cup Backface Backing Diameter 2.17"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 15100-15250X , 15100-S-15250X , 15101-15250X , 15102-15250X , 15103-15250X , 15106-15250X , 15112-15250X , 15113-15250X , 15115-15250X , 15116-15250X , 15117-15250X , 15117X-15250X , 15118-15250X , 15119-15250X , 15120-15250X , 15120A-15250X , 15123-15250X , 15125-15250X , 15126-15250X
  • Cups Type Standard
  • Series 15000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is 15250X Bearing Engineered for Reliability?

15250X Bearing features chrome steel construction, ensuring durability and resistance to wear.
Its tapered roller design provides efficient load distribution, enhancing performance in various applications.

The standard cup type and precise dimensions (2.5″ outer diameter) ensure compatibility and easy installation.
With a temperature range of -30° to 110°C, it performs reliably in diverse environments.

15250X Bearing meets ABEC-1 standards, offering consistent quality and smooth operation.
Its compliance with RoHS and REACH regulations makes it a safe and environmentally friendly choice.

Application

Industrial Uses of 15250X Bearing
15250X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is 15250X Bearing Used?
You’ll often find 15250X Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a good fit for vehicles using imperial measurements.

Built for Heavy-Duty Use: 15250X Bearing
15250X Bearing works well in conveyor systems, providing reliable performance under continuous load. The standard cup design simplifies installation and maintenance.

Automotive vs Aerospace: Applications of 15250X Bearing
In automotive settings, 15250X Bearing supports wheel assemblies, while in aerospace, it’s used in landing gear components. Its temperature range suits both environments.

Key Fields for 15250X Bearing
15250X Bearing is a solid choice for industrial fans and pumps, where its ABEC-1 rating balances precision and cost-effectiveness. The tapered rollers ensure smooth rotation under load.
