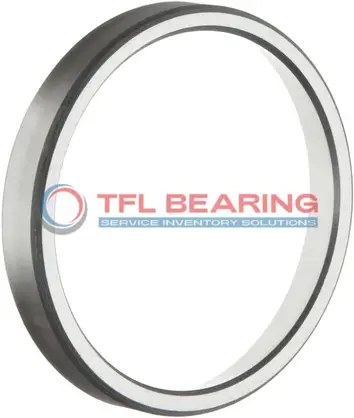

13836 Single Cups (Imperial)

13836 Single Cups (Imperial)

The 13836 is a single cup tapered roller bearing with an outer diameter of 2.5625 inches and a width of 0.375 inches, crafted from durable chrome steel. It fits well with tapered rollers and handles moderate speeds and loads efficiently.

Its standard cup design ensures easy installation and compatibility with Timken equivalents, making replacements straightforward. The bearing operates reliably in temperatures ranging from -30°C to 110°C.

This cup is part of the 13800 series and pairs with cones like 13889 and 13890 for complete bearing assemblies. Ideal for industrial machinery or automotive applications where tapered roller bearings are needed.

Compliant with RoHS and REACH standards, it offers a balance of strength and precision for everyday use. The ABEC-1 rating ensures consistent performance without over-engineering.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 13836
  • Brand TFL
  • Interchangeable Timken
  • Size 2.32" x 2.5625" x 0.375"
  • Outer Dia 2.5625"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.375"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.03"
  • Cup Frontface Backing Diameter 2.44"
  • Cup Backface Backing Diameter 2.32"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 13889-13836 , 13890-13836 , 13889-13836-B , 13890-13836-B
  • Cups Type Standard
  • Series 13800
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is 13836 Single Cup Engineered for Reliability?

13836 Single Cup is made from high-quality chrome steel, offering durability and resistance to wear.
Its precise dimensions ensure a perfect fit with compatible tapered roller bearings for smooth operation.

The cup’s standard design and ABEC-1 rating provide consistent performance in various applications.
With a temperature range of -30° to 110°C, it remains reliable in different working conditions.

The 13836 Single Cup is interchangeable with Timken models, offering flexibility and ease of replacement.
Its robust construction ensures long service life, reducing maintenance needs.

Application

Common Applications of 13836 Bearing
13836 Bearing is widely used in industrial machinery, especially in heavy-duty equipment like conveyor systems and gearboxes. Its tapered roller design handles both radial and axial loads efficiently, making it a versatile choice.

In automotive applications, 13836 Bearing supports wheel hubs and differential systems, where its chrome steel construction ensures durability. The inch sizing makes it compatible with many North American vehicle models.

For agricultural machinery, 13836 Bearing’s robust design withstands harsh conditions in tractors and harvesters. The standard cup type simplifies installation and maintenance in field equipment.

Where Is 13836 Bearing Used?
You’ll often find 13836 Bearing in construction equipment like bulldozers and cranes, where its tapered rollers manage heavy loads. The ABEC-1 rating ensures reliable performance without over-engineering.

In mining operations, 13836 Bearing excels in crushers and screening plants due to its resistance to shock loads. The chrome steel rings provide long service life even in abrasive environments.

Built for Heavy-Duty Use: 13836 Bearing
13836 Bearing is a go-to for forestry machinery, handling the uneven loads of log splitters and sawmills. Its temperature range (-30° to 110°C) suits both cold and hot working conditions.

In material handling systems, 13836 Bearing keeps overhead cranes and forklifts running smoothly. The interchangeable design with Timken bearings simplifies replacements.

Automotive vs Industrial: Applications of 13836 Bearing
For trucks and trailers, 13836 Bearing ensures reliable performance in wheel ends under constant vibration. The 2.5625″ outer diameter fits standard housings perfectly.

In steel mills, 13836 Bearing withstands extreme loads in rolling mills and continuous casters. The 0.375″ cup width provides stability without adding unnecessary bulk.
