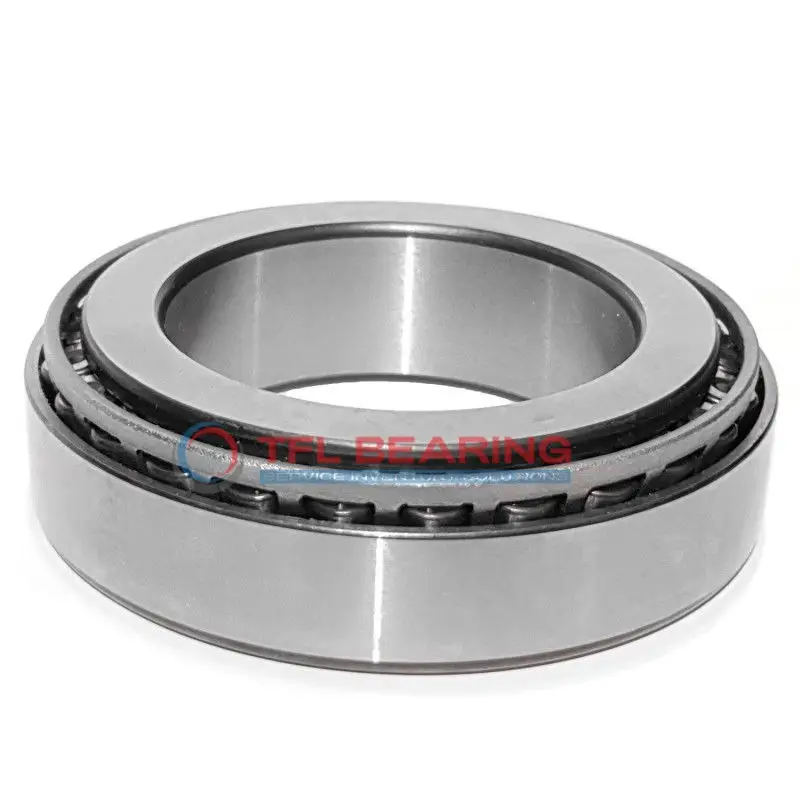

TS (Single Row Tapered Roller Bearings) (Metric) X32308-Y32308

TS (Single Row Tapered Roller Bearings) (Metric) X32308-Y32308

The 02474A-02420-B is a single row tapered roller bearing with a flange, measuring 1.18″ x 2.68″ x 0.87″. Made from durable chrome steel, it handles combined loads up to 14300 lbf radially and 2650 lbf thrust.

Its flanged cup design ensures secure mounting, while the open seal allows for easy lubrication. The steel cage provides stability, making it suitable for high-load applications.

This bearing is interchangeable with Timken models, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

With a temperature range of -30°C to 110°C and ABEC-1 rating, it balances performance and precision. Compliant with RoHS and REACH standards, it weighs just 1.3 lb for its size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number X32308-Y32308
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Metric
  • Type Bearing
  • Sizes 40 mm x 90 mm x 35.25 mm
  • Cone Part Number X32308
  • Cup Part Number Y32308
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Cone Width 33 mm
  • Cone Width Tolerance -0.1mm to 0
  • Cup Width 27 mm
  • Cup Width Tolerance -0.2mm to 0
  • Width 35.25 mm
  • Width Tolerance +0.2mm to 0
  • Cone Backface ToClear Radius 2.03 mm
  • Cup Backface ToClear Radius 1.52 mm
  • Cone Frontface Backing Diameter 51 mm
  • Cone Backface Backing Diameter 55 mm
  • Cup Frontface Backing Diameter 83.10 mm
  • Cup Backface Backing Diameter 77.98 mm
  • Cage Cone Frontface Clearance 2.8 mm
  • Cage Cone Backface Clearance 3.8 mm
  • Effective Center Location -11.9 mm
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 32308
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 29925 lbf
  • Static Radial Load 33750 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7785 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4590 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.20 lb

Features

How Does 02474A-02420-B Bearing Handle Combined Loads?

02474A-02420-B Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 14,300 lbf, making it suitable for demanding industrial applications.
The flanged cup design ensures secure mounting and alignment, reducing installation errors.
With a standard radial clearance, it provides reliable performance across various operating conditions.

What Ensures Smooth Operation in 02474A-02420-B Bearing?

02474A-02420-B Bearing features a steel cage that maintains proper roller spacing for smooth rotation.
The tapered roller design distributes loads evenly, minimising friction and wear.
Its chrome steel construction resists deformation under heavy loads, ensuring consistent performance.
The bearing operates efficiently within a temperature range of -30° to 110°C.

Structural Advantages of 02474A-02420-B Bearing

02474A-02420-B Bearing’s single row construction provides a compact solution for combined load applications.
The flanged cup offers additional mounting stability, particularly in axial load scenarios.
Precision-engineered clearances between components ensure optimal performance and longevity.
Its ABEC-1 rating confirms consistent quality for industrial use.

Application

Industrial Uses of 02474A-02420-B Bearing
02474A-02420-B Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The flanged cup adds stability, making it suitable for applications with axial movement.

In automotive systems, 02474A-02420-B Bearing fits well in wheel hubs and differentials, thanks to its robust chrome steel construction. Its inch sizing ensures compatibility with many North American vehicle models.

For industrial conveyors, 02474A-02420-B Bearing’s open design allows easy lubrication, extending service life in high-load environments. The steel cage provides durability, even under continuous operation.

What Makes 02474A-02420-B Bearing a Preferred Choice?
02474A-02420-B Bearing works reliably in mining equipment, where its tapered rollers manage heavy radial and thrust loads. The flange prevents misalignment, reducing wear over time.

In power transmission systems, 02474A-02420-B Bearing’s standard radial clearance ensures smooth performance. Its ABEC-1 rating balances precision and cost for general industrial use.
