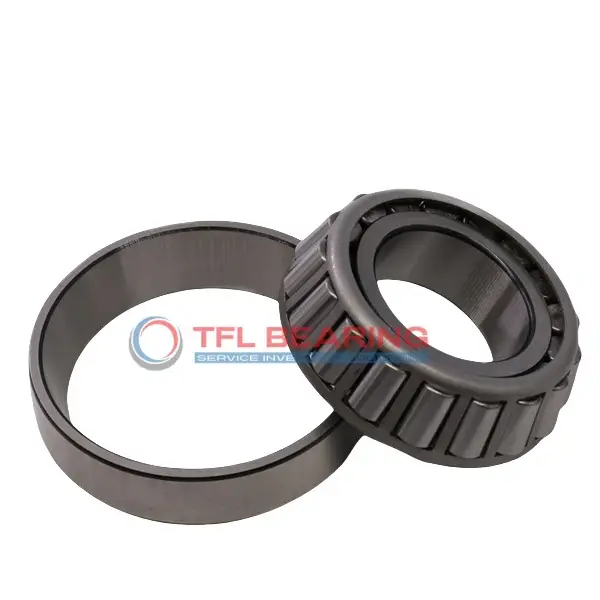

TS (Single Row Tapered Roller Bearings) (Metric) JP14049-JP14010

TS (Single Row Tapered Roller Bearings) (Metric) JP14049-JP14010

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JP14049-JP14010
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Metric
  • Type Bearing
  • Sizes 140 mm x 195 mm x 29 mm
  • Cone Part Number JP14049
  • Cup Part Number JP14010
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 195 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Cone Width 27 mm
  • Cone Width Tolerance -0.2mm to 0
  • Cup Width 21 mm
  • Cup Width Tolerance -0.25mm to 0
  • Width 29 mm
  • Width Tolerance +0.35mm to -0.25mm
  • Cone Backface ToClear Radius 3.05 mm
  • Cup Backface ToClear Radius 3.05 mm
  • Cone Frontface Backing Diameter 148 mm
  • Cone Backface Backing Diameter 153 mm
  • Cup Frontface Backing Diameter 189.99 mm
  • Cup Backface Backing Diameter 182.12 mm
  • Cage Cone Frontface Clearance 4.8 mm
  • Cage Cone Backface Clearance 2 mm
  • Effective Center Location 11.9 mm
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series JP14000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 45675 lbf
  • Static Radial Load 68400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11857.5 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 10215 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.07 lb
