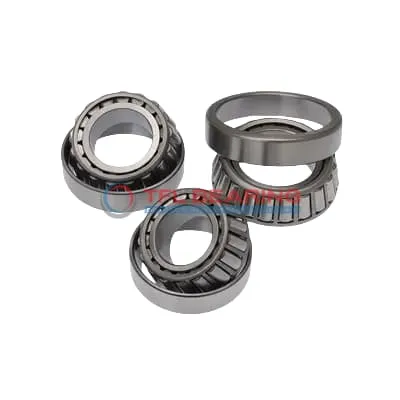

TS (Single Row Tapered Roller Bearings) (Imperial) M249732-M249710X

TS (Single Row Tapered Roller Bearings) (Imperial) M249732-M249710X

The M249732-M249710X is a single-row tapered roller bearing with a 9″ bore and 14.125″ outer diameter, crafted from robust chrome steel. It handles combined loads up to 206,000 lbf radially and 30,300 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or construction equipment where high radial and thrust loads are common.

Weighing 59.00 lb, it’s built for strength and longevity. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M249732-M249710X
  • Brand TFL
  • Interchangeable Timken
  • Size 9" x 14.125" x 2.8125"
  • Bore Dia 9"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 14.125"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 2.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.8125"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 11.06"
  • Cone Backface Backing Diameter 10.08"
  • Cup Frontface Backing Diameter 13.52"
  • Cup Backface Backing Diameter 13.19"
  • Cage Cone Frontface Clearance 0.17"
  • Cage Cone Backface Clearance 0.28"
  • Effective Center Location -0.27"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number M249732
  • Cup Part Number M249710X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series M249700
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 206000 lbf
  • Static Radial Load 416000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 53300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 30300 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 59.00 lb

Features

Performance Features of M249732-M249710X Bearing

M249732-M249710X Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 206,000 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures smooth operation and efficient load distribution.
With a static radial load of 416,000 lbf, it provides reliable stability in demanding conditions.

M249732-M249710X Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
The steel cage maintains roller alignment, reducing wear and extending service life.

This bearing requires lubrication but offers standard radial clearance options for flexibility.
Its ABEC-1 rating ensures consistent performance in various industrial applications.

Application

Industrial Uses of M249732-M249710X Bearing
M249732-M249710X Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in tough working conditions.

What Makes M249732-M249710X Bearing a Preferred Choice?
In automotive applications, M249732-M249710X Bearing supports large axles and wheel hubs, providing reliable performance under heavy loads. Its inch sizing makes it compatible with many North American industrial and automotive standards.

Built for Heavy-Duty Use: M249732-M249710X Bearing
For conveyor systems and material handling equipment, M249732-M249710X Bearing offers stability and long service life. The open design allows for easy lubrication, which is essential in high-load environments.

Automotive vs Aerospace: Applications of M249732-M249710X Bearing
While M249732-M249710X Bearing is popular in truck and bus axles, it also finds use in aerospace ground support equipment. Its high static radial load capacity makes it suitable for both sectors.

Perfect Fit for Automation: M249732-M249710X Bearing
In automated production lines, M249732-M249710X Bearing ensures smooth operation of heavy rotating components. The steel cage provides added strength, reducing maintenance needs over time.
