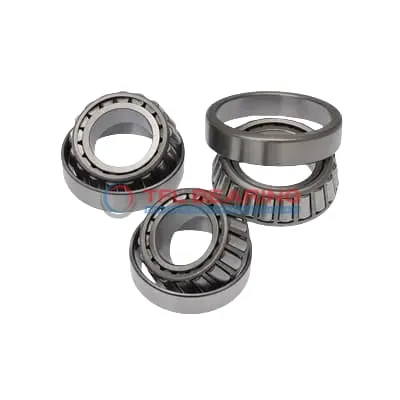

TS (Single Row Tapered Roller Bearings) (Imperial) M246942-M246910

TS (Single Row Tapered Roller Bearings) (Imperial) M246942-M246910

The M246942-M246910 is a single-row tapered roller bearing with a 9.125″ bore and 13.25″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 177,000 lbf radially and 26,200 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or heavy equipment where robust performance is needed.

Weighing 40.8 lb, it’s designed for stability and long service life. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M246942-M246910
  • Brand TFL
  • Interchangeable Timken
  • Size 9.125" x 13.25" x 2.5625"
  • Bore Dia 9.125"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 13.25"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 2.5625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.5625"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 10.94"
  • Cone Backface Backing Diameter 10.16"
  • Cup Frontface Backing Diameter 12.70"
  • Cup Backface Backing Diameter 12.32"
  • Cage Cone Frontface Clearance 0.18"
  • Cage Cone Backface Clearance 0.17"
  • Effective Center Location -0.19"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number M246942
  • Cup Part Number M246910
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series M246900
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 177000 lbf
  • Static Radial Load 352000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 46000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 26200 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 40.800 lb

Features

How Is M246942-M246910 Bearing Engineered for Reliability?

M246942-M246910 Bearing features chrome steel rings and rollers, providing robust resistance to combined loads.
Its dynamic radial load capacity reaches 177,000 lbf, ensuring dependable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Structural Advantages of M246942-M246910 Bearing

M246942-M246910 Bearing’s single-row tapered design offers efficient load distribution, enhancing durability.
The standard radial clearance allows for smooth operation under varying thermal conditions.
Its chrome steel construction resists wear, making it suitable for high-load scenarios.
The open seal type simplifies maintenance while ensuring consistent performance.

Why Choose M246942-M246910 Bearing for Precision Tasks?

M246942-M246910 Bearing’s precise cone and cup dimensions ensure accurate alignment in machinery.
The effective center location of -0.19″ optimises load handling and reduces stress.
With an ABEC-1 rating, it balances precision and affordability for industrial use.
The required lubrication system enhances longevity without complicating maintenance.

Application

Industrial Uses of M246942-M246910 Bearing
M246942-M246910 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is M246942-M246910 Bearing Used?
You’ll often find M246942-M246910 Bearing in large industrial gearboxes, where its high dynamic radial load capacity keeps operations smooth. Its inch sizing makes it a go-to choice for American-made machinery.

Built for Heavy-Duty Use: M246942-M246910 Bearing
M246942-M246910 Bearing excels in mining applications, thanks to its robust steel cage and tapered rollers. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of M246942-M246910 Bearing
In automotive systems, M246942-M246910 Bearing supports heavy axles and drivetrains, while in aerospace, it’s used in landing gear assemblies. Its ABEC-1 rating ensures reliable performance in both fields.

Essential Roles of M246942-M246910 Bearing
M246942-M246910 Bearing is vital in paper mills, where it handles high loads and speeds. The standard radial clearance option makes it adaptable to various industrial setups.
