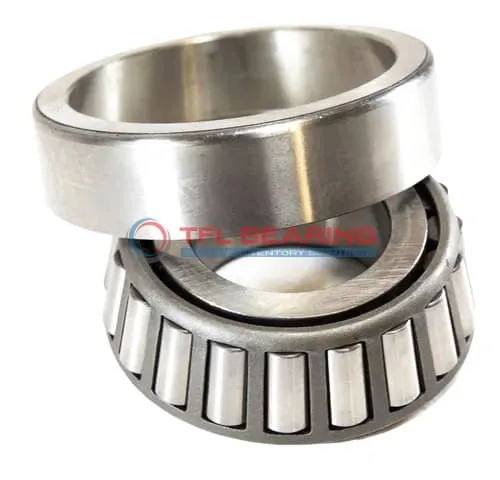

TS (Single Row Tapered Roller Bearings) (Imperial) M241547V-M241510

TS (Single Row Tapered Roller Bearings) (Imperial) M241547V-M241510

The M241547V-M241510 is a single-row tapered roller bearing with an 8″ bore and 11.5″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 169,000 lbf radially and 25,000 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where robust performance is needed.

Weighing 95.40 lb, it’s built to last and complies with RoHS and REACH standards for safe use. The standard radial clearance can be adjusted to C3, C4, or C5 if required.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M241547V-M241510
  • Brand TFL
  • Interchangeable Timken
  • Size 8" x 11.5" x 2.2813"
  • Bore Dia 8"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 11.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.2813"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.2813"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 9.57"
  • Cone Backface Backing Diameter 8.7"
  • Cup Frontface Backing Diameter 11.02"
  • Cup Backface Backing Diameter 10.71"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.16"
  • Effective Center Location -0.19"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number M241547V
  • Cup Part Number M241510
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series M241500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 169000 lbf
  • Static Radial Load 263000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 43900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 25000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 95.40 lb

Features

How Does M241547V-M241510 Bearing Handle Combined Loads?

M241547V-M241510 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 169,000 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

What Makes M241547V-M241510 Bearing Durable?

M241547V-M241510 Bearing’s chrome steel construction provides excellent wear resistance, enhancing its longevity.
The tapered roller design distributes loads evenly, reducing stress on individual components.
Its standard radial clearance ensures smooth operation, even under combined load conditions.
Weighing 95.40 lb, it is robust yet efficient for industrial applications.

Engineered for Precision: M241547V-M241510 Bearing

M241547V-M241510 Bearing features precise tolerances, with bore and outer diameter tolerances of +0.001″ to 0.
The effective center location of -0.19″ ensures accurate alignment in machinery.
Its ABEC-1 rating guarantees consistent performance for general precision applications.
The open seal design allows for easy lubrication, maintaining optimal performance.

Steel vs Ceramic Bearings: Strengths of M241547V-M241510 Bearing

M241547V-M241510 Bearing uses chrome steel for both rings and rollers, providing a balance of strength and cost-effectiveness.
The steel cage offers durability and reliable performance in demanding environments.
With a static radial load capacity of 263,000 lbf, it handles heavy loads with ease.
Its compatibility with Timken bearings makes it a versatile choice for replacements.

Performance Features of M241547V-M241510 Bearing

M241547V-M241510 Bearing’s single-row tapered design ensures efficient load distribution and reduced friction.
The dynamic thrust rating of 25,000 lbf at 90 million revolutions highlights its long-term reliability.
Its standard radial clearance options (C3/C4/C5) allow for flexibility in different applications.
The required lubrication ensures smooth operation and extended service life.

Application

Industrial Uses of M241547V-M241510 Bearing
M241547V-M241510 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

In automotive applications, M241547V-M241510 Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. Its inch sizing makes it a preferred choice for American-made vehicles.

For industrial conveyor systems, M241547V-M241510 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear over time.

Where Is M241547V-M241510 Bearing Used?
You’ll often find M241547V-M241510 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design handles uneven loads. The standard radial clearance ensures smooth rotation even in dusty environments.

In railway applications, M241547V-M241510 Bearing supports axle boxes, offering reliable performance under constant vibration. Its ABEC-1 rating provides sufficient precision for most rail transport needs.

Built for Heavy-Duty Use: M241547V-M241510 Bearing
M241547V-M241510 Bearing excels in forestry equipment like log loaders, where its tapered rollers manage heavy loads effortlessly. The chrome steel rollers resist deformation under pressure.

For oil and gas drilling rigs, M241547V-M241510 Bearing’s high dynamic radial load capacity ensures stability in demanding conditions. The steel cage prevents roller misalignment during intense operations.

Automotive vs Aerospace: Applications of M241547V-M241510 Bearing
In automotive settings, M241547V-M241510 Bearing is ideal for heavy-duty trucks, balancing radial and thrust loads in wheel assemblies. Its inch measurements align with standard US vehicle specs.

While not typically used in aerospace, M241547V-M241510 Bearing suits ground support equipment like aircraft tugs. The temperature range covers most operational environments without issue.
