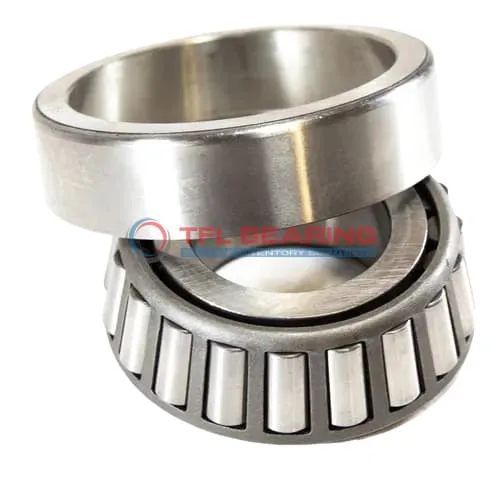

TS (Single Row Tapered Roller Bearings) (Imperial) M241547A-M241510

The M241547A-M241510 is a single-row tapered roller bearing with an 8″ bore and 11.5″ outer diameter, crafted from robust chrome steel. It manages combined loads up to 143,000 lbf radially and 21,100 lbf thrust, suitable for heavy-duty applications.

Its open design allows easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

Interchangeable with Timken bearings, it’s a practical choice for replacements in industrial settings. Ideal for machinery like gearboxes or conveyors where combined loads are common.

Weighing 26.4 lb, it’s built for strength and reliability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number M241547A-M241510
Brand TFL
Interchangeable Timken
Size 8" x 11.5" x 2.2813"
Bore Dia 8"
Bore Dia Tolerance +0.001" to 0
Outer Dia 11.5"
Outer Dia Tolerance +0.001" to 0
Cone Width 2.2813"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.8125"
Cup Width Tolerance +0.002" to -0.01
Width 2.2813"
Width Tolerance +0.014" to -0.01"
Cone Backface ToClear Radius 0.380"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 9.57"
Cone Backface Backing Diameter 9.21"
Cup Frontface Backing Diameter 11.02"
Cup Backface Backing Diameter 10.71"
Cage Cone Frontface Clearance 0.12"
Cage Cone Backface Clearance 0.16"
Effective Center Location -0.19"
System of Measurement Inch
Type Bearing
Cone Part Number M241547A
Cup Part Number M241510
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series M241500
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 143000 lbf
Static Radial Load 263000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 37000 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 21100 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 26.4 lb

Features

Performance Features of M241547A-M241510 Bearing

M241547A-M241510 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 143,000 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures effective load distribution, reducing stress on individual components.
With a static radial load of 263,000 lbf, it provides reliable stability in demanding conditions.

M241547A-M241510 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility in various environments.
The steel cage maintains roller alignment, enhancing durability and smooth operation.

Its standard radial clearance and ABEC-1 rating balance precision and ease of use.
The open design allows for easy lubrication, supporting consistent performance over time.

Application

Industrial Uses of M241547A-M241510 Bearing
M241547A-M241510 Bearing is commonly used in heavy machinery like construction equipment and mining drills, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

In automotive applications, M241547A-M241510 Bearing supports axle systems and wheel hubs, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it a good fit for North American vehicle models.

For industrial conveyor systems, M241547A-M241510 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds extra strength to withstand heavy loads.

Where Is M241547A-M241510 Bearing Used?
M241547A-M241510 Bearing can be found in agricultural machinery, such as tractors and harvesters, where its robust design copes with dusty environments. The standard radial clearance ensures smooth rotation even under varying loads.

In railway applications, M241547A-M241510 Bearing is used in bogies and drivetrains, offering stability and reducing wear over long distances. The ABEC-1 rating provides sufficient precision for these demanding uses.

Built for Heavy-Duty Use: M241547A-M241510 Bearing
M241547A-M241510 Bearing excels in wind turbine gearboxes, where its tapered rollers manage both radial and axial forces. The temperature range of -30° to 110°C ensures performance in diverse climates.

For oil and gas equipment, M241547A-M241510 Bearing’s chrome steel rollers resist corrosion and wear in harsh environments. The dynamic load capacity of 143,000 lbf makes it suitable for high-stress applications.

Automotive vs Aerospace: Applications of M241547A-M241510 Bearing
In automotive systems, M241547A-M241510 Bearing is ideal for heavy trucks and buses, handling large loads with ease. The imperial measurements simplify replacement in existing setups.

For aerospace ground support equipment, M241547A-M241510 Bearing provides reliable performance in load-handling machinery. Its steel cage and chrome steel rollers ensure longevity under frequent use.
