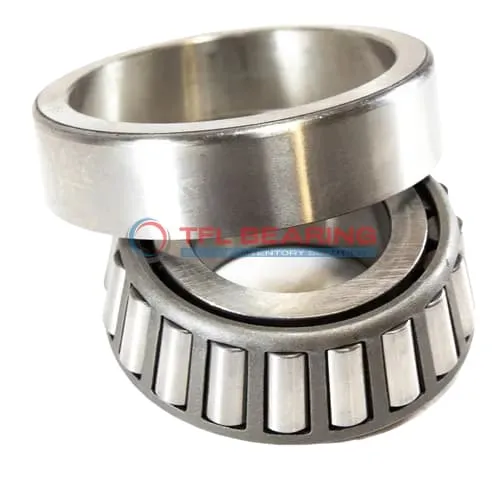

TS (Single Row Tapered Roller Bearings) (Imperial) H242649-H242610

The H242649-H242610 is a single-row tapered roller bearing with an 8.125″ bore and 13.25″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 305,000 lbf radially and 45,000 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or large equipment where robust performance is needed.

Weighing 73.2 lb, it’s a solid choice for demanding environments. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number H242649-H242610
Brand TFL
Interchangeable Timken
Size 8.125" x 13.25" x 3.875"
Bore Dia 8.125"
Bore Dia Tolerance +0.001" to 0
Outer Dia 13.25"
Outer Dia Tolerance +0.002" to 0
Cone Width 3.9375"
Cone Width Tolerance +0.003" to -0.01
Cup Width 3.0625"
Cup Width Tolerance +0.002" to -0.01
Width 3.875"
Width Tolerance +0.014" to -0.01"
Cone Backface ToClear Radius 0.13"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 10.04"
Cone Backface Backing Diameter 9.09"
Cup Frontface Backing Diameter 12.52"
Cup Backface Backing Diameter 12.05"
Cage Cone Frontface Clearance 0.12"
Cage Cone Backface Clearance 0.41"
Effective Center Location -0.01"
System of Measurement Inch
Type Bearing
Cone Part Number H242649
Cup Part Number H242610
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series H242600
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 305000 lbf
Static Radial Load 522000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 79000 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 45000 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 73.2 lb

Features

How Is H242649-H242610 Bearing Engineered for Reliability?

H242649-H242610 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 305,000 lbf, ensuring dependable performance in heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

What Makes H242649-H242610 Bearing Suitable for High-Temperature Applications?

H242649-H242610 Bearing withstands temperatures up to 110°C, making it ideal for demanding environments.
The chrome steel construction ensures durability and resistance to wear under high thermal stress.
Its standard radial clearance allows for smooth operation even when exposed to heat fluctuations.
The open design facilitates proper lubrication, further enhancing its high-temperature performance.

Built for Durability: H242649-H242610 Bearing

H242649-H242610 Bearing features a single-row tapered roller design, optimised for long-lasting use.
The chrome steel components resist wear, maintaining performance under heavy radial and thrust loads.
With a static radial load capacity of 522,000 lbf, it handles extreme conditions with ease.
Its robust construction ensures minimal maintenance, reducing downtime and operational costs.

Steel vs Ceramic Bearings: Strengths of H242649-H242610 Bearing

H242649-H242610 Bearing uses chrome steel for both rollers and rings, providing excellent strength and durability.
This material choice ensures reliable performance under high dynamic and static loads.
The steel cage design enhances stability, keeping rollers aligned during operation.
Compared to ceramic options, it offers a cost-effective solution without compromising on load capacity.

Application

Industrial Uses of H242649-H242610 Bearing
H242649-H242610 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in harsh operating conditions.

In automotive applications, H242649-H242610 Bearing supports large axles and wheel hubs, providing stability under heavy loads. Its inch sizing makes it compatible with many North American industrial and automotive standards.

For wind turbine systems, H242649-H242610 Bearing’s high dynamic radial load capacity makes it suitable for main shaft support. The open design allows for easy lubrication, extending service life in remote installations.

Where Is H242649-H242610 Bearing Used?
You’ll often find H242649-H242610 Bearing in railway freight car axles, where its tapered rollers manage both radial and thrust forces. The steel cage provides reliable performance over long distances.

In agricultural machinery, H242649-H242610 Bearing withstands the dusty conditions of harvesters and tractors. Its standard radial clearance accommodates thermal expansion during continuous operation.

Built for Heavy-Duty Use: H242649-H242610 Bearing
H242649-H242610 Bearing excels in steel mill applications like rolling mill stands, where extreme loads are common. The ABEC-1 rating offers practical precision for industrial environments.

Its 13.25″ outer diameter makes H242649-H242610 Bearing ideal for large industrial gearboxes. The Timken-interchangeable design simplifies maintenance and replacements.

Automotive vs Aerospace: Applications of H242649-H242610 Bearing
In truck differentials, H242649-H242610 Bearing handles high torque loads reliably. While not typically used in aerospace, its 73.2 lb weight suits ground-based heavy equipment perfectly.

The bearing’s 3.875″ width provides stable support for industrial pump shafts. Its temperature range covers most operating conditions without special modifications.

What Makes H242649-H242610 Bearing a Preferred Choice?
Maintenance teams appreciate H242649-H242610 Bearing’s straightforward lubrication requirements in paper mill machinery. The chrome steel rollers maintain performance despite moisture exposure.

For power generation equipment, H242649-H242610 Bearing’s 305,000 lbf dynamic load rating ensures dependable operation. The standard radial clearance accommodates thermal expansion during continuous use.
