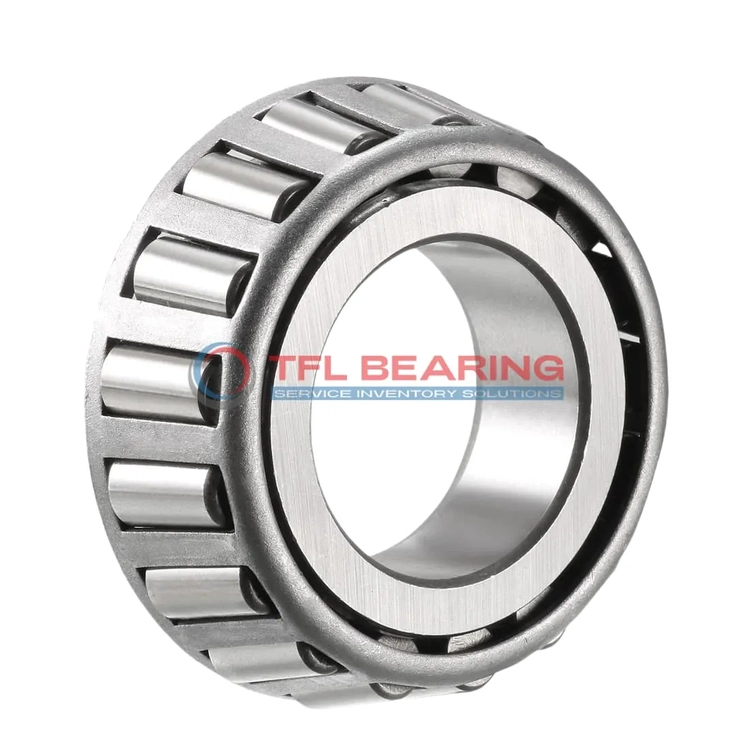

TS (Single Row Tapered Roller Bearings) (Imperial) M224748-M224713A

TS (Single Row Tapered Roller Bearings) (Imperial) M224748-M224713A

The M224748-M224713A is a single-row tapered roller bearing with a 4.7234″ bore and 6.7812″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 54900 lbf radially and 8110 lbf thrust, suitable for heavy-duty applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 5.6 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets essential safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M224748-M224713A
  • Brand TFL
  • Interchangeable Timken
  • Size 4.7234" x 6.7812" x 1.4064"
  • Bore Dia 4.7234"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6.7812"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0938"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4064"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 6.05"
  • Cone Backface Backing Diameter 5.28"
  • Cup Frontface Backing Diameter 6.61"
  • Cup Backface Backing Diameter 6.3"
  • Cage Cone Frontface Clearance 0.04"
  • Cage Cone Backface Clearance 0.14"
  • Effective Center Location -0.14"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number M224748
  • Cup Part Number M224713A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series M224700
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 54900 lbf
  • Static Radial Load 94900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 14200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8110 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.6 lb

Features

Performance Features of M224748-M224713A Bearing

M224748-M224713A Bearing is crafted from chrome steel, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 54,900 lbf, making it suitable for heavy-duty applications.
The tapered roller design ensures efficient load distribution, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

How Is M224748-M224713A Bearing Engineered for Reliability?

M224748-M224713A Bearing features a single-row tapered roller design, ideal for handling both radial and thrust loads.
The chrome steel construction enhances durability, while the steel cage maintains roller alignment.
Its dynamic thrust rating of 8,110 lbf ensures consistent performance under demanding conditions.
The standard radial clearance option provides flexibility for different applications.

Built for Durability: M224748-M224713A Bearing

M224748-M224713A Bearing is designed to withstand heavy loads with a static radial load capacity of 94,900 lbf.
The precise cone and cup dimensions ensure smooth operation and easy installation.
Its ABEC-1 rating guarantees reliable performance for industrial applications.
The open seal type allows for easy lubrication, maintaining optimal performance over time.

Steel vs Ceramic Bearings: Strengths of M224748-M224713A Bearing

M224748-M224713A Bearing uses chrome steel for both rings and rollers, providing excellent strength and wear resistance.
The steel cage ensures stability and reduces friction during operation.
With a dynamic radial rating of 14,200 lbf at 90 million revolutions, it offers long-lasting reliability.
The standard radial clearance and lubrication requirements make it versatile for various uses.

Application

Industrial Uses of M224748-M224713A Bearing
M224748-M224713A Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is M224748-M224713A Bearing Used?
You’ll often find M224748-M224713A Bearing in automotive axles and gearboxes, where its high load capacity and precise tolerances improve performance. Its inch sizing makes it a reliable choice for North American and UK machinery standards.

Built for Heavy-Duty Use: M224748-M224713A Bearing
M224748-M224713A Bearing excels in industrial fans and pumps, thanks to its robust steel cage and open design for easy lubrication. The ABEC-1 rating ensures consistent performance without overcomplicating maintenance.

Automotive vs Aerospace: Applications of M224748-M224713A Bearing
In automotive systems, M224748-M224713A Bearing supports wheel hubs and transmissions, while in aerospace, it’s trusted for landing gear components. The temperature range of -30° to 110°C suits both applications well.

Perfect Fit for Automation: M224748-M224713A Bearing
M224748-M224713A Bearing works smoothly in conveyor systems and robotic arms, where its tapered rollers reduce friction. The standard radial clearance options make it adaptable for various precision needs.
