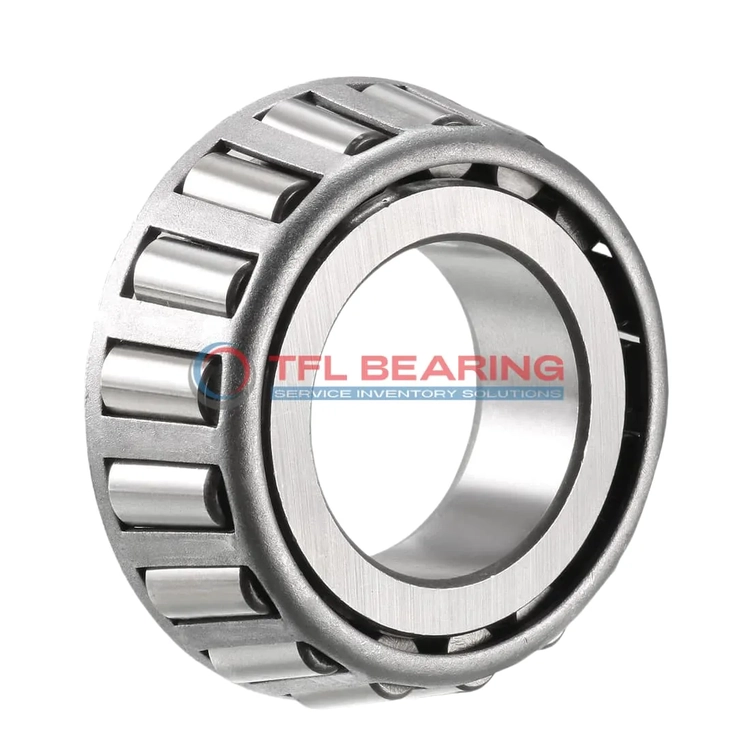

TS (Single Row Tapered Roller Bearings) (Imperial) M224748-M224710

TS (Single Row Tapered Roller Bearings) (Imperial) M224748-M224710

The M224748-M224710 is a single-row tapered roller bearing with a 4.7234″ bore and 6.875″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 54900 lbf radially and 8110 lbf in thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 6 lb, it offers a robust build for its size. Compliant with RoHS and REACH standards, it’s a reliable option for various engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M224748-M224710
  • Brand TFL
  • Interchangeable Timken
  • Size 4.7234" x 6.875" x 1.4063"
  • Bore Dia 4.7234"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0938"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4063"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 6.05"
  • Cone Backface Backing Diameter 5.28"
  • Cup Frontface Backing Diameter 6.65"
  • Cup Backface Backing Diameter 6.38"
  • Cage Cone Frontface Clearance 0.04"
  • Cage Cone Backface Clearance 0.14"
  • Effective Center Location -0.14"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number M224748
  • Cup Part Number M224710
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series M224700
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 54900 lbf
  • Static Radial Load 94900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 14200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8110 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 6 lb

Features

How Is M224748-M224710 Bearing Engineered for Reliability?

M224748-M224710 Bearing features chrome steel rings and rollers, ensuring strong resistance to combined loads.
Its dynamic radial load capacity reaches 54,900 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Performance Features of M224748-M224710 Bearing

M224748-M224710 Bearing is designed with precise tolerances, offering consistent performance under combined loads.
The tapered roller design distributes loads evenly, enhancing durability and reducing wear.
Its static radial load capacity of 94,900 lbf ensures stability in demanding conditions.
The standard radial clearance option provides flexibility for different application needs.

Why Choose M224748-M224710 Bearing for Precision Tasks?

M224748-M224710 Bearing’s single-row construction ensures accurate load distribution and smooth operation.
The chrome steel components resist wear, maintaining precision over extended periods.
With an ABEC-1 rating, it meets standard precision requirements for various industrial uses.
The open design allows for easy lubrication, ensuring consistent performance.

Application

Industrial Uses of M224748-M224710 Bearing
M224748-M224710 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, M224748-M224710 Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high stress. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial gearboxes, M224748-M224710 Bearing’s standard radial clearance and ABEC-1 rating offer consistent operation. The steel cage adds stability, making it suitable for long-term use in high-load scenarios.

Where Is M224748-M224710 Bearing Used?
M224748-M224710 Bearing finds its place in agricultural machinery, particularly in tractor transmissions and harvesters. Its robust design handles the varying loads typical in farming operations.

The bearing also supports conveyor systems in manufacturing plants, where its tapered rollers manage both radial and axial forces smoothly. Maintenance is straightforward thanks to its open seal type.

Built for Heavy-Duty Use: M224748-M224710 Bearing
M224748-M224710 Bearing excels in railway applications, such as axle boxes, where its combined load capacity is crucial. The temperature range ensures performance in diverse climates.

In wind turbine gearboxes, M224748-M224710 Bearing’s dynamic radial load rating of 54,900 lbf makes it a dependable choice. The steel cage and chrome steel rollers enhance its lifespan.

Automotive vs Aerospace: Applications of M224748-M224710 Bearing
In automotive settings, M224748-M224710 Bearing is ideal for heavy-duty trucks and buses, offering reliable load handling. Its imperial measurements align with standard US components.

For aerospace ground equipment, M224748-M224710 Bearing supports maintenance tools and loading systems. The ABEC-1 rating ensures precision without over-engineering for these applications.
