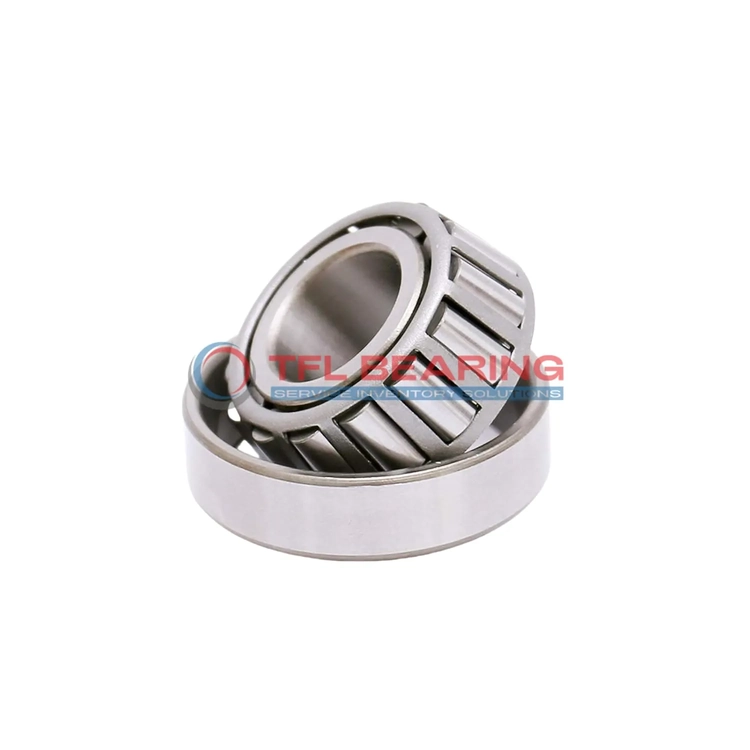

TS (Single Row Tapered Roller Bearings) (Imperial) LM67049A-LM67014

The LM67049A-LM67014 is a single-row tapered roller bearing with a 1.25″ bore and 2.4404″ outer diameter, crafted from durable chrome steel. It handles combined loads, supporting up to 10500 lbf radially and 1920 lbf in thrust.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation. The bearing performs well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for applications like automotive axles or industrial gearboxes where combined loads are common.

Weighing just 0.5 lb, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number LM67049A-LM67014
Brand TFL
Interchangeable Timken
Size 1.25" x 2.4404" x 0.625"
Bore Dia 1.25"
Bore Dia Tolerance +0.005" to 0
Outer Dia 2.4404"
Outer Dia Tolerance +0.001" to 0
Cone Width 0.66"
Cone Width Tolerance +0.003" to -0.01
Cup Width 0.465"
Cup Width Tolerance +0.002" to -0.01
Width 0.625"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.03"
Cup Backface ToClear Radius 0.050"
Cone Frontface Backing Diameter 1.42"
Cone Backface Backing Diameter 1.46"
Cup Frontface Backing Diameter 2.26"
Cup Backface Backing Diameter 2.13"
Cage Cone Frontface Clearance 0.05"
Cage Cone Backface Clearance 0.01"
Effective Center Location -0.12"
System of Measurement Inch
Type Bearing
Cone Part Number LM67049A
Cup Part Number LM67014
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series LM67000
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 10500 lbf
Static Radial Load 10000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 2720 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1920 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 0.5 lb

Features

Performance Features of LM67049A-LM67014 Bearing

LM67049A-LM67014 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 10,500 lbf, ensuring reliable operation in various applications.

The tapered roller design distributes loads evenly, reducing stress and extending service life.
With a standard radial clearance, it provides smooth performance under different conditions.

LM67049A-LM67014 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, enhancing durability and reducing maintenance needs.

The open design simplifies lubrication, ensuring consistent performance over time.
Weighing just 0.5 lb, it balances strength and ease of handling.

Application

Common Applications of LM67049A-LM67014 Bearing
In industrial settings, LM67049A-LM67014 Bearing is a go-to for heavy machinery like conveyor systems and gearboxes, where its tapered roller design handles combined loads effortlessly. The chrome steel construction ensures longevity even in demanding environments.

For automotive use, LM67049A-LM67014 Bearing fits well in wheel hubs and drivetrains, offering reliable performance under both radial and thrust loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

In automation equipment, LM67049A-LM67014 Bearing supports precise motion control in robotic arms and assembly lines. The steel cage adds durability, making it suitable for high-speed operations.

LM67049A-LM67014 Bearing also finds its place in agricultural machinery, where its robust design withstands harsh conditions like dust and heavy loads. The open seal type allows for easy lubrication, extending its service life.
