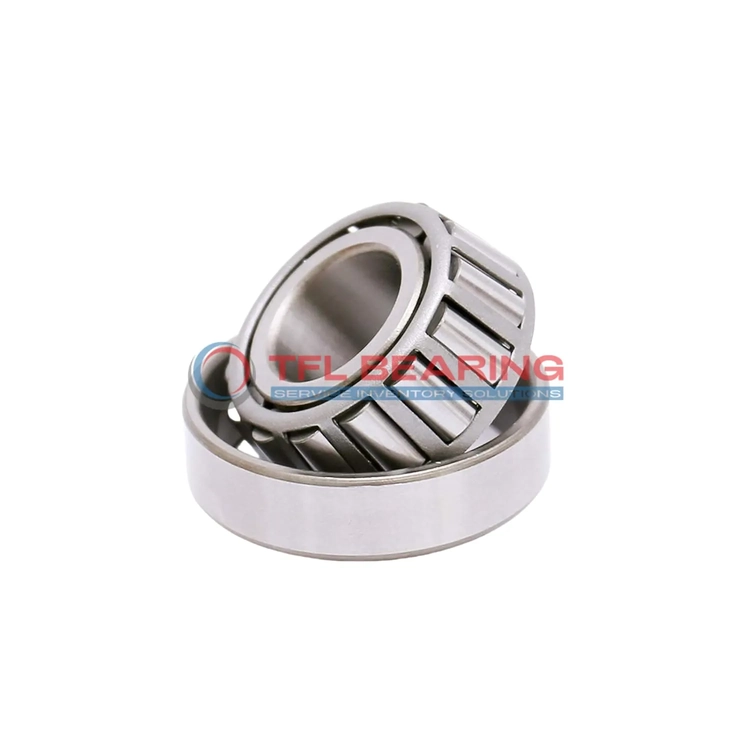

TS (Single Row Tapered Roller Bearings) (Imperial) LM67048-LM67014

The LM67048-LM67014 is a single row tapered roller bearing with a 1.25″ bore and 2.4404″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 10500 lbf radially and 1920 lbf in thrust, suitable for moderate-speed applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are present.

Weighing just 0.4 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements. The ABEC-1 rating ensures consistent performance for general applications.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number LM67048-LM67014
Brand TFL
Interchangeable Timken
Size 1.25" x 2.4404" x 0.625"
Bore Dia 1.25"
Bore Dia Tolerance +0.005" to 0
Outer Dia 2.4404"
Outer Dia Tolerance +0.001" to 0
Cone Width 0.66"
Cone Width Tolerance +0.003" to -0.01
Cup Width 0.465"
Cup Width Tolerance +0.002" to -0.01
Width 0.625"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.14"
Cup Backface ToClear Radius 0.050"
Cone Frontface Backing Diameter 1.42"
Cone Backface Backing Diameter 1.67"
Cup Frontface Backing Diameter 2.26"
Cup Backface Backing Diameter 2.13"
Cage Cone Frontface Clearance 0.05"
Cage Cone Backface Clearance 0.01"
Effective Center Location -0.12"
System of Measurement Inch
Type Bearing
Cone Part Number LM67048
Cup Part Number LM67014
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series LM67000
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 10500 lbf
Static Radial Load 10000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 2720 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1920 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 0.4 lb

Features

Engineered for Precision: LM67048-LM67014 Bearing

LM67048-LM67014 Bearing features a single row tapered roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.
With a dynamic radial load capacity of 10,500 lbf, it provides reliable performance under heavy loads.
The standard radial clearance and ABEC-1 rating make it suitable for various precision tasks.

How Does LM67048-LM67014 Bearing Resist Wear?

LM67048-LM67014 Bearing is built with chrome steel rollers and rings, enhancing its resistance to wear.
The steel cage maintains proper roller alignment, reducing friction and prolonging service life.
It operates efficiently within a temperature range of -30° to 110°C, ensuring consistent performance.
Regular lubrication further enhances its durability and operational reliability.

Structural Advantages of LM67048-LM67014 Bearing

LM67048-LM67014 Bearing’s tapered roller design distributes loads evenly, minimising stress on individual components.
Its precise dimensions, including a 1.25″ bore and 2.4404″ outer diameter, ensure accurate fitment.
The bearing’s effective center location of -0.12″ optimises load distribution for smoother operation.
Open seal type allows for easy lubrication and maintenance, extending its useful life.

Why Choose LM67048-LM67014 Bearing for Combined Loads?

LM67048-LM67014 Bearing excels in applications requiring both radial and thrust load handling.
Its dynamic thrust rating of 1,920 lbf ensures reliable performance under varying load conditions.
The bearing’s standard radial clearance options (C3/C4/C5) provide flexibility for different applications.
Compliant with RoHS and REACH standards, it meets international environmental and safety requirements.

Application

Industrial Uses of LM67048-LM67014 Bearing
LM67048-LM67014 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is LM67048-LM67014 Bearing Used?
You’ll often find LM67048-LM67014 Bearing in automotive applications like wheel hubs and differential systems, thanks to its ability to manage both radial and thrust loads. Its inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: LM67048-LM67014 Bearing
LM67048-LM67014 Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of LM67048-LM67014 Bearing
In automotive settings, LM67048-LM67014 Bearing supports transmissions and axles, while in aerospace, it’s used in landing gear systems. Its ABEC-1 rating ensures consistent performance across different industries.

Perfect Fit for Automation: LM67048-LM67014 Bearing
LM67048-LM67014 Bearing is ideal for robotic arms and conveyor systems, where precision and load capacity are key. The standard radial clearance option makes it versatile for various automation needs.
