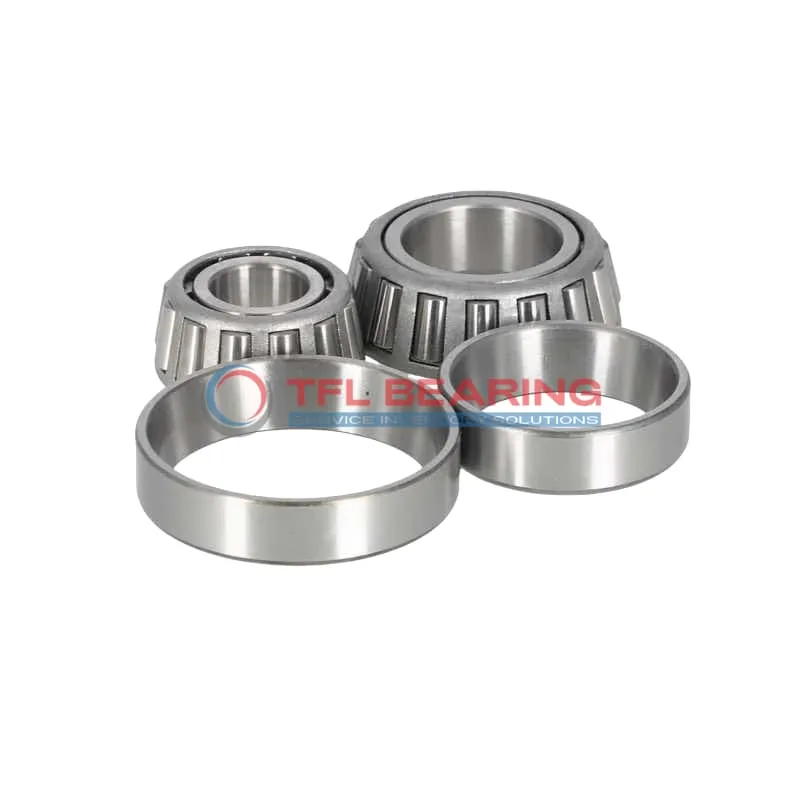

TS (Single Row Tapered Roller Bearings) (Imperial) LM654649-LM654610

TS (Single Row Tapered Roller Bearings) (Imperial) LM654649-LM654610

The LM654649-LM654610 is a single-row tapered roller bearing with an 11.25″ bore and 14.996″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 162,000 lbf radially and 31,100 lbf thrust, suitable for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for industrial machinery or large equipment where high radial and thrust loads are expected.

Weighing 43.2 lb, it’s built to handle demanding conditions while complying with RoHS and REACH standards. The standard radial clearance can also be adjusted to C3, C4, or C5 if needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LM654649-LM654610
  • Brand TFL
  • Interchangeable Timken
  • Size 11.25" x 14.996" x 2.5625"
  • Bore Dia 11.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 14.996"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 2.5625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.5625"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 13.07"
  • Cone Backface Backing Diameter 12.05"
  • Cup Frontface Backing Diameter 14.53"
  • Cup Backface Backing Diameter 14.02"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.27"
  • Effective Center Location 0.45"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number LM654649
  • Cup Part Number LM654610
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series LM654600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 162000 lbf
  • Static Radial Load 387000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 42100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 31100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 43.200 lb

Features

Performance Features of LM654649-LM654610 Bearing

LM654649-LM654610 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 162,000 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it provides reliable performance in various industrial settings.

LM654649-LM654610 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its tapered roller design handles both radial and thrust loads, ensuring versatility in demanding conditions.

The open seal type allows for easy lubrication, maintaining smooth operation over time.
Weighing 43.200 lb, it balances durability and functionality for long-term use.

Application

Industrial Uses of LM654649-LM654610 Bearing
LM654649-LM654610 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability in tough working conditions.

Where Is LM654649-LM654610 Bearing Used?
You’ll often find LM654649-LM654610 Bearing in agricultural machinery, such as tractors and harvesters, where its high static radial load capacity supports heavy-duty operations. The inch sizing makes it compatible with many North American industrial applications.

Built for Heavy-Duty Use: LM654649-LM654610 Bearing
LM654649-LM654610 Bearing excels in railway applications, particularly in axle boxes where its tapered rollers manage both radial and thrust loads. The steel cage adds robustness, making it reliable for long-haul transport.

Automotive vs Aerospace: Applications of LM654649-LM654610 Bearing
In automotive systems, LM654649-LM654610 Bearing is ideal for wheel hubs and differentials, thanks to its combined load handling. For aerospace, its precision and temperature tolerance suit auxiliary equipment like landing gear mechanisms.

Perfect Fit for Automation: LM654649-LM654610 Bearing
LM654649-LM654610 Bearing works well in automated conveyor systems, where its open design allows easy lubrication. The standard radial clearance ensures smooth operation in continuous production lines.
