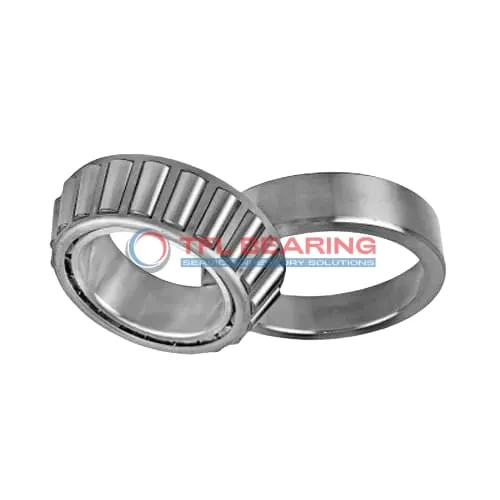

TS (Single Row Tapered Roller Bearings) (Imperial) LM236749-LM236710

TS (Single Row Tapered Roller Bearings) (Imperial) LM236749-LM236710

The LM236749-LM236710 is a single-row tapered roller bearing with a 7.25″ bore and 9.25″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 63800 lbf radially and 9480 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy machinery or industrial equipment where combined loads are common.

Weighing 7.4lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number LM236749-LM236710
  • Brand TFL
  • Interchangeable Timken
  • Size 7.25" x 9.25" x 1.3386"
  • Bore Dia 7.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.2992"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1024"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.3386"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 8.58"
  • Cone Backface Backing Diameter 7.68"
  • Cup Frontface Backing Diameter 9.06"
  • Cup Backface Backing Diameter 8.82"
  • Cage Cone Frontface Clearance 0.17"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location 0.2"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number LM236749
  • Cup Part Number LM236710
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series LM236700
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 63800 lbf
  • Static Radial Load 124000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 16500 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9480 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 7.400 lb

Features

Performance Features of LM236749-LM236710 Bearing

LM236749-LM236710 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 63,800 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it provides reliable performance across various conditions.

How Is LM236749-LM236710 Bearing Engineered for Reliability?

LM236749-LM236710 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction enhances durability, even in demanding industrial environments.
Its effective centre location of 0.2″ ensures stable operation under varying loads.
The bearing operates within a temperature range of -30° to 110°C, maintaining performance in diverse conditions.

Built for Durability: LM236749-LM236710 Bearing

LM236749-LM236710 Bearing’s chrome steel rollers and rings provide excellent wear resistance.
The steel cage maintains roller spacing, reducing wear and improving longevity.
With a static radial load capacity of 124,000 lbf, it handles heavy loads effortlessly.
Its standard radial clearance allows for smooth operation in various industrial settings.

Steel vs Ceramic Bearings: Strengths of LM236749-LM236710 Bearing

LM236749-LM236710 Bearing uses chrome steel for both rollers and rings, ensuring high strength and durability.
The steel cage design offers reliable performance, especially in heavy-load applications.
Its dynamic thrust rating of 9,480 lbf (Ca90) makes it versatile for different load types.
The bearing’s standard radial clearance ensures consistent performance without frequent adjustments.

Why Choose LM236749-LM236710 Bearing for Precision Tasks?

LM236749-LM236710 Bearing’s tapered roller design provides precise load distribution.
The chrome steel components resist wear, maintaining accuracy over extended use.
With an ABEC-1 rating, it meets precision requirements for industrial applications.
The bearing’s effective centre location ensures stable and predictable operation.

Application

Industrial Uses of LM236749-LM236710 Bearing
LM236749-LM236710 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is LM236749-LM236710 Bearing Used?
You’ll often find LM236749-LM236710 Bearing in agricultural machinery, particularly in gearboxes and wheel hubs. Its inch sizing makes it a reliable choice for North American equipment manufacturers.

Built for Heavy-Duty Use: LM236749-LM236710 Bearing
LM236749-LM236710 Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication. The steel cage adds extra strength, making it suitable for high-load applications.

Automotive vs Aerospace: Applications of LM236749-LM236710 Bearing
In automotive systems, LM236749-LM236710 Bearing supports axles and differentials, while in aerospace, it’s used in landing gear components. Its ABEC-1 rating ensures consistent performance across different industries.

Perfect Fit for Automation: LM236749-LM236710 Bearing
LM236749-LM236710 Bearing works well in automated conveyor systems, where its tapered rollers manage both radial and thrust loads. The standard radial clearance option makes it versatile for various setups.
