TS (Single Row Tapered Roller Bearings) (Imperial) L848849-L848810

TS (Single Row Tapered Roller Bearings) (Imperial) L848849-L848810

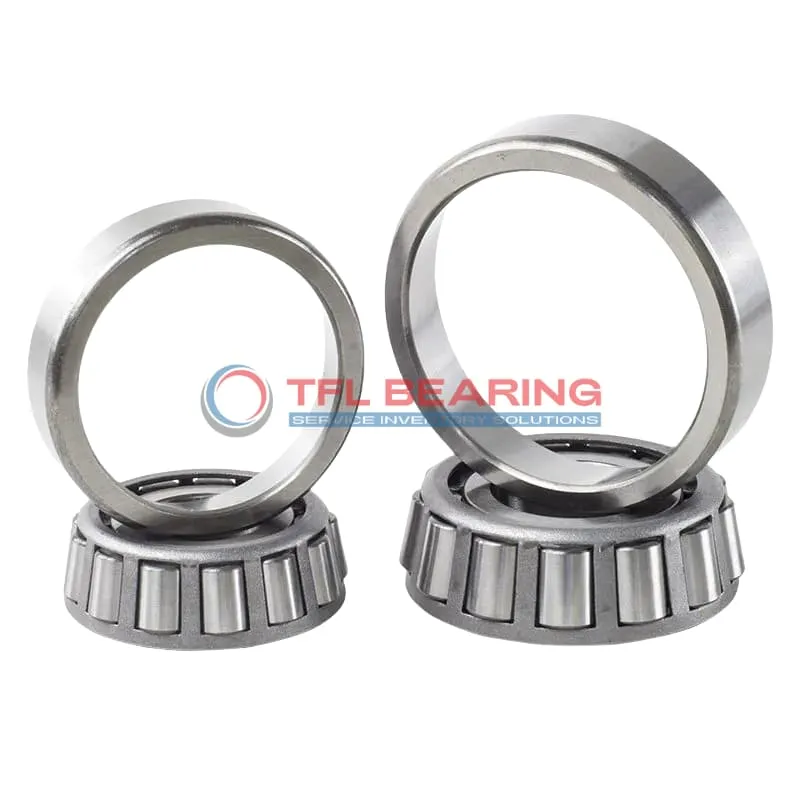

The L848849-L848810 is a single-row tapered roller bearing with a 9.999″ bore and 12.7933″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 80800 lbf and is designed for long-lasting performance.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery.

Weighing 16.4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number L848849-L848810
  • Brand TFL
  • Interchangeable Timken
  • Size 9.999" x 12.7933" x 1.5354"
  • Bore Dia 9.999"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 12.7933"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 1.6339"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1023"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5354"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 11.54"
  • Cone Backface Backing Diameter 10.47"
  • Cup Frontface Backing Diameter 12.53"
  • Cup Backface Backing Diameter 12.01"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location 1.26"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number L848849
  • Cup Part Number L848810
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series L848800
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 80800 lbf
  • Static Radial Load 161000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 21000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 20000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 16.400 lb

Features

How Does L848849-L848810 Bearing Handle Combined Loads?

L848849-L848810 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 80,800 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environmental conditions.

L848849-L848810 Bearing’s standard radial clearance allows for smooth operation under combined loads.
Its ABEC-1 rating ensures consistent performance in industrial applications.

Application

Industrial Uses of L848849-L848810 Bearing
L848849-L848810 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, L848849-L848810 Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

For industrial gearboxes, L848849-L848810 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, making it suitable for high-torque scenarios.

Where Is L848849-L848810 Bearing Used?
You’ll often find L848849-L848810 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design handles uneven loads. The standard radial clearance ensures smooth operation in varying conditions.

In railway applications, L848849-L848810 Bearing supports axle boxes, offering reliable performance under constant vibration. Its ABEC-1 rating provides a good balance of precision and cost-effectiveness for these uses.

Built for Heavy-Duty Use: L848849-L848810 Bearing
L848849-L848810 Bearing excels in wind turbine systems, where its tapered rollers manage both radial and axial loads efficiently. The temperature range of -30° to 110 °C ensures performance in diverse climates.

For conveyor systems in factories, L848849-L848810 Bearing’s dynamic radial load capacity of 80,800 lbf makes it a dependable choice. The steel cage and chrome steel rollers enhance its wear resistance over time.
