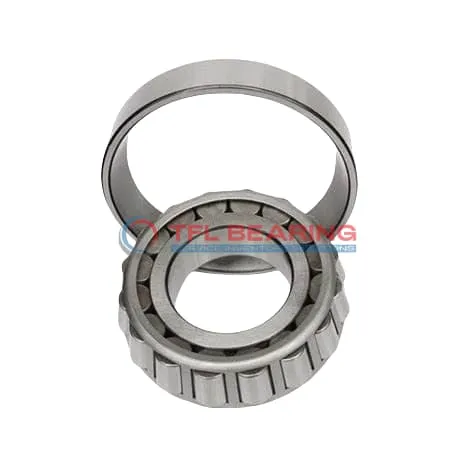

TS (Single Row Tapered Roller Bearings) (Imperial) HM813840-HM813810

TS (Single Row Tapered Roller Bearings) (Imperial) HM813840-HM813810

The HM813840-HM813810 is a single-row tapered roller bearing with a 2.1875″ bore and 5″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 51500 lbf radial and 11500 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for applications like gearboxes or heavy machinery where combined loads are common.

Weighing 5.1 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM813840-HM813810
  • Brand TFL
  • Interchangeable Timken
  • Size 2.1875" x 5" x 1.4375"
  • Bore Dia 2.1875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.83"
  • Cone Backface Backing Diameter 3.07"
  • Cup Frontface Backing Diameter 4.80"
  • Cup Backface Backing Diameter 4.37"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.14"
  • Effective Center Location -0.15"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HM813840
  • Cup Part Number HM813810
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HM813800
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 51500 lbf
  • Static Radial Load 57600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 13400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.1 lb

Features

How Does HM813840-HM813810 Bearing Handle Combined Loads?

HM813840-HM813810 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 51,500 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Why Choose HM813840-HM813810 Bearing for Precision Tasks?

HM813840-HM813810 Bearing features a single-row tapered roller design, providing precise load distribution.
The chrome steel construction enhances durability while maintaining smooth operation under combined loads.
Its standard radial clearance and ABEC-1 rating ensure consistent performance in precision applications.
The open design allows for easy lubrication, keeping maintenance simple and effective.

Engineered for Reliability: HM813840-HM813810 Bearing

HM813840-HM813810 Bearing’s robust chrome steel components withstand high static and dynamic loads.
The tapered roller design efficiently manages combined loads, ensuring long-term reliability.
With a wide temperature tolerance, it operates smoothly in diverse environments.
Its standard construction and easy lubrication make it a practical choice for various industrial uses.

Application

Industrial Uses of HM813840-HM813810 Bearing
HM813840-HM813810 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is HM813840-HM813810 Bearing Used?
You’ll often find HM813840-HM813810 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design supports high loads. Its inch sizing makes it a good fit for North American equipment standards.

Built for Heavy-Duty Use: HM813840-HM813810 Bearing
HM813840-HM813810 Bearing excels in industrial gearboxes, providing reliable performance under constant stress. The steel cage adds extra strength, making it suitable for long-term use.

Automotive vs Aerospace: Applications of HM813840-HM813810 Bearing
In automotive applications, HM813840-HM813810 Bearing is ideal for wheel hubs and differentials, offering smooth operation. For aerospace, its precision meets the needs of auxiliary systems without adding excessive weight.

Essential Roles of HM813840-HM813810 Bearing
HM813840-HM813810 Bearing is a key component in conveyor systems, ensuring smooth material handling. Its standard radial clearance allows for easy installation and maintenance in various setups.
