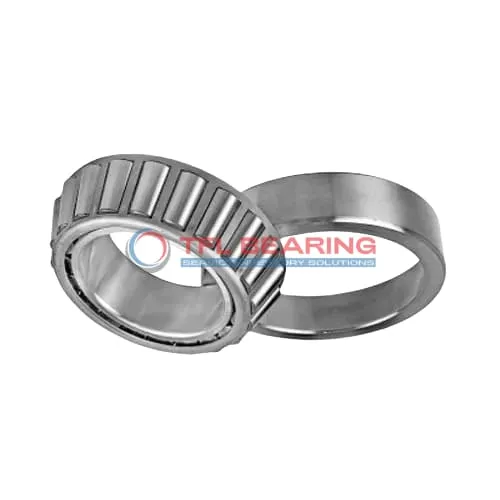

TS (Single Row Tapered Roller Bearings) (Imperial) HM237547-HM237513

The HM237547-HM237513 is a single-row tapered roller bearing with a 7.0866″ bore and 11.4163″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 188,000 lbf radially and 26,600 lbf thrust, making it robust for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where combined loads are common.

Weighing 34.00 lb, it’s built for strength and longevity, complying with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number HM237547-HM237513
Brand TFL
Interchangeable Timken
Size 7.0866" x 11.4163" x 2.5001"
Bore Dia 7.0866"
Bore Dia Tolerance +0.001" to 0
Outer Dia 11.4163"
Outer Dia Tolerance +0.001" to 0
Cone Width 2.6875"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.8898"
Cup Width Tolerance +0.002" to -0.01
Width 2.5001"
Width Tolerance +0.014" to -0.01"
Cone Backface ToClear Radius 0.280"
Cup Backface ToClear Radius 0.12"
Cone Frontface Backing Diameter 8.7"
Cone Backface Backing Diameter 8.11"
Cup Frontface Backing Diameter 10.71"
Cup Backface Backing Diameter 10.51"
Cage Cone Frontface Clearance 0.12"
Cage Cone Backface Clearance 0.18"
Effective Center Location -0.46"
System of Measurement Inch
Type Bearing
Cone Part Number HM237547
Cup Part Number HM237513
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series HM237500
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 188000 lbf
Static Radial Load 254000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 48800 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 26600 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 34.00 lb

Features

How Does HM237547-HM237513 Bearing Handle Combined Loads?

HM237547-HM237513 Bearing is built with chrome steel rings and rollers, offering robust performance under combined radial and thrust loads.
Its dynamic radial load capacity reaches 188,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing friction.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

Application

Industrial Uses of HM237547-HM237513 Bearing
HM237547-HM237513 Bearing is commonly used in heavy machinery like mining equipment and construction gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

What Makes HM237547-HM237513 Bearing a Preferred Choice?
In automotive applications, HM237547-HM237513 Bearing supports wheel hubs and drivetrains, providing reliable performance under high radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: HM237547-HM237513 Bearing
For industrial fans and pumps, HM237547-HM237513 Bearing offers stability and long service life, thanks to its robust steel cage. The open design allows for easy lubrication, reducing maintenance downtime.

Automotive vs Aerospace: Applications of HM237547-HM237513 Bearing
While HM237547-HM237513 Bearing excels in truck axles and heavy vehicles, it’s also suitable for aerospace ground support equipment. Its ABEC-1 rating balances precision and cost-effectiveness for these demanding roles.
