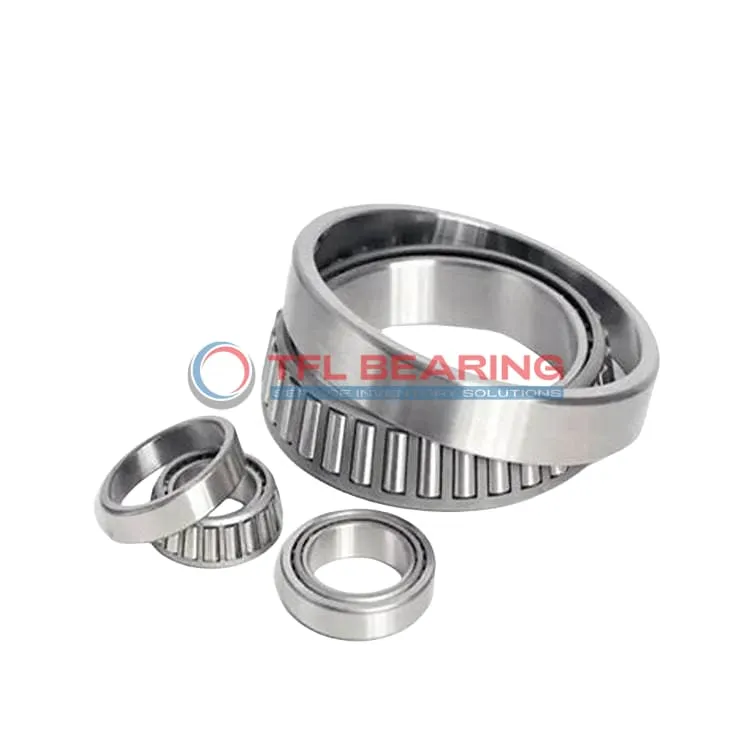

TS (Single Row Tapered Roller Bearings) (Imperial) HM212044-HM212010

TS (Single Row Tapered Roller Bearings) (Imperial) HM212044-HM212010

The HM212044-HM212010 is a single-row tapered roller bearing with a 2.375″ bore and 4.8125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 60,000 lbf radial and 8,990 lbf thrust, making it versatile for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like industrial gearboxes or heavy machinery where robust performance is needed.

Weighing 4.5 lb, it’s built to last with standard radial clearance and ABEC-1 precision. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HM212044-HM212010
  • Brand TFL
  • Interchangeable Timken
  • Size 2.375" x 4.8125" x 1.5"
  • Bore Dia 2.375"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.8125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.51"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.17"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.310"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 2.76"
  • Cone Backface Backing Diameter 3.35"
  • Cup Frontface Backing Diameter 4.60"
  • Cup Backface Backing Diameter 4.33"
  • Cage Cone Frontface Clearance 0.15"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.43"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HM212044
  • Cup Part Number HM212010
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HM212000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 60000 lbf
  • Static Radial Load 62700 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 15600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8990 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.5 lb

Features

How Does HM212044-HM212010 Bearing Handle Combined Loads?

HM212044-HM212010 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 60,000 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

What Makes HM212044-HM212010 Bearing Suitable for Heavy-Duty Applications?

HM212044-HM212010 Bearing features a single-row tapered roller design, ideal for handling combined loads efficiently.
The chrome steel construction provides durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 8,990 lbf makes it suitable for high-load scenarios.
The open design allows for easy lubrication, maintaining performance over time.

Engineered for Precision: HM212044-HM212010 Bearing

HM212044-HM212010 Bearing’s tapered roller design ensures precise load distribution, reducing wear.
The ABEC-1 rating guarantees consistent performance in industrial applications.
With a static radial load capacity of 62,700 lbf, it excels in heavy-duty machinery.
The steel cage enhances stability, even at high speeds.

Radial vs Thrust Bearings: The Edge of HM212044-HM212010 Bearing

HM212044-HM212010 Bearing combines the benefits of radial and thrust bearings, handling both load types effectively.
Its chrome steel rollers and rings provide long-lasting performance in tough conditions.
The standard radial clearance option ensures flexibility for different applications.
With a weight of 4.5 lb, it balances strength and ease of installation.

Application

Industrial Uses of HM212044-HM212010 Bearing
HM212044-HM212010 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

What Makes HM212044-HM212010 Bearing a Preferred Choice?
In automotive applications, HM212044-HM212010 Bearing supports wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: HM212044-HM212010 Bearing
For industrial fans and pumps, HM212044-HM212010 Bearing offers smooth operation even at high speeds. The steel cage adds strength, making it suitable for continuous use in harsh conditions.

Automotive vs Aerospace: Applications of HM212044-HM212010 Bearing
In automotive systems, HM212044-HM212010 Bearing excels in transmissions and axles, while its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance in both fields.

Essential Roles of HM212044-HM212010 Bearing
HM212044-HM212010 Bearing is vital in agricultural machinery, where it withstands heavy loads and rough terrain. The standard radial clearance allows for easy installation and maintenance in field equipment.
