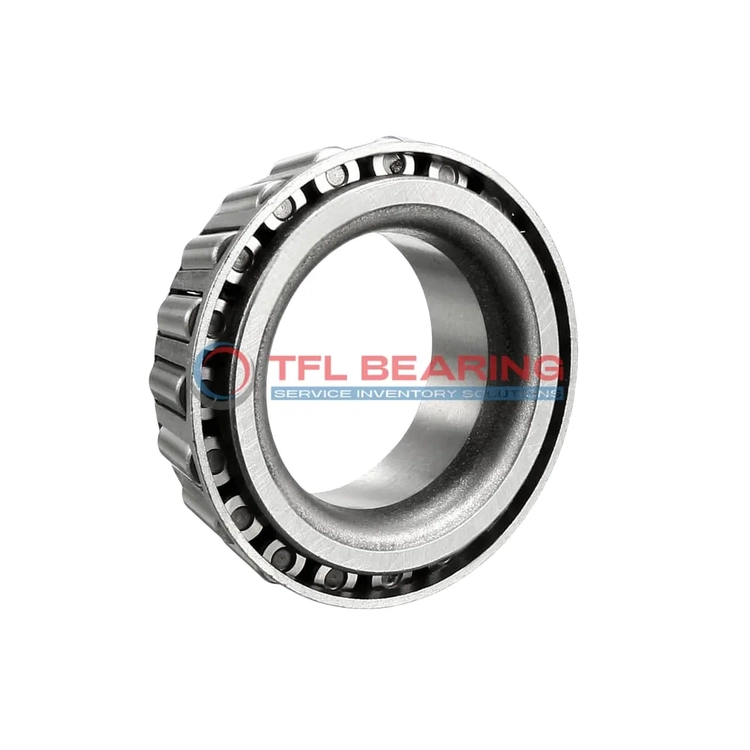

TS (Single Row Tapered Roller Bearings) (Imperial) HH926744-HH926716

TS (Single Row Tapered Roller Bearings) (Imperial) HH926744-HH926716

The HH926744-HH926716 is a single row tapered roller bearing with a 4.5″ bore and 11″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 240,000 lbf and works well in temperatures from -30°C to 110°C.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing is interchangeable with Timken models, making it a practical choice for replacements.

With a standard radial clearance and ABEC-1 rating, it offers reliable performance for heavy-duty applications. Ideal for use in industrial machinery or automotive systems where robust load handling is needed.

Weighing 51 lb, this bearing is built to last and complies with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH926744-HH926716
  • Brand TFL
  • Interchangeable Timken
  • Size 4.5" x 11" x 3.25"
  • Bore Dia 4.5"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 11"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 3.25"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.25"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 6.75"
  • Cone Backface Backing Diameter 6.46"
  • Cup Frontface Backing Diameter 10.00"
  • Cup Backface Backing Diameter 9.17"
  • Cage Cone Frontface Clearance 0.2"
  • Cage Cone Backface Clearance 0.56"
  • Effective Center Location -0.26"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HH926744
  • Cup Part Number HH926716
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HH926700
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 240000 lbf
  • Static Radial Load 243000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 62100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 67200 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 51.000 lb

Features

How Does HH926744-HH926716 Bearing Handle Combined Loads?

HH926744-HH926716 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 240,000 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

What Makes HH926744-HH926716 Bearing Durable?

HH926744-HH926716 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction enhances its resistance to wear, even under high stress.
Its standard radial clearance allows for smooth operation, reducing maintenance needs.
Weighing 51 lb, it is robust yet manageable for industrial applications.

Engineered for Precision: HH926744-HH926716 Bearing

HH926744-HH926716 Bearing is designed with precise tolerances, ensuring consistent performance in demanding settings.
The tapered roller arrangement distributes loads evenly, minimising stress on individual components.
Its ABEC-1 rating confirms reliable precision for various industrial uses.
The open seal type facilitates easy lubrication, maintaining optimal performance over time.

Application

Industrial Uses of HH926744-HH926716 Bearing
HH926744-HH926716 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is HH926744-HH926716 Bearing Used?
In automotive applications, HH926744-HH926716 Bearing supports large axles and wheel hubs, providing reliable performance under heavy radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle designs.

Built for Heavy-Duty Use: HH926744-HH926716 Bearing
For industrial gearboxes, HH926744-HH926716 Bearing offers stable operation thanks to its steel cage and precise tolerances. The open design allows for easy lubrication, extending service life in high-load scenarios.

Automotive vs Aerospace: Applications of HH926744-HH926716 Bearing
In automotive systems, HH926744-HH926716 Bearing excels in truck transmissions, while its robust design also suits aerospace ground support equipment. The ABEC-1 rating ensures consistent performance across different industries.

Key Fields for HH926744-HH926716 Bearing
HH926744-HH926716 Bearing is ideal for agricultural machinery, where its ability to handle dirt and debris comes in handy. The standard radial clearance option makes it versatile for various farming equipment needs.
