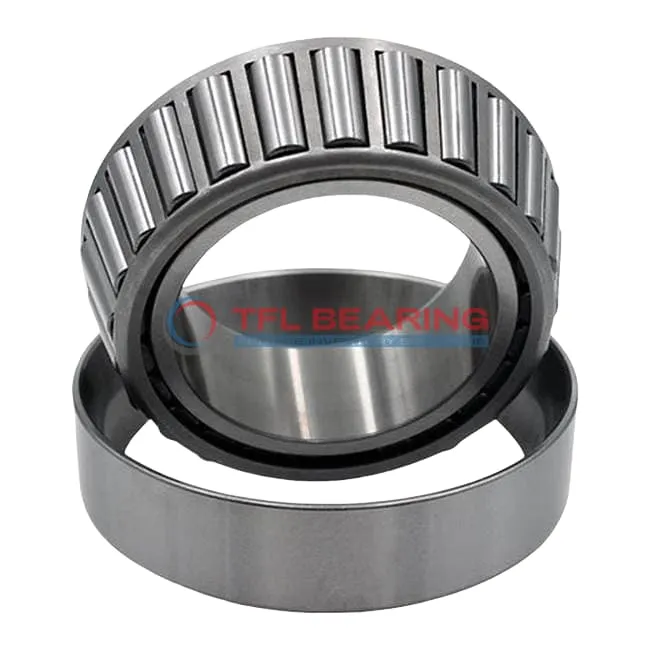

TS (Single Row Tapered Roller Bearings) (Imperial) HH814547-HH814510

The HH814547-HH814510 is a single-row tapered roller bearing with a 2.625″ bore and 6″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 76100 lbf radially and 16500 lbf thrust, making it versatile for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where robust performance is needed.

Weighing 10.6 lb, it’s built to last with standard radial clearance and ABEC-1 precision. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number HH814547-HH814510
Brand TFL
Interchangeable Timken
Size 2.625" x 6" x 2.125"
Bore Dia 2.625"
Bore Dia Tolerance +0.005" to 0
Outer Dia 6"
Outer Dia Tolerance +0.001" to 0
Cone Width 2.25"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.625"
Cup Width Tolerance +0.002" to -0.01
Width 2.125"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.14"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 4.09"
Cone Backface Backing Diameter 3.66"
Cup Frontface Backing Diameter 5.64"
Cup Backface Backing Diameter 5.12"
Cage Cone Frontface Clearance 0.05"
Cage Cone Backface Clearance 0.18"
Effective Center Location -0.48"
System of Measurement Inch
Type Bearing
Cone Part Number HH814547
Cup Part Number HH814510
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series HH814500
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 76100 lbf
Static Radial Load 95000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 19700 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 16500 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 10.6 lb

Features

How Does HH814547-HH814510 Bearing Handle Combined Loads?

HH814547-HH814510 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 76,100 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Why Choose HH814547-HH814510 Bearing for Precision Tasks?

HH814547-HH814510 Bearing features precise cone and cup width tolerances, ensuring accurate alignment in applications.
The tapered roller design distributes loads evenly, enhancing stability and reducing wear.
Its ABEC-1 rating guarantees consistent performance for precision tasks.
The standard radial clearance allows for smooth operation under combined loads.

Built for Durability: HH814547-HH814510 Bearing

HH814547-HH814510 Bearing’s chrome steel construction provides excellent resistance to wear and fatigue.
Its static radial load capacity of 95,000 lbf ensures long-term reliability in heavy-duty use.
The open design simplifies lubrication, maintaining optimal performance over time.
With a weight of 10.6 lb, it balances strength and manageability.

Application

Industrial Uses of HH814547-HH814510 Bearing
HH814547-HH814510 Bearing is commonly used in heavy machinery like construction equipment and mining gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

What Makes HH814547-HH814510 Bearing a Preferred Choice?
In automotive applications, HH814547-HH814510 Bearing fits well in wheel hubs and differential systems, thanks to its precise imperial sizing. Its open design allows for easy lubrication, extending service life in high-load scenarios.

Built for Heavy-Duty Use: HH814547-HH814510 Bearing
For industrial fans and pumps, HH814547-HH814510 Bearing offers reliable performance with its standard radial clearance and ABEC-1 rating. The steel cage adds extra strength, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of HH814547-HH814510 Bearing
In automotive systems, HH814547-HH814510 Bearing supports heavy axles and transmissions, while in aerospace, its precision helps in auxiliary equipment. The temperature range of -30° to 110°C ensures versatility across environments.
