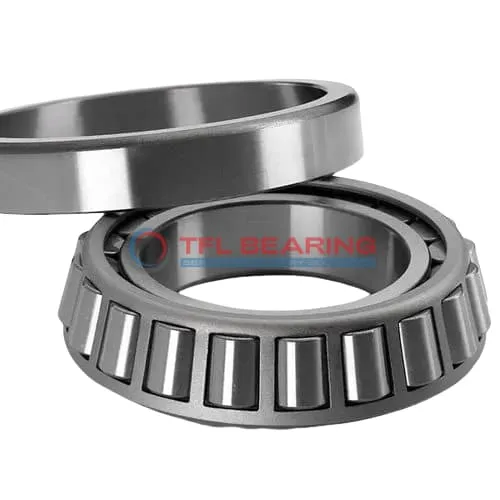

TS (Single Row Tapered Roller Bearings) (Imperial) HH234049-HH234010V

TS (Single Row Tapered Roller Bearings) (Imperial) HH234049-HH234010V

The HH234049-HH234010V is a single-row tapered roller bearing with a 6″ bore and 12.125″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 274,000 lbf radially and 39,700 lbf thrust, making it robust for heavy-duty use.

Its pin-type cage design ensures smooth operation, while the open seal allows easy lubrication. The bearing operates well in temperatures from -30°C to 110°C, suitable for varied environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or large equipment where high radial and thrust loads are common.

Weighing 63.9 lb, it’s built for durability and long service life. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH234049-HH234010V
  • Brand TFL
  • Interchangeable Timken
  • Size 6" x 12.125" x 3.5"
  • Bore Dia 6"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 12.125"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.6875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.380"
  • Cup Backface ToClear Radius 0.270"
  • Cone Frontface Backing Diameter 7.99"
  • Cone Backface Backing Diameter 7.52"
  • Cup Frontface Backing Diameter 11.26"
  • Cup Backface Backing Diameter 10.87"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.36"
  • Effective Center Location -1.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HH234049
  • Cup Part Number HH234010V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HH234000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Pin-Type
  • Dynamic Radial Load 274000 lbf
  • Static Radial Load 354000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 71100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 39700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 63.900 lb

Features

How Does HH234049-HH234010V Bearing Handle Combined Loads?

HH234049-HH234010V Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 274,000 lbf, making it suitable for heavy-duty applications.
The pin-type cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Application

Industrial Uses of HH234049-HH234010V Bearing
HH234049-HH234010V Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is HH234049-HH234010V Bearing Used?
You’ll often find HH234049-HH234010V Bearing in agricultural machinery, such as tractors and harvesters, where its robust design supports high radial and thrust loads. The pin-type cage adds stability during heavy use.

Built for Heavy-Duty Use: HH234049-HH234010V Bearing
HH234049-HH234010V Bearing excels in industrial gearboxes, providing reliable performance under constant stress. Its standard radial clearance makes it adaptable to various operational conditions.

Automotive vs Aerospace: Applications of HH234049-HH234010V Bearing
In automotive applications, HH234049-HH234010V Bearing is ideal for truck wheel hubs, while in aerospace, it supports auxiliary systems. The inch sizing ensures compatibility with imperial-based designs.

Perfect Fit for Automation: HH234049-HH234010V Bearing
HH234049-HH234010V Bearing works well in automated conveyor systems, where its tapered rollers manage directional loads smoothly. The open design simplifies lubrication and maintenance.
