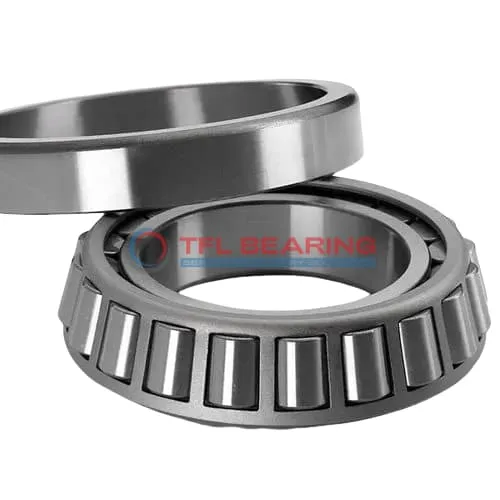

TS (Single Row Tapered Roller Bearings) (Imperial) HH234048V-HH234018

TS (Single Row Tapered Roller Bearings) (Imperial) HH234048V-HH234018

The HH234048V-HH234018 is a single-row tapered roller bearing with a 6″ bore and 12.5″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 325,000 lbf and is designed for long-lasting performance.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a reliable choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery where combined loads are common.

Weighing 68.50 lb, it’s robust and built to withstand demanding conditions. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH234048V-HH234018
  • Brand TFL
  • Interchangeable Timken
  • Size 6" x 12.5" x 3.5"
  • Bore Dia 6"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 12.5"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.6875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.380"
  • Cup Backface ToClear Radius 0.270"
  • Cone Frontface Backing Diameter 7.99"
  • Cone Backface Backing Diameter 7.52"
  • Cup Frontface Backing Diameter 11.26"
  • Cup Backface Backing Diameter 11.02"
  • Cage Cone Frontface Clearance 0.01"
  • Cage Cone Backface Clearance 0.45"
  • Effective Center Location -1.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HH234048V
  • Cup Part Number HH234018
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HH234000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 325000 lbf
  • Static Radial Load 354000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 84300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 47100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 68.50 lb

Features

How Does HH234048V-HH234018 Bearing Handle Combined Loads?

HH234048V-HH234018 Bearing is built with chrome steel rings and rollers, offering robust performance under combined radial and thrust loads.
Its dynamic radial load capacity reaches 325,000 lbf, making it suitable for heavy-duty industrial applications.
The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

Structural Advantages of HH234048V-HH234018 Bearing

HH234048V-HH234018 Bearing features a single-row tapered roller design, optimised for efficient load distribution.
The chrome steel construction provides excellent resistance to wear, extending the bearing’s service life.
Its standard radial clearance allows for smooth operation in diverse machinery setups.
The open seal type facilitates easy lubrication, ensuring consistent performance over time.

Why Choose HH234048V-HH234018 Bearing for Heavy-Duty Applications?

HH234048V-HH234018 Bearing combines high static and dynamic load ratings, with a static radial load capacity of 354,000 lbf.
The tapered roller design minimises friction, even under extreme pressure and combined loads.
Its ABEC-1 rating ensures reliable precision for industrial machinery and equipment.
The bearing’s wide temperature range makes it versatile for use in various environments.

Application

Industrial Uses of HH234048V-HH234018 Bearing
HH234048V-HH234018 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is HH234048V-HH234018 Bearing Used?
You’ll often find HH234048V-HH234018 Bearing in automotive applications, particularly in truck wheel hubs and differential systems. Its imperial sizing makes it a straightforward fit for many North American vehicle designs.

Built for Heavy-Duty Use: HH234048V-HH234018 Bearing
HH234048V-HH234018 Bearing excels in industrial gearboxes, providing reliable performance under high radial and thrust loads. The steel cage adds extra strength, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of HH234048V-HH234018 Bearing
In automotive settings, HH234048V-HH234018 Bearing supports heavy axles and transmissions, while in aerospace, it’s used in landing gear systems. Its ABEC-1 rating ensures consistent performance across both fields.

Key Fields for HH234048V-HH234018 Bearing
HH234048V-HH234018 Bearing is ideal for agricultural machinery, such as tractors and harvesters, where its robust design handles uneven loads. The open seal type allows for easy lubrication, extending its service life.
