TS (Single Row Tapered Roller Bearings) (Imperial) HH234048V-HH234010V

TS (Single Row Tapered Roller Bearings) (Imperial) HH234048V-HH234010V

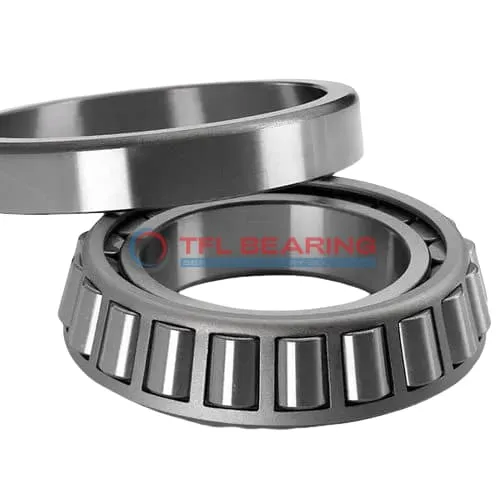

The HH234048V-HH234010V is a single-row tapered roller bearing with a 6″ bore and 12.125″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 325,000 lbf radially and 47,100 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or construction equipment where robust performance is needed.

Weighing 63.1 lb, it’s built to last in demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH234048V-HH234010V
  • Brand TFL
  • Interchangeable Timken
  • Size 6" x 12.125" x 3.5"
  • Bore Dia 6"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 12.125"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.6875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.380"
  • Cup Backface ToClear Radius 0.270"
  • Cone Frontface Backing Diameter 7.99"
  • Cone Backface Backing Diameter 7.52"
  • Cup Frontface Backing Diameter 11.26"
  • Cup Backface Backing Diameter 10.87"
  • Cage Cone Frontface Clearance 0.01"
  • Cage Cone Backface Clearance 0.45"
  • Effective Center Location -1.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HH234048V
  • Cup Part Number HH234010V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HH234000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 325000 lbf
  • Static Radial Load 354000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 84300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 47100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 63.1 lb

Features

Performance Features of HH234048V-HH234010V Bearing

HH234048V-HH234010V Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 325,000 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

How Is HH234048V-HH234010V Bearing Engineered for Reliability?

HH234048V-HH234010V Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 47,100 lbf makes it suitable for demanding industrial applications.
The bearing requires lubrication, ensuring consistent performance over its service life.

Built for Durability: HH234048V-HH234010V Bearing

HH234048V-HH234010V Bearing’s robust design includes chrome steel components for enhanced strength.
With a static radial load capacity of 354,000 lbf, it handles heavy loads with ease.
The open seal type allows for easy maintenance and lubrication access.
Its ABEC-1 rating ensures reliable precision in various industrial settings.

Steel vs Ceramic Bearings: Strengths of HH234048V-HH234010V Bearing

HH234048V-HH234010V Bearing uses chrome steel for both rings and rollers, providing excellent load-bearing capacity.
The steel cage design ensures stability and reduces wear during operation.
With a dynamic radial rating of 84,300 lbf at 90 million revolutions, it offers long-lasting performance.
The bearing’s standard radial clearance makes it versatile for different applications.

Application

Industrial Uses of HH234048V-HH234010V Bearing
HH234048V-HH234010V Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, HH234048V-HH234010V Bearing supports large axles and wheel hubs, providing reliable performance under heavy radial and thrust loads. Its inch sizing makes it a preferred choice for North American truck and bus manufacturers.

For industrial gearboxes, HH234048V-HH234010V Bearing’s single-row design offers precise alignment and smooth operation. The steel cage enhances stability, making it suitable for high-torque scenarios.

What Makes HH234048V-HH234010V Bearing a Preferred Choice?
HH234048V-HH234010V Bearing excels in agricultural machinery, such as tractors and harvesters, due to its robust build and standard radial clearance. The open seal type allows for easy lubrication maintenance.

In material handling systems, HH234048V-HH234010V Bearing ensures smooth conveyor belt operations with its high dynamic radial load capacity. The ABEC-1 rating balances precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: HH234048V-HH234010V Bearing
HH234048V-HH234010V Bearing is ideal for forestry equipment, where its tapered rollers handle uneven loads and shock resistance. The chrome steel rollers and rings provide long service life.

For railway applications, HH234048V-HH234010V Bearing supports bogie systems, offering reliable performance under constant vibration. Its temperature range suits both cold and moderate climates.

Light-Duty vs Heavy-Duty: Best Uses for HH234048V-HH234010V Bearing
In light-duty scenarios like industrial fans, HH234048V-HH234010V Bearing provides quiet and efficient operation. The standard radial clearance ensures smooth rotation at moderate speeds.

For heavy-duty uses like oil rig machinery, HH234048V-HH234010V Bearing’s high static radial load capacity ensures stability under extreme conditions. The steel cage adds extra durability.
