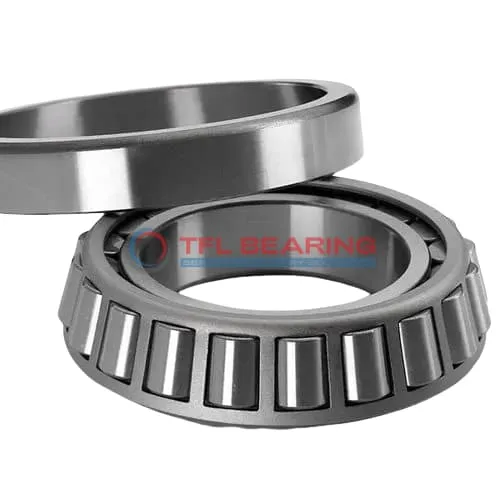

TS (Single Row Tapered Roller Bearings) (Imperial) HH234048-HH234010V

TS (Single Row Tapered Roller Bearings) (Imperial) HH234048-HH234010V

The HH234048-HH234010V is a single-row tapered roller bearing with a 6″ bore and 12.125″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 259,000 lbf radially and 37,500 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or construction equipment where robust performance is needed.

Weighing 63.6 lb, it’s designed for stability and long service life. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH234048-HH234010V
  • Brand TFL
  • Interchangeable Timken
  • Size 6" x 12.125" x 3.5"
  • Bore Dia 6"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 12.125"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.6875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.380"
  • Cup Backface ToClear Radius 0.270"
  • Cone Frontface Backing Diameter 7.99"
  • Cone Backface Backing Diameter 7.52"
  • Cup Frontface Backing Diameter 11.26"
  • Cup Backface Backing Diameter 10.87"
  • Cage Cone Frontface Clearance 0.01"
  • Cage Cone Backface Clearance 0.46"
  • Effective Center Location -1.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HH234048
  • Cup Part Number HH234010V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HH234000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 259000 lbf
  • Static Radial Load 354000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 67200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 37500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 63.6 lb

Features

Performance Features of HH234048-HH234010V Bearing

HH234048-HH234010V Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 259,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing friction.
With a temperature range of -30° to 110°C, it performs reliably in various operating conditions.

How Does HH234048-HH234010V Bearing Resist Wear?

HH234048-HH234010V Bearing’s chrome steel construction provides excellent resistance to wear and tear.
The tapered roller design distributes loads evenly, minimising stress on individual components.
Its standard radial clearance allows for smooth operation, even under high radial loads.
Regular lubrication ensures consistent performance and extends the bearing’s service life.

Engineered for Precision: HH234048-HH234010V Bearing

HH234048-HH234010V Bearing features precise dimensions, with bore and outer diameter tolerances tightly controlled.
The single-row tapered roller design ensures accurate load distribution and reliable operation.
Its ABEC-1 rating confirms consistent quality and performance for industrial applications.
The bearing’s effective centre location is optimised for stability in demanding setups.

Steel vs Ceramic Bearings: Strengths of HH234048-HH234010V Bearing

HH234048-HH234010V Bearing uses chrome steel for both rings and rollers, offering excellent strength-to-weight ratio.
This material choice provides better impact resistance compared to ceramic alternatives in heavy-load scenarios.
The steel cage maintains structural integrity under high dynamic loads up to 259,000 lbf.
While requiring lubrication, this design ensures reliable performance across its -30° to 110°C operating range.

Application

Industrial Uses of HH234048-HH234010V Bearing
HH234048-HH234010V Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

What Makes HH234048-HH234010V Bearing a Preferred Choice?
In automotive applications, HH234048-HH234010V Bearing is ideal for wheel hubs and differential systems, thanks to its high dynamic radial load capacity. The inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: HH234048-HH234010V Bearing
For industrial fans and pumps, HH234048-HH234010V Bearing offers reliable performance with its standard radial clearance and open design. The steel cage provides added strength for continuous operation.

Automotive vs Aerospace: Applications of HH234048-HH234010V Bearing
While HH234048-HH234010V Bearing excels in truck axles and heavy-duty transmissions, its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance across different industries.

Essential Roles of HH234048-HH234010V Bearing
In conveyor systems, HH234048-HH234010V Bearing’s tapered rollers manage both radial and thrust loads smoothly. The wide temperature range allows it to perform reliably in various environments.
