TS (Single Row Tapered Roller Bearings) (Imperial) HH234040-HH234010V

TS (Single Row Tapered Roller Bearings) (Imperial) HH234040-HH234010V

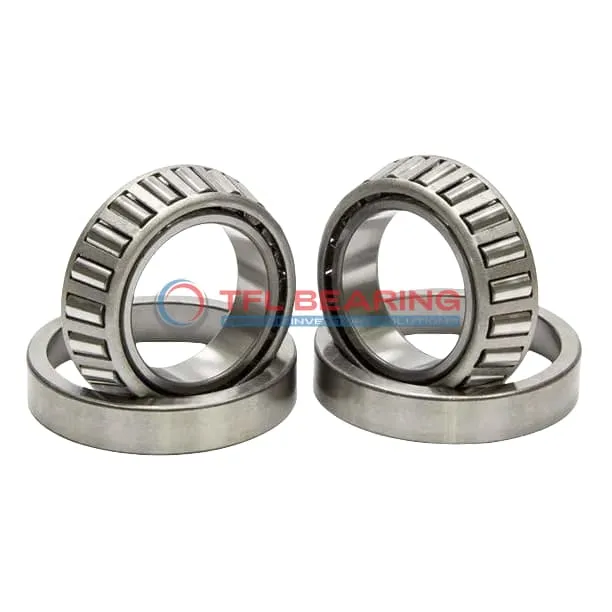

The HH234040-HH234010V is a single-row tapered roller bearing with a 5.75″ bore and 12.125″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 259,000 lbf radially and 37,500 lbf thrust, making it robust for heavy-duty use.

Its pin-type cage design ensures smooth operation, while the open seal allows easy lubrication. The bearing performs well in temperatures from -30°C to 110°C, suitable for varied environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or large equipment where high load capacity is needed.

Weighing 66.3 lb, it’s built for durability. Compliant with RoHS and REACH standards, it’s a safe choice for demanding applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH234040-HH234010V
  • Brand TFL
  • Interchangeable Timken
  • Size 5.75" x 12.125" x 3.5"
  • Bore Dia 5.75"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 12.125"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.6875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.380"
  • Cup Backface ToClear Radius 0.270"
  • Cone Frontface Backing Diameter 7.68"
  • Cone Backface Backing Diameter 7.32"
  • Cup Frontface Backing Diameter 11.26"
  • Cup Backface Backing Diameter 10.87"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.36"
  • Effective Center Location -1.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HH234040
  • Cup Part Number HH234010V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HH234000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Pin-Type
  • Dynamic Radial Load 259000 lbf
  • Static Radial Load 354000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 67200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 37500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 66.3 lb

Features

Engineered for Precision: HH234040-HH234010V Bearing

HH234040-HH234010V Bearing is crafted with chrome steel rings and rollers, ensuring durability under combined loads.
Its dynamic radial load capacity reaches 259,000 lbf, making it suitable for heavy-duty applications.
The pin-type cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Why Choose HH234040-HH234010V Bearing for Combined Loads?

HH234040-HH234010V Bearing handles both radial and thrust loads efficiently, thanks to its tapered roller design.
The chrome steel construction resists wear, ensuring long-term performance in demanding environments.
Its standard radial clearance options (C3/C4/C5) allow for flexibility in different applications.
Weighing 66.3 lb, it balances strength and practicality for industrial use.

Structural Advantages of HH234040-HH234010V Bearing

HH234040-HH234010V Bearing features a single-row construction, simplifying installation and maintenance.
The precise cone and cup dimensions ensure smooth operation and reduced vibration.
With a dynamic thrust rating of 37,500 lbf, it excels in applications requiring high load capacity.
The open design allows for easy lubrication, enhancing its service life.

Application

Industrial Uses of HH234040-HH234010V Bearing
HH234040-HH234010V Bearing is commonly used in heavy machinery, such as mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is HH234040-HH234010V Bearing Used?
You’ll often find HH234040-HH234010V Bearing in agricultural machinery, supporting components like gearboxes and axles. Its pin-type cage provides stability, making it reliable for high-load applications.

Built for Heavy-Duty Use: HH234040-HH234010V Bearing
HH234040-HH234010V Bearing excels in industrial fans and pumps, where its standard radial clearance allows for smooth operation. The inch sizing makes it a practical choice for North American machinery.

Automotive vs Aerospace: Applications of HH234040-HH234010V Bearing
In automotive systems, HH234040-HH234010V Bearing supports wheel hubs and drivetrains, while in aerospace, it’s used in landing gear assemblies. Its ABEC-1 rating ensures consistent performance across both sectors.

What Makes HH234040-HH234010V Bearing a Preferred Choice?
HH234040-HH234010V Bearing is ideal for paper mills and steel plants, where its dynamic radial load capacity handles intense operational stresses. The open design simplifies lubrication and maintenance.
