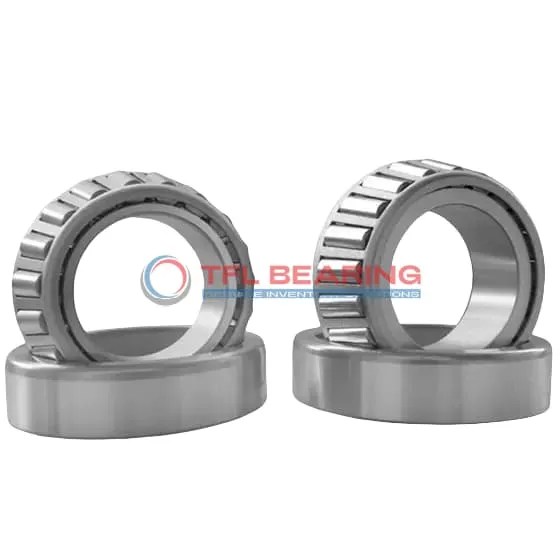

TS (Single Row Tapered Roller Bearings) (Imperial) HH234032-HH234018

TS (Single Row Tapered Roller Bearings) (Imperial) HH234032-HH234018

The HH234032-HH234018 is a single-row tapered roller bearing with a 5.5″ bore and 12.5″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 259,000 lbf radially and 37,500 lbf thrust, making it suitable for heavy-duty applications.

Its pin-type cage design ensures smooth operation, while the open seal allows for easy lubrication. The bearing operates well in temperatures ranging from -30°C to 110°C, fitting various industrial environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or construction equipment where high radial and thrust loads are common.

Weighing 74 lbs, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH234032-HH234018
  • Brand TFL
  • Interchangeable Timken
  • Size 5.5" x 12.5" x 3.5"
  • Bore Dia 5.5"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 12.5"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.6875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.380"
  • Cup Backface ToClear Radius 0.270"
  • Cone Frontface Backing Diameter 7.44"
  • Cone Backface Backing Diameter 7.09"
  • Cup Frontface Backing Diameter 11.26"
  • Cup Backface Backing Diameter 11.02"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.36"
  • Effective Center Location -1.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HH234032
  • Cup Part Number HH234018
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HH234000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Pin-Type
  • Dynamic Radial Load 259000 lbf
  • Static Radial Load 354000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 67200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 37500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 74.00 lb

Features

How Does HH234032-HH234018 Bearing Handle Combined Loads?

HH234032-HH234018 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 259,000 lbf, ensuring reliable performance in heavy-duty applications.

The pin-type cage keeps the rollers aligned, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

HH234032-HH234018 Bearing’s standard radial clearance allows for smooth operation under combined loads.
Its tapered roller design ensures efficient load distribution, enhancing durability.

Application

Industrial Uses of HH234032-HH234018 Bearing
HH234032-HH234018 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

In automotive applications, HH234032-HH234018 Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, HH234032-HH234018 Bearing’s pin-type cage design reduces friction, improving efficiency in continuous operation. The standard radial clearance offers flexibility for various load requirements.

What Makes HH234032-HH234018 Bearing a Preferred Choice?
HH234032-HH234018 Bearing is ideal for agricultural machinery, such as tractors and harvesters, due to its robust construction and ability to withstand dirt and debris. The open seal type allows for easy lubrication maintenance.

In wind turbine gearboxes, HH234032-HH234018 Bearing’s high dynamic load capacity ensures long service life even under fluctuating forces. The ABEC-1 rating provides sufficient precision for most industrial applications.

Built for Heavy-Duty Use: HH234032-HH234018 Bearing
HH234032-HH234018 Bearing excels in railway axle boxes, where its tapered rollers manage both radial and axial forces smoothly. The chrome steel rollers resist wear, extending bearing life.

For oil and gas drilling equipment, HH234032-HH234018 Bearing’s temperature range (-30° to 110°C) ensures reliability in extreme environments. The standard radial clearance adapts well to thermal expansion.

Automotive vs Aerospace: Applications of HH234032-HH234018 Bearing
In automotive drivetrains, HH234032-HH234018 Bearing handles high torque and variable loads, making it suitable for performance vehicles. The inch measurements align with many aftermarket part specifications.

For aerospace ground support equipment, HH234032-HH234018 Bearing’s weight (74 lb) and load capacity meet the demands of heavy lifting machinery. The pin-type cage reduces vibration during operation.
