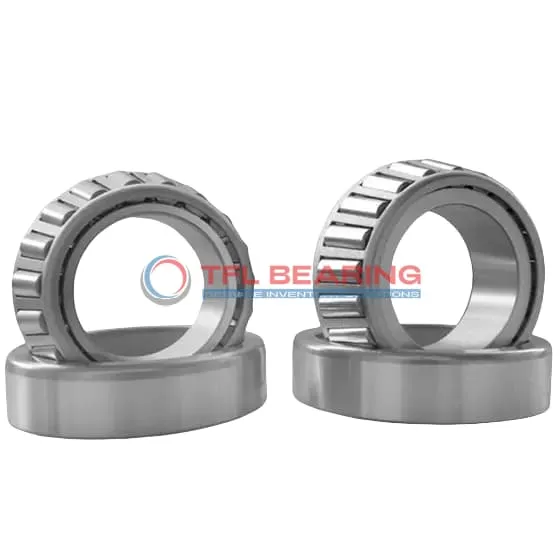

TS (Single Row Tapered Roller Bearings) (Imperial) HH231649-HH231610

TS (Single Row Tapered Roller Bearings) (Imperial) HH231649-HH231610

The HH231649-HH231610 is a single row tapered roller bearing with a 5.5″ bore and 11.375″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 257,000 lbf radially and 36,300 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for varied environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where high radial and thrust loads are common.

Weighing 52.3 lb, it’s built for strength and longevity. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH231649-HH231610
  • Brand TFL
  • Interchangeable Timken
  • Size 5.5" x 11.375" x 3.25"
  • Bore Dia 5.5"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 11.375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 3.4375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.25"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.25"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.380"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 7.2"
  • Cone Backface Backing Diameter 6.97"
  • Cup Frontface Backing Diameter 10.39"
  • Cup Backface Backing Diameter 10.04"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.47"
  • Effective Center Location -1.05"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number HH231649
  • Cup Part Number HH231610
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series HH231600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 257000 lbf
  • Static Radial Load 302000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 66600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 36300 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 52.300 lb

Features

Performance Features of HH231649-HH231610 Bearing

HH231649-HH231610 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 257,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is HH231649-HH231610 Bearing Engineered for Reliability?

HH231649-HH231610 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 36,300 lbf allows for efficient performance under pressure.
The bearing requires lubrication, ensuring long-term reliability in demanding environments.

Built for Durability: HH231649-HH231610 Bearing

HH231649-HH231610 Bearing is designed to withstand static radial loads up to 302,000 lbf.
The tapered roller design minimises friction, enhancing efficiency and reducing wear.
Its ABEC-1 rating ensures consistent performance for industrial applications.
The open seal type allows for easy maintenance and lubrication access.

Application

Industrial Uses of HH231649-HH231610 Bearing
HH231649-HH231610 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in harsh working conditions.

In automotive applications, HH231649-HH231610 Bearing supports large axles and wheel hubs, providing reliable performance under heavy radial and thrust loads. Its imperial sizing makes it a preferred choice for North American truck and trailer manufacturers.

For industrial gearboxes, HH231649-HH231610 Bearing’s single-row design offers precise alignment and smooth operation. The steel cage enhances stability, making it suitable for high-torque environments.

Where Is HH231649-HH231610 Bearing Used?
You’ll often find HH231649-HH231610 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design withstands dirt and debris. The open seal type allows for easy lubrication in field conditions.

In railway applications, HH231649-HH231610 Bearing ensures smooth rotation in freight car axles, thanks to its high dynamic load capacity. The standard radial clearance accommodates thermal expansion during long hauls.

Built for Heavy-Duty Use: HH231649-HH231610 Bearing
HH231649-HH231610 Bearing excels in oilfield equipment like pumps and drill rigs, where its tapered rollers manage extreme loads. The ABEC-1 rating balances precision and cost-effectiveness for industrial use.

For power transmission systems, HH231649-HH231610 Bearing’s chrome steel rollers reduce friction, enhancing efficiency. Its temperature range (-30° to 110°C) suits both cold and hot operating environments.

Automotive vs Aerospace: Applications of HH231649-HH231610 Bearing
In automotive settings, HH231649-HH231610 Bearing handles the rigorous demands of heavy-duty trucks, while its aerospace use is limited due to weight constraints. The bearing’s imperial sizing aligns with standard automotive components.

For industrial fans, HH231649-HH231610 Bearing provides reliable support in high-vibration environments. Its dynamic thrust rating ensures longevity even in continuous operation scenarios.
