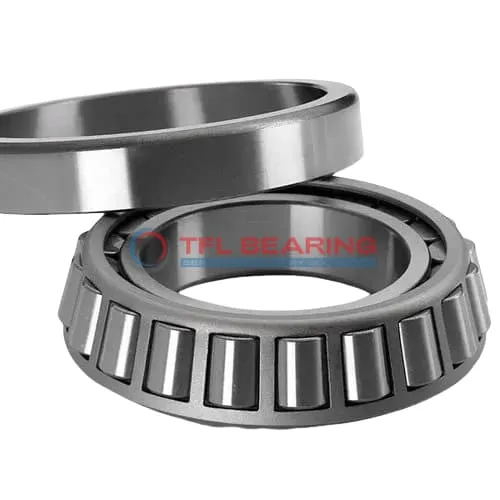

TS (Single Row Tapered Roller Bearings) (Imperial) H936340-H936316

TS (Single Row Tapered Roller Bearings) (Imperial) H936340-H936316

The H936340-H936316 is a single-row tapered roller bearing with a 6.125″ bore and 13.5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 276,000 lbf radially and 99,200 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable alternative for replacements. Ideal for industrial machinery or large equipment where robust load handling is needed.

Weighing 76 lbs, it’s built for strength and longevity. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number H936340-H936316
  • Brand TFL
  • Interchangeable Timken
  • Size 6.125" x 13.5" x 3.375"
  • Bore Dia 6.125"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 13.5"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.375"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 8.65"
  • Cone Backface Backing Diameter 8.23"
  • Cup Frontface Backing Diameter 12.28"
  • Cup Backface Backing Diameter 11.30"
  • Cage Cone Frontface Clearance 0.41"
  • Cage Cone Backface Clearance 0.67"
  • Effective Center Location 0.66"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number H936340
  • Cup Part Number H936316
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series H936300
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 276000 lbf
  • Static Radial Load 316000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 71600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 99200 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 76.00 lb

Features

Performance Features of H936340-H936316 Bearing

H936340-H936316 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 276,000 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures effective load distribution, reducing stress on individual components.
With a standard radial clearance, it provides reliable operation in various industrial settings.

H936340-H936316 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
The steel cage maintains roller alignment, enhancing durability and reducing maintenance needs.

Application

Industrial Uses of H936340-H936316 Bearing
H936340-H936316 Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

Where Is H936340-H936316 Bearing Used?
You’ll often find H936340-H936316 Bearing in large industrial gearboxes and power transmission systems. Its high dynamic load capacity makes it reliable for continuous operation under heavy stress.

Built for Heavy-Duty Use: H936340-H936316 Bearing
H936340-H936316 Bearing excels in applications like agricultural machinery and railroad axles, where its robust design withstands both radial and thrust loads. The steel cage adds extra strength for long-term performance.

Automotive vs Aerospace: Applications of H936340-H936316 Bearing
In automotive settings, H936340-H936316 Bearing supports large truck axles and drivetrains, while in aerospace, it’s used in landing gear systems. Its inch sizing makes it versatile for various industrial standards.

Key Fields for H936340-H936316 Bearing
H936340-H936316 Bearing is ideal for wind turbine systems, where its ability to handle high loads and misalignment ensures smooth operation. The open design allows for easy lubrication and maintenance.
