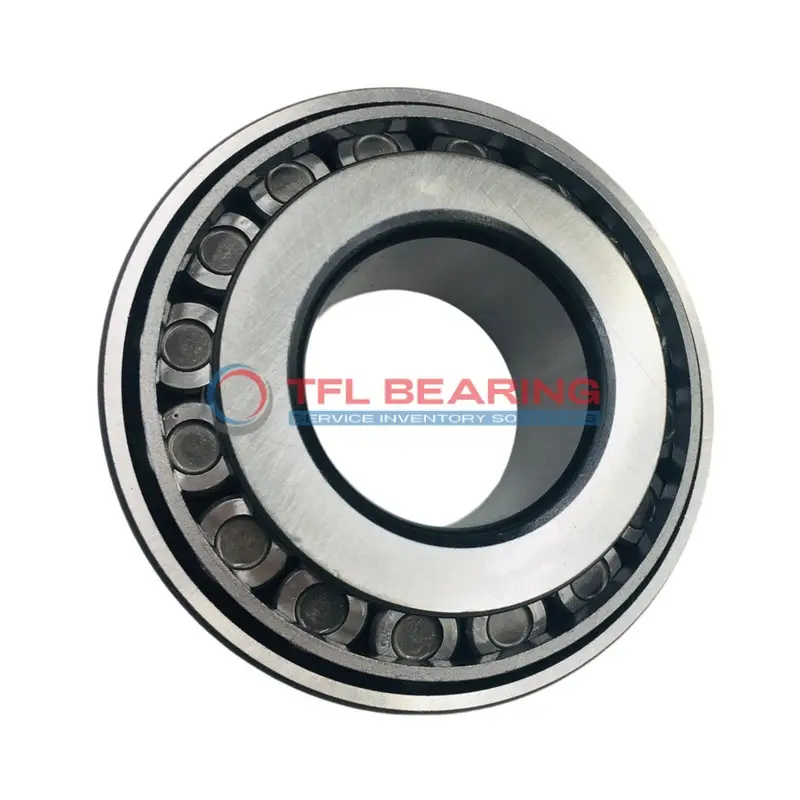

744AH Single Cones (Imperial)

744AH Single Cones (Imperial)

The 744AH single cones are tapered roller bearings with a 2.875″ bore, designed for combined loads. Made from durable chrome steel, they handle dynamic radial loads up to 81300 lbf and static loads up to 88600 lbf.

Their open design allows easy maintenance, while the steel cage ensures reliable performance. The bearings operate smoothly in temperatures from -30°C to 110°C, making them suitable for various industrial conditions.

These cones are part of the 745 series and are interchangeable with Timken bearings, offering flexibility for replacements. Ideal for heavy-duty applications like gearboxes or wheel hubs where combined loads are common.

Compliant with RoHS and REACH standards, they provide a robust and safe solution for demanding environments. The standard radial clearance can also be adjusted to C3, C4, or C5 as needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 744AH
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 744AH-742 , 744AH-742A , 744AH-742V , 744AH-742X , 744AH-743
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 745
  • Bore Dia 2.875"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1.8375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 3.35"
  • Cone Backface Backing Diameter 3.58"
  • Cage Cone Frontface Clearance 0.14"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.47"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 81300 lbf
  • Static Radial Load 88600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 21100 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 142000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11700 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 36700 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 744AH Bearing

744AH Bearing is crafted with chrome steel rings, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 81300 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

744AH Bearing’s tapered roller design provides efficient load distribution.
Its standard radial clearance options (C3/C4/C5) allow for flexibility in different applications.

The open seal type ensures easy maintenance and inspection.
This bearing is interchangeable with Timken, offering convenience for replacements.

Application

Industrial Uses of 744AH Bearing
The 744AH Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in rough environments.

Where Is 744AH Bearing Used?
You’ll find 744AH Bearing in automotive axles and gearboxes, where its high dynamic radial load capacity keeps things running smoothly. The inch sizing makes it a good fit for older machinery and certain industrial applications.

Built for Heavy-Duty Use: 744AH Bearing
In conveyor systems, 744AH Bearing provides reliable performance under constant stress. Its open design allows for easy lubrication, extending service life in demanding conditions.

Automotive vs Industrial: Applications of 744AH Bearing
While 744AH Bearing excels in truck wheel hubs, it’s equally useful in industrial fans and pumps. The steel cage adds stability during high-speed rotations.

Key Fields for 744AH Bearing
Agricultural machinery benefits from 744AH Bearing’s ability to handle shock loads. The standard radial clearance offers flexibility for various operating conditions.
