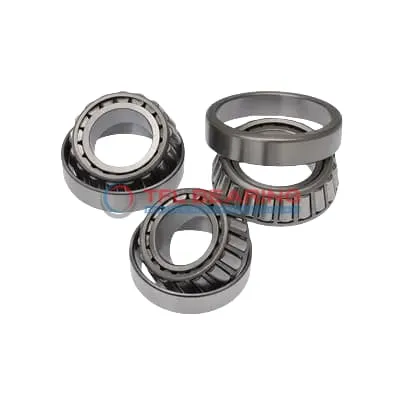

TS (Single Row Tapered Roller Bearings) (Imperial) H247549WS-H247510

TS (Single Row Tapered Roller Bearings) (Imperial) H247549WS-H247510

The H247549WS-H247510 is a single-row tapered roller bearing with a 9.25″ bore and 15.125″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 399,000 lbf radially and 58,800 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or large equipment where robust performance is needed.

Weighing 110.3 lb, it’s built to last and complies with RoHS and REACH standards for safety. The standard radial clearance can be adjusted to C3, C4, or C5 as required.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number H247549WS-H247510
  • Brand TFL
  • Interchangeable Timken
  • Size 9.25" x 15.125" x 4.4374"
  • Bore Dia 9.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 15.125"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 4.4375"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 3.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 4.4374"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 11.33"
  • Cone Backface Backing Diameter 10.59"
  • Cup Frontface Backing Diameter 14.32"
  • Cup Backface Backing Diameter 13.62"
  • Cage Cone Frontface Clearance 0.16"
  • Cage Cone Backface Clearance 0.37"
  • Effective Center Location -1.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number H247549WS
  • Cup Part Number H247510
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series H247500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 399000 lbf
  • Static Radial Load 699000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 103000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 58800 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 110.300 lb

Features

Performance Features of H247549WS-H247510 Bearing

H247549WS-H247510 Bearing is built with chrome steel rings and rollers, ensuring strength and durability under heavy loads.
Its dynamic radial load capacity reaches 399,000 lbf, making it suitable for demanding industrial applications.
The tapered roller design efficiently handles combined loads, providing reliable performance.
With a standard radial clearance, it offers flexibility for various operating conditions.

How Is H247549WS-H247510 Bearing Engineered for Reliability?

H247549WS-H247510 Bearing features a steel cage that maintains roller alignment, reducing wear and extending service life.
The chrome steel construction resists wear and corrosion, ensuring long-term reliability.
Its effective centre location of -1.1″ enhances stability during operation.
The bearing operates within a temperature range of -30° to 110°C, suitable for diverse environments.

Built for Durability: H247549WS-H247510 Bearing

H247549WS-H247510 Bearing’s single-row tapered roller design provides excellent load distribution.
The chrome steel components withstand high static radial loads up to 699,000 lbf.
Precision tolerances on bore and outer diameters ensure proper fit and smooth operation.
Its ABEC-1 rating confirms consistent quality and performance standards.

Steel vs Ceramic Bearings: Strengths of H247549WS-H247510 Bearing

H247549WS-H247510 Bearing uses chrome steel for both rings and rollers, offering proven strength and cost-effectiveness.
The steel cage provides robust support while maintaining roller positioning.
With a dynamic thrust rating of 58,800 lbf, it handles axial loads effectively.
The bearing’s standard radial clearance allows for reliable performance in various applications.

Why Choose H247549WS-H247510 Bearing for Precision Tasks?

H247549WS-H247510 Bearing’s precise tolerances ensure accurate performance in critical applications.
The tapered roller design minimises friction while handling combined radial and thrust loads.
Its interchangeable design with Timken bearings offers flexibility in replacement options.
The bearing’s weight of 110.3 lb reflects its sturdy construction for heavy-duty use.

Application

Industrial Uses of H247549WS-H247510 Bearing
H247549WS-H247510 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is H247549WS-H247510 Bearing Used?
You’ll often find H247549WS-H247510 Bearing in industrial gearboxes and large conveyor systems, thanks to its high dynamic radial load capacity. Its inch sizing makes it a good fit for American-made machinery.

Built for Heavy-Duty Use: H247549WS-H247510 Bearing
H247549WS-H247510 Bearing excels in applications like agricultural machinery, where its robust design withstands constant vibration and shock loads. The open seal type allows for easy lubrication maintenance.

Automotive vs Aerospace: Applications of H247549WS-H247510 Bearing
In automotive settings, H247549WS-H247510 Bearing supports large axle systems, while in aerospace, it’s used in auxiliary gearboxes. Its ABEC-1 rating ensures reliable performance across both sectors.

Practical Applications of H247549WS-H247510 Bearing
H247549WS-H247510 Bearing is a go-to choice for wind turbine yaw systems, where its static radial load capacity keeps components stable. The steel cage adds extra resilience against wear over time.
