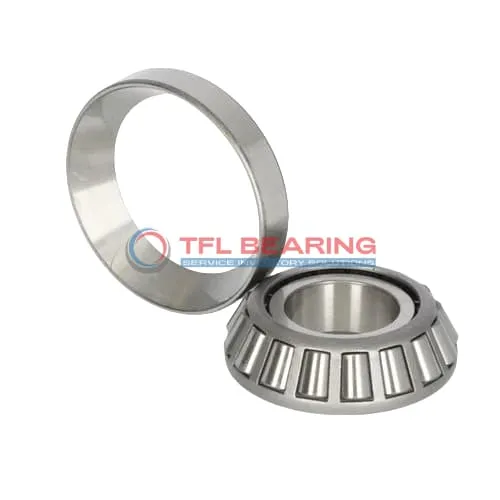

TS (Single Row Tapered Roller Bearings) (Imperial) EE285162-285226

TS (Single Row Tapered Roller Bearings) (Imperial) EE285162-285226

The EE285162-285226 is a single-row tapered roller bearing with a 16.125″ bore and 22.625″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 249,000 lbf radially and 55,000 lbf thrust, making it suitable for heavy-duty applications.

Its open design and steel cage ensure durability, while the standard radial clearance allows for smooth operation. The bearing can withstand temperatures from -30°C to 110°C, ideal for industrial environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. It’s commonly used in machinery like gearboxes or construction equipment where high load capacity is needed.

Weighing 114.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE285162-285226
  • Brand TFL
  • Interchangeable Timken
  • Size 16.125" x 22.625" x 3"
  • Bore Dia 16.125"
  • Bore Dia Tolerance +0.002" to 0
  • Outer Dia 22.625"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 2.6719"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3"
  • Width Tolerance +0.015" to -0.015"
  • Cone Backface ToClear Radius 0.270"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 18.46"
  • Cone Backface Backing Diameter 17.48"
  • Cup Frontface Backing Diameter 21.27"
  • Cup Backface Backing Diameter 21.02"
  • Cage Cone Frontface Clearance 0.19"
  • Cage Cone Backface Clearance 0.65"
  • Effective Center Location 1.52"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number EE285162
  • Cup Part Number 285226
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 285000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 249000 lbf
  • Static Radial Load 471000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 64600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 55000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 114.200 lb

Features

How Is EE285162-285226 Bearing Engineered for Reliability?

EE285162-285226 Bearing is built with chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 249,000 lbf, making it suitable for heavy-duty industrial applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it offers reliable performance in various operating conditions.

What Makes EE285162-285226 Bearing Suitable for High-Temperature Applications?

EE285162-285226 Bearing operates effectively in temperatures ranging from -30° to 110°C, maintaining performance in demanding environments.
The chrome steel construction resists wear and deformation, even under high thermal stress.
Its tapered roller design distributes loads evenly, preventing premature failure.
Regular lubrication ensures smooth operation and longevity in challenging conditions.

Designed for Durability: EE285162-285226 Bearing

EE285162-285226 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel components provide excellent resistance to wear and fatigue.
With a static radial load capacity of 471,000 lbf, it excels in heavy industrial settings.
Its standard radial clearance options allow for flexibility in different applications.

Application

Industrial Uses of EE285162-285226 Bearing
EE285162-285226 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The large imperial sizing makes it ideal for robust applications requiring durability.

In automotive systems, EE285162-285226 Bearing supports axle assemblies and wheel hubs, ensuring smooth operation under high radial and thrust loads. Its chrome steel construction provides long-lasting performance in demanding conditions.

For industrial conveyors, EE285162-285226 Bearing’s open design allows for easy lubrication, reducing maintenance downtime. The standard radial clearance ensures reliable performance in continuous operation scenarios.

Where Is EE285162-285226 Bearing Used?
EE285162-285226 Bearing is found in agricultural machinery, particularly in gearboxes and PTO shafts, where its tapered rollers manage heavy loads. The steel cage adds strength, making it suitable for rough terrain.

In wind turbines, EE285162-285226 Bearing supports the main shaft, handling dynamic loads with its high static radial capacity. The inch sizing ensures compatibility with many North American turbine designs.

Built for Heavy-Duty Use: EE285162-285226 Bearing
EE285162-285226 Bearing excels in railroad applications, such as freight car axles, where its combined load capacity is crucial. The ABEC-1 rating ensures consistent performance under varying speeds.

For oil and gas equipment, EE285162-285226 Bearing’s temperature range and lubrication requirements make it a reliable choice for drilling rigs. Its chrome steel rollers resist wear in harsh environments.

Automotive vs Aerospace: Applications of EE285162-285226 Bearing
In automotive settings, EE285162-285226 Bearing is used in truck differentials, where its thrust handling improves drivetrain efficiency. The imperial measurements align with many commercial vehicle standards.

For aerospace ground support, EE285162-285226 Bearing aids in cargo loading systems, offering robust performance without the need for frequent replacements. Its weight is balanced for heavy-duty use.
