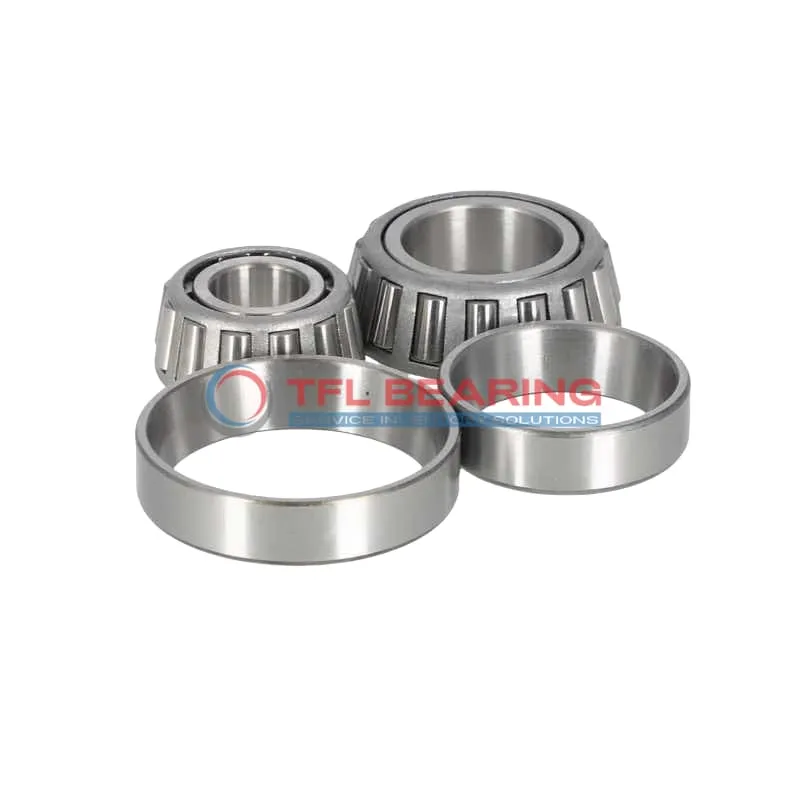

TS (Single Row Tapered Roller Bearings) (Imperial) EE101103-101600

TS (Single Row Tapered Roller Bearings) (Imperial) EE101103-101600

The EE101103-101600 is a single-row tapered roller bearing with an 11.0312″ bore and 16″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 155,000 lbf radially and 28,100 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where robust performance is needed.

Weighing 43.1 lb, it’s designed for stability and long service life. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE101103-101600
  • Brand TFL
  • Interchangeable Timken
  • Size 11.0312" x 16" x 2.0625"
  • Bore Dia 11.0312"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 16"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 1.9768"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.0625"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.270"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 13.19"
  • Cone Backface Backing Diameter 12.17"
  • Cup Frontface Backing Diameter 14.88"
  • Cup Backface Backing Diameter 14.84"
  • Cage Cone Frontface Clearance 0.25"
  • Cage Cone Backface Clearance 0.26"
  • Effective Center Location 0.62"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number EE101103
  • Cup Part Number 101600
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 100000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 155000 lbf
  • Static Radial Load 266000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 40200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 28100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 43.100 lb

Features

How Is EE101103-101600 Bearing Engineered for Reliability?

EE101103-101600 Bearing is built with chrome steel rings and rollers, ensuring strength and durability under heavy loads.
Its dynamic radial load capacity reaches 155,000 lbf, making it suitable for demanding industrial applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Performance Features of EE101103-101600 Bearing

EE101103-101600 Bearing’s tapered roller design efficiently handles combined radial and thrust loads.
The chrome steel construction resists wear, ensuring consistent performance over time.
Its standard radial clearance options provide flexibility for different operational needs.
The bearing requires lubrication, but its robust design minimises maintenance frequency.

Why Choose EE101103-101600 Bearing for Precision Tasks?

EE101103-101600 Bearing offers precise tolerances, with bore diameter accuracy within +0.001″ to 0.
Its effective center location of 0.62″ ensures stable and balanced operation.
The bearing’s ABEC-1 rating confirms its suitability for precision applications.
With a static radial load capacity of 266,000 lbf, it delivers both accuracy and strength.

Application

Industrial Uses of EE101103-101600 Bearing
EE101103-101600 Bearing is commonly used in heavy machinery, such as construction equipment and mining gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability in tough working conditions.

In automotive applications, EE101103-101600 Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it a straightforward replacement for Timken equivalents.

For industrial conveyor systems, EE101103-101600 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds strength, making it suitable for high-load scenarios.

Where Is EE101103-101600 Bearing Used?
EE101103-101600 Bearing is ideal for agricultural machinery, like tractors and harvesters, where its robust design withstands dusty and demanding environments. The standard radial clearance ensures smooth rotation even under uneven loads.

In power transmission systems, EE101103-101600 Bearing supports shafts and gears, offering stability and reducing friction. Its ABEC-1 rating provides a balance of precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: EE101103-101600 Bearing
EE101103-101600 Bearing excels in railway applications, such as axle boxes, where its tapered rollers manage both radial and axial forces. The large bore diameter accommodates heavy shafts commonly found in rail transport.

For pulp and paper processing equipment, EE101103-101600 Bearing’s temperature tolerance ensures reliable performance in humid and variable conditions. The steel cage resists corrosion, making it a practical choice for long-term use.

Automotive vs Aerospace: Applications of EE101103-101600 Bearing
In automotive settings, EE101103-101600 Bearing is often found in heavy-duty trucks, handling the stress of frequent starts and stops. Its dynamic load capacity makes it a dependable option for commercial vehicles.

For aerospace ground support equipment, EE101103-101600 Bearing’s precision and strength aid in maintaining stability for loading and maintenance machinery. The inch measurements align with many US-made systems.
