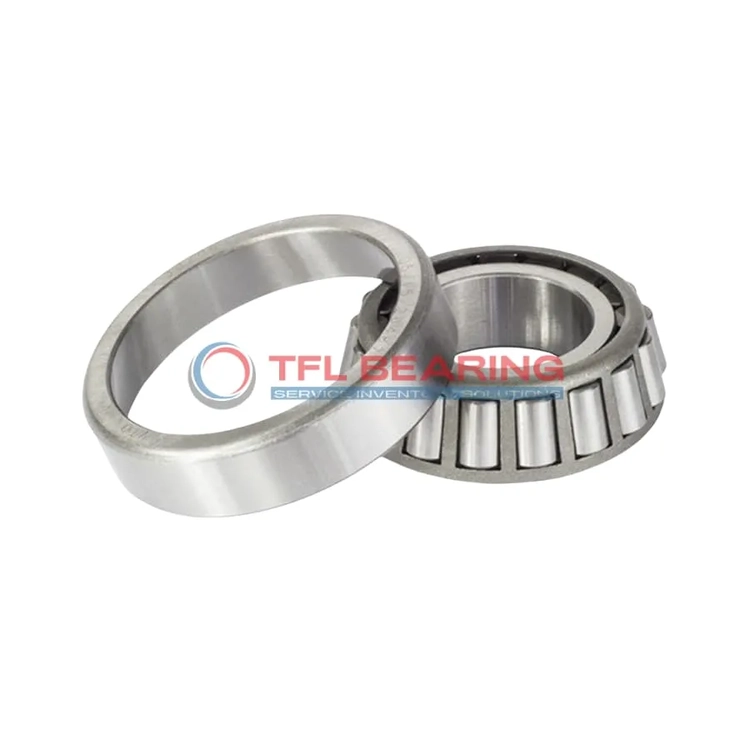

TS (Single Row Tapered Roller Bearings) (Imperial) A6062-A6157

TS (Single Row Tapered Roller Bearings) (Imperial) A6062-A6157

The A6062-A6157 is a single-row tapered roller bearing with a 0.625″ bore and 1.5745″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 3020 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing is interchangeable with Timken models, making it a practical choice for replacements.

With a compact width of 0.473″, it fits well in tight spaces. The standard radial clearance and ABEC-1 rating ensure reliable performance for general applications.

Ideal for machinery requiring combined load support, such as gearboxes or automotive components. Compliant with RoHS and REACH standards, it’s a safe and dependable option. Weighing just 0.200 lb, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number A6062-A6157
  • Brand TFL
  • Interchangeable Timken
  • Size 0.625" x 1.5745" x 0.473"
  • Bore Dia 0.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.5745"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.4391"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.473"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 0.81"
  • Cone Backface Backing Diameter 0.87"
  • Cup Frontface Backing Diameter 1.48"
  • Cup Backface Backing Diameter 1.34"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.06"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number A6062
  • Cup Part Number A6157
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series A6000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 3020 lbf
  • Static Radial Load 2770 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 782 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 705 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.200 lb

Features

How Is A6062-A6157 Bearing Engineered for Reliability?

A6062-A6157 Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 3020 lbf, making it suitable for demanding applications.

The tapered roller design distributes loads evenly, reducing stress and extending service life.
With a standard radial clearance, it offers reliable performance in various operating conditions.

A6062-A6157 Bearing operates within a temperature range of -30° to 110°C, adapting to different environments.
Its steel cage maintains roller alignment, ensuring smooth and efficient operation.

Application

Industrial Uses of A6062-A6157 Bearing
A6062-A6157 Bearing is commonly used in industrial machinery where combined radial and thrust loads are present, such as conveyor systems and gearboxes. Its tapered roller design ensures smooth operation even under heavy loads.

In automotive applications, A6062-A6157 Bearing fits well in wheel hubs and differential systems, thanks to its durable chrome steel construction. The imperial sizing makes it compatible with many North American vehicle models.

For automation equipment, A6062-A6157 Bearing provides reliable performance in robotic arms and assembly lines. The open design allows for easy lubrication, extending its service life in high-use environments.

A6062-A6157 Bearing also works well in agricultural machinery, handling the tough conditions of tractors and harvesters. Its standard radial clearance offers flexibility for various operational needs.
