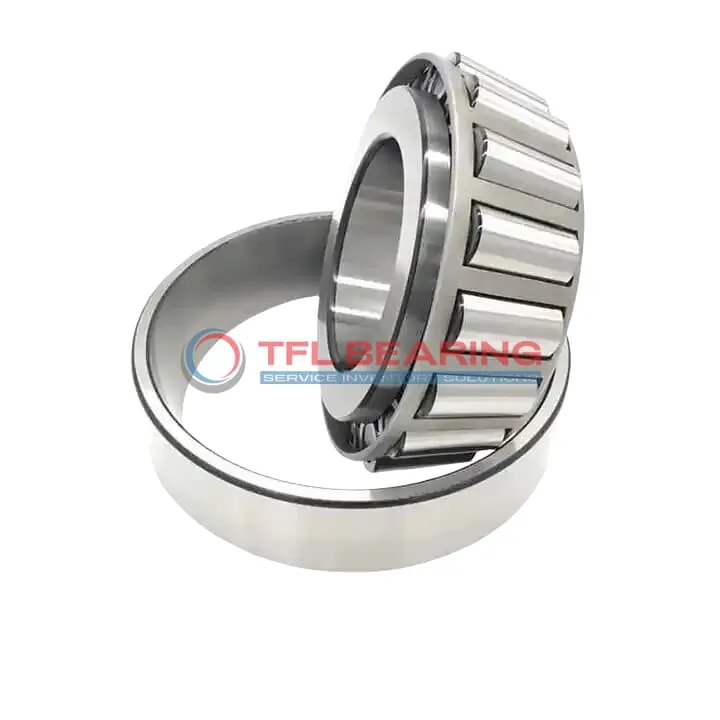

TS (Single Row Tapered Roller Bearings) (Imperial) 99603AS-99100

TS (Single Row Tapered Roller Bearings) (Imperial) 99603AS-99100

The 99603AS-99100 is a single-row tapered roller bearing with a 6″ bore and 10″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 139,000 lbf radially and 25,200 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for varied environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where high load capacity is needed.

Weighing 28.5 lb, it’s built to last while meeting RoHS and REACH standards for safety and compliance. The standard radial clearance ensures straightforward installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 99603AS-99100
  • Brand TFL
  • Interchangeable Timken
  • Size 6" x 10" x 2.625"
  • Bore Dia 6"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 10"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.625"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 7.52"
  • Cone Backface Backing Diameter 6.69"
  • Cup Frontface Backing Diameter 9.38"
  • Cup Backface Backing Diameter 8.94"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.18"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 99603AS
  • Cup Part Number 99100
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 99000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 139000 lbf
  • Static Radial Load 211000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 36100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 25200 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 28.5 lb

Features

Performance Features of 99603AS-99100 Bearing

99603AS-99100 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 139,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 99603AS-99100 Bearing Engineered for Reliability?

99603AS-99100 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides excellent strength and wear resistance.
Its dynamic thrust rating of 25,200 lbf ensures consistent performance under pressure.
The standard radial clearance options allow for flexibility in different applications.

Built for Durability: 99603AS-99100 Bearing

99603AS-99100 Bearing’s robust chrome steel components ensure long service life even under heavy loads.
The precise cone and cup design minimises friction, promoting smooth operation.
With a static radial load capacity of 211,000 lbf, it handles demanding conditions with ease.
The steel cage maintains roller positioning, reducing maintenance needs over time.

Application

Industrial Uses of 99603AS-99100 Bearing
99603AS-99100 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is 99603AS-99100 Bearing Used?
You’ll often find 99603AS-99100 Bearing in automotive applications, particularly in truck wheel hubs and differential systems. Its inch sizing makes it a popular choice for North American vehicle manufacturers.

Built for Heavy-Duty Use: 99603AS-99100 Bearing
99603AS-99100 Bearing excels in industrial gearboxes, where its high dynamic load capacity supports smooth power transmission. The open design allows for easy lubrication, extending service life.

Automotive vs Aerospace: Applications of 99603AS-99100 Bearing
In automotive settings, 99603AS-99100 Bearing is ideal for axles and transmissions, while its precision also suits aerospace landing gear components. The steel cage provides reliable performance under varying temperatures.

Perfect Fit for Automation: 99603AS-99100 Bearing
99603AS-99100 Bearing works well in automated assembly lines, particularly in robotic arms handling heavy payloads. Its standard radial clearance ensures consistent movement without excessive play.
