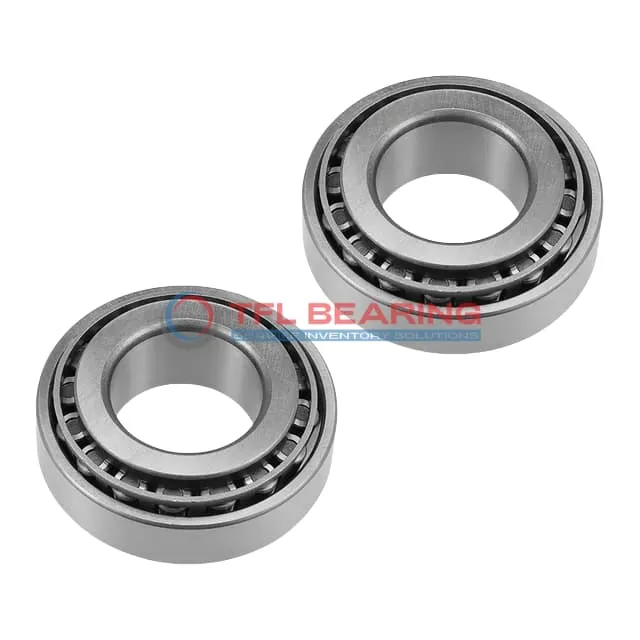

TS (Single Row Tapered Roller Bearings) (Imperial) 95524V-95923V

TS (Single Row Tapered Roller Bearings) (Imperial) 95524V-95923V

The 95524V-95923V is a single-row tapered roller bearing with a 5.25″ bore and 9.25″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 168,000 lbf radially and 27,500 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability even at high speeds. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for varied environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where combined loads are common.

Weighing 24.5 lb, it’s built for strength and longevity. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The standard radial clearance can be adjusted to C3, C4, or C5 for specific needs. Its tapered roller design ensures even load distribution, reducing wear over time.

Perfect for applications requiring precise alignment and high load capacity, such as construction or mining equipment. The ABEC-1 rating balances performance and affordability for most industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 95524V-95923V
  • Brand TFL
  • Interchangeable Timken
  • Size 5.25" x 9.25" x 2.5"
  • Bore Dia 5.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.5"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 6.80"
  • Cone Backface Backing Diameter 5.87"
  • Cup Frontface Backing Diameter 8.58"
  • Cup Backface Backing Diameter 8.23"
  • Cage Cone Frontface Clearance 0.19"
  • Cage Cone Backface Clearance 0.22"
  • Effective Center Location -0.55"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 95524V
  • Cup Part Number 95923V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 95000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 168000 lbf
  • Static Radial Load 209000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 43400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 27500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 24.5 lb

Features

Performance Features of 95524V-95923V Bearing

95524V-95923V Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 168,000 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

95524V-95923V Bearing requires lubrication, ensuring smooth operation and reduced wear.
Its standard radial clearance options provide flexibility for different application needs.

Application

Industrial Uses of 95524V-95923V Bearing
95524V-95923V Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 95524V-95923V Bearing Used?
You’ll often find 95524V-95923V Bearing in agricultural machinery, supporting components like gearboxes and axles. Its inch sizing makes it a good fit for North American equipment standards.

Built for Heavy-Duty Use: 95524V-95923V Bearing
95524V-95923V Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication. The steel cage adds stability during high-load operations.

Automotive vs Aerospace: Applications of 95524V-95923V Bearing
In automotive systems, 95524V-95923V Bearing supports wheel hubs and drivetrains, while in aerospace, it’s used in landing gear assemblies. Its ABEC-1 rating ensures reliable performance.

Essential Roles of 95524V-95923V Bearing
95524V-95923V Bearing is a go-to choice for railway applications, particularly in freight car axles. The standard radial clearance offers flexibility for various load conditions.
