TS (Single Row Tapered Roller Bearings) (Imperial) 95512-95912

TS (Single Row Tapered Roller Bearings) (Imperial) 95512-95912

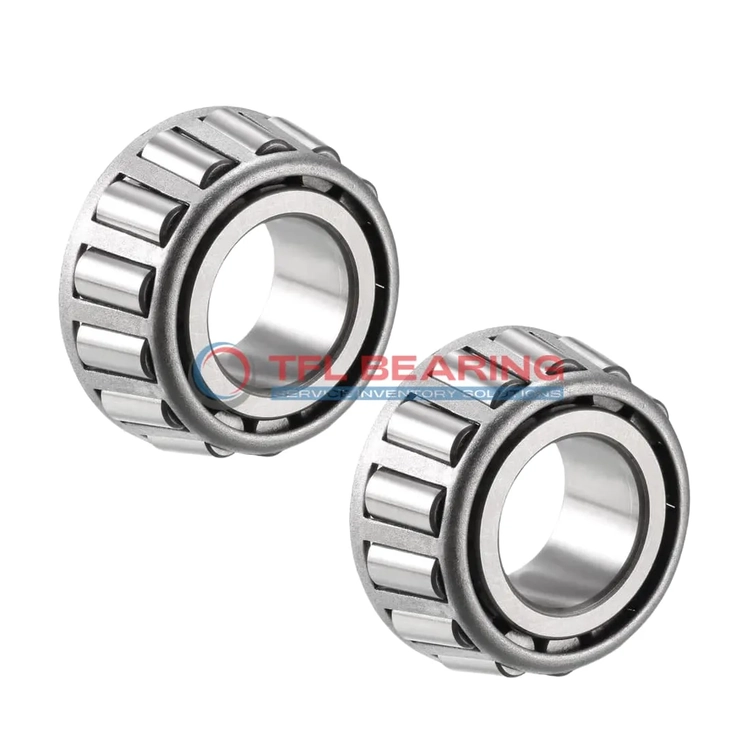

The 95512-95912 is a single-row tapered roller bearing with a 5.1171″ bore and 9.125″ outer diameter, crafted from robust chrome steel. It handles combined loads up to 141,000 lbf radially and 23,200 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing 24.2 lb, it’s built to last with standard radial clearance and ABEC-1 precision. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 95512-95912
  • Brand TFL
  • Interchangeable Timken
  • Size 5.1171" x 9.125" x 2.5"
  • Bore Dia 5.1171"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9.125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.5"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 6.68"
  • Cone Backface Backing Diameter 6.18"
  • Cup Frontface Backing Diameter 8.58"
  • Cup Backface Backing Diameter 8.15"
  • Cage Cone Frontface Clearance 0.19"
  • Cage Cone Backface Clearance 0.22"
  • Effective Center Location -0.55"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 95512
  • Cup Part Number 95912
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 95000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 141000 lbf
  • Static Radial Load 209000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 36700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 23200 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 24.200 lb

Features

Performance Features of 95512-95912 Bearing

95512-95912 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 141,000 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

95512-95912 Bearing requires lubrication, ensuring smooth operation and reduced wear over time.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 95512-95912 Bearing
The 95512-95912 Bearing is commonly used in heavy machinery like construction equipment and mining vehicles, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

Where Is 95512-95912 Bearing Used?
You’ll often find the 95512-95912 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design supports high radial and thrust loads. The inch sizing makes it a reliable choice for North American equipment.

Built for Heavy-Duty Use: 95512-95912 Bearing
In industrial gearboxes, the 95512-95912 Bearing provides smooth operation under heavy loads, thanks to its tapered rollers and steel cage. Its standard radial clearance offers flexibility for various applications.

Automotive vs Aerospace: Applications of 95512-95912 Bearing
In automotive systems, the 95512-95912 Bearing is ideal for wheel hubs and differentials, while in aerospace, it supports auxiliary systems requiring precise load handling. The ABEC-1 rating ensures consistent performance.

Perfect Fit for Automation: 95512-95912 Bearing
For automated conveyor systems, the 95512-95912 Bearing offers reliable performance with its open design and easy lubrication. Its temperature range suits both indoor and outdoor industrial settings.
