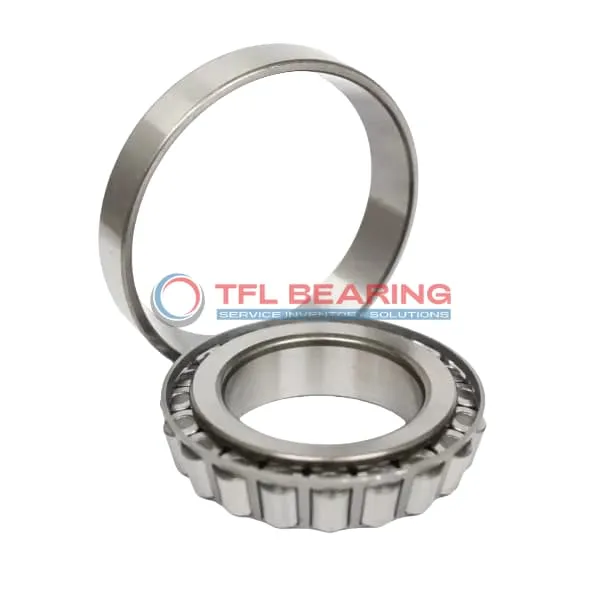

TS (Single Row Tapered Roller Bearings) (Imperial) 93800-93134

TS (Single Row Tapered Roller Bearings) (Imperial) 93800-93134

The 93800-93134 is a single-row tapered roller bearing with an 8-inch bore and 13.4-inch outer diameter, built from sturdy chrome steel. It handles combined loads up to 164,000 lbf radially and 38,200 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or vehicle axles where robust performance is needed.

Weighing 52.9 lb, it’s designed for stability and long service life. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 93800-93134
  • Brand TFL
  • Interchangeable Timken
  • Size 8" x 13.4132" x 2.8"
  • Bore Dia 8"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 13.4132"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 2.5"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.1125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.8"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.170"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 9.84"
  • Cone Backface Backing Diameter 8.94"
  • Cup Frontface Backing Diameter 11.97"
  • Cup Backface Backing Diameter 11.77"
  • Cage Cone Frontface Clearance 0.21"
  • Cage Cone Backface Clearance 0.32"
  • Effective Center Location 0.31"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 93800
  • Cup Part Number 93134
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 93000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 164000 lbf
  • Static Radial Load 290000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 42600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 38200 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 52.90 lb

Features

Performance Features of 93800-93134 Bearing

93800-93134 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 164,000 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 93800-93134 Bearing Engineered for Reliability?

93800-93134 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction enhances durability, while the standard radial clearance ensures smooth operation.
Its dynamic thrust rating of 38,200 lbf (Ca90) provides consistent performance under stress.
The bearing requires lubrication, but its robust design minimises maintenance needs.

Built for Durability: 93800-93134 Bearing

93800-93134 Bearing’s tapered roller design distributes loads evenly, reducing wear on components.
The chrome steel material resists deformation, even under static radial loads up to 290,000 lbf.
With an ABEC-1 rating, it balances precision and cost-effectiveness for industrial use.
The standard cup type simplifies installation, saving time during assembly.

Application

Industrial Uses of 93800-93134 Bearing
In heavy machinery like mining equipment and construction gear, 93800-93134 Bearing handles combined loads with ease. Its tapered roller design ensures stability even under intense pressure.

Where Is 93800-93134 Bearing Used?
You’ll often spot 93800-93134 Bearing in agricultural machinery, where its robust build withstands dusty conditions. The inch sizing makes it a go-to for older American-built tractors.

Built for Heavy-Duty Use: 93800-93134 Bearing
This bearing shines in truck wheel hubs, managing both radial and thrust loads during long hauls. The chrome steel construction offers reliable performance mile after mile.

Automotive vs Aerospace: Applications of 93800-93134 Bearing
While 93800-93134 Bearing fits truck axles perfectly, it’s also found in industrial fans for its smooth rotation. The steel cage keeps everything aligned during high-speed operation.

What Makes 93800-93134 Bearing a Preferred Choice?
For conveyor systems in factories, 93800-93134 Bearing’s standard radial clearance allows for thermal expansion. It’s a workhorse that keeps production lines moving reliably.
