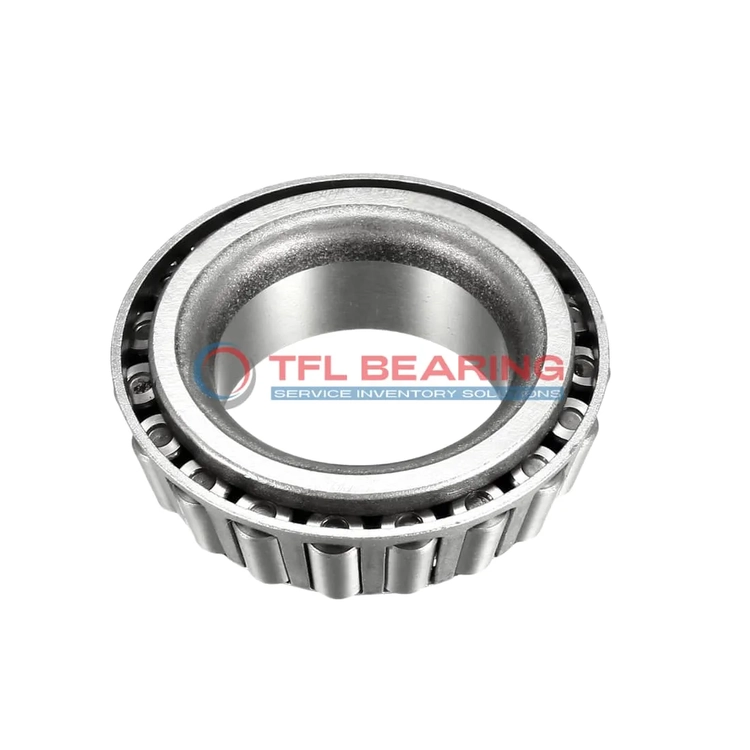

TS (Single Row Tapered Roller Bearings) (Imperial) 936-932

TS (Single Row Tapered Roller Bearings) (Imperial) 936-932

The 936-932 is a single-row tapered roller bearing with a 4.25″ bore and 8.375″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 129,000 lbf radially and 18,600 lbf thrust, making it a robust choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or construction equipment where combined loads are common.

Weighing 22.9 lb, it’s built to last and complies with RoHS and REACH standards for safe use. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 936-932
  • Brand TFL
  • Interchangeable Timken
  • Size 4.25" x 8.375" x 2.625"
  • Bore Dia 4.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 8.375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.625"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.310"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 5.75"
  • Cone Backface Backing Diameter 5.39"
  • Cup Frontface Backing Diameter 7.61"
  • Cup Backface Backing Diameter 7.36"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.23"
  • Effective Center Location -0.78"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 936
  • Cup Part Number 932
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 935
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 129000 lbf
  • Static Radial Load 177000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 33300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 18600 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 22.9 lb

Features

How Is 936-932 Bearing Engineered for Reliability?

936-932 Bearing is built with chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 129,000 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Structural Advantages of 936-932 Bearing

936-932 Bearing features a single-row tapered roller design, optimised for handling combined radial and thrust loads.
The precise cone and cup dimensions ensure smooth operation and easy installation.
Its standard radial clearance allows for flexibility in different applications.
The chrome steel construction provides excellent resistance to wear and fatigue.

Why Choose 936-932 Bearing for Precision Tasks?

936-932 Bearing offers a dynamic thrust rating of 18,600 lbf, ensuring precise performance under load.
The tapered roller design minimises friction, enhancing efficiency and reducing heat generation.
Its ABEC-1 rating guarantees consistent quality and reliable operation.
The open seal type allows for easy lubrication and maintenance.

Enhanced for Longevity: 936-932 Bearing

936-932 Bearing’s chrome steel rollers and rings are designed to withstand heavy loads and harsh conditions.
The steel cage ensures stable roller movement, preventing misalignment and wear.
With a static radial load capacity of 177,000 lbf, it delivers long-lasting performance.
Its standard lubrication requirement ensures smooth operation over extended periods.

Steel vs Ceramic Bearings: Strengths of 936-932 Bearing

936-932 Bearing’s chrome steel construction provides a balance of durability and cost-effectiveness.
The material choice ensures resistance to wear and high load capacities.
Its tapered roller design offers superior performance in combined load scenarios.
The steel cage adds stability, making it a reliable choice for industrial applications.

Application

Industrial Uses of 936-932 Bearing
The 936-932 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 936-932 Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. The imperial sizing makes it a preferred choice for North American vehicle manufacturers.

For industrial fans and pumps, 936-932 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear during high-speed rotations.

Where Is 936-932 Bearing Used?
You’ll often find 936-932 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design withstands rough terrain and heavy loads. The ABEC-1 rating ensures consistent performance without over-engineering.

In conveyor systems, 936-932 Bearing supports heavy rollers, ensuring smooth material handling in factories and warehouses. Its standard radial clearance makes it adaptable to various load conditions.

Built for Heavy-Duty Use: 936-932 Bearing
The 936-932 Bearing excels in forestry equipment like log splitters and sawmills, where its tapered rollers manage intense combined loads. The chrome steel rollers resist deformation under pressure.

For railway applications, 936-932 Bearing is used in axle boxes, providing reliable support for freight and passenger trains. Its temperature range (-30° to 110°C) ensures performance in diverse climates.

Automotive vs Aerospace: Applications of 936-932 Bearing
In automotive settings, 936-932 Bearing is ideal for heavy-duty trucks and buses, offering long-lasting performance in wheel and transmission systems. The imperial measurements simplify replacements.

While not typically used in aerospace, 936-932 Bearing finds niche roles in ground support equipment, where its durability and load capacity are valued. The steel cage ensures smooth operation under varying loads.
