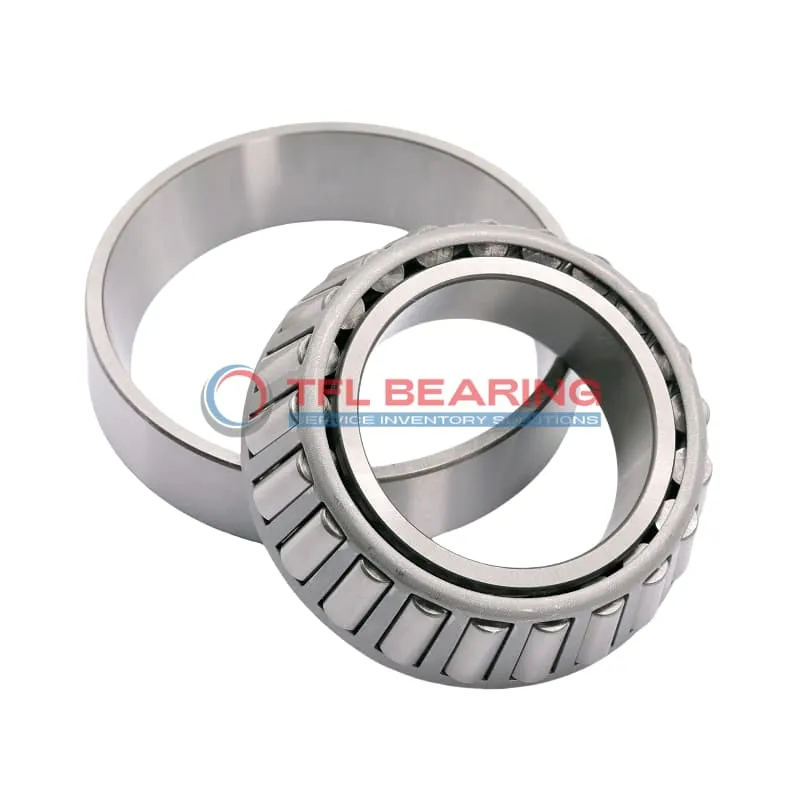

TS (Single Row Tapered Roller Bearings) (Imperial) 869-854V

TS (Single Row Tapered Roller Bearings) (Imperial) 869-854V

The 869-854V is a single-row tapered roller bearing with a 3.4375″ bore and 7.5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 103,000 lbf radially and 15,300 lbf thrust, making it a robust choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 17.1 lb, it’s built to last and complies with RoHS and REACH standards for safe use. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 869-854V
  • Brand TFL
  • Interchangeable Timken
  • Size 3.4375" x 7.5" x 2.2501"
  • Bore Dia 3.4375"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 7.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.265"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.2501"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.310"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.72"
  • Cone Backface Backing Diameter 4.61"
  • Cup Frontface Backing Diameter 6.86"
  • Cup Backface Backing Diameter 6.69"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.6"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 869
  • Cup Part Number 854V
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 855
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 103000 lbf
  • Static Radial Load 142000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 26700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 15300 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 17.1 lb

Features

Performance Features of 869-854V Bearing

869-854V Bearing is constructed with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 103,000 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, ensuring smooth operation and reduced wear.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Why Choose 869-854V Bearing for Precision Tasks?

869-854V Bearing features precise tolerances, with bore and outer diameter tolerances within +0.001″ to 0.
This accuracy ensures consistent performance in precision applications.
The tapered roller design efficiently handles both radial and thrust loads.
Its standard radial clearance option provides flexibility for different operational needs.

Built for Reliability: 869-854V Bearing

869-854V Bearing’s chrome steel construction enhances durability and resistance to wear.
The single-row design simplifies installation while maintaining high load capacity.
With a static radial load rating of 142,000 lbf, it excels in demanding conditions.
Its ABEC-1 rating confirms consistent quality and performance standards.

Steel vs Ceramic Bearings: Strengths of 869-854V Bearing

869-854V Bearing uses chrome steel for both rings and rollers, balancing cost and performance.
This material choice provides excellent strength and fatigue resistance.
The bearing’s dynamic thrust rating of 15,300 lbf ensures reliable operation under thrust loads.
Its standard lubrication requirement simplifies maintenance routines.

How Does 869-854V Bearing Resist Wear?

869-854V Bearing’s chrome steel components are hardened for increased wear resistance.
The tapered roller design distributes loads evenly, reducing stress on individual components.
With a cage clearance design, it minimises friction and prolongs service life.
Its compliance with RoHS and REACH standards ensures environmentally friendly operation.

Application

Industrial Uses of 869-854V Bearing
869-854V Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 869-854V Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. Its imperial sizing makes it a straightforward replacement for Timken equivalents.

For industrial conveyor systems, 869-854V Bearing’s open design simplifies lubrication and maintenance, reducing downtime. The steel cage adds stability, making it suitable for continuous operation.

Where Is 869-854V Bearing Used?
869-854V Bearing finds its place in agricultural machinery, particularly in tractor gearboxes and PTO shafts, where its robust design withstands variable loads. The standard radial clearance offers flexibility for different operating conditions.

In material handling equipment, 869-854V Bearing supports heavy loads in forklifts and cranes, ensuring smooth movement. Its ABEC-1 rating balances precision and cost-effectiveness for industrial applications.

Built for Heavy-Duty Use: 869-854V Bearing
869-854V Bearing excels in forestry equipment like log splitters and sawmills, where its tapered rollers manage intense shock loads. The chrome steel rollers resist wear, extending service life.

For railway applications, 869-854V Bearing is used in axle boxes, providing reliable performance under constant vibration. Its temperature range suits both cold and moderate climates.

Automotive vs Aerospace: Applications of 869-854V Bearing
In automotive settings, 869-854V Bearing is ideal for heavy-duty trucks and trailers, handling high radial loads. Its compatibility with Timken designs simplifies sourcing.

For aerospace ground equipment, 869-854V Bearing supports maintenance tools and cargo loaders, where its durability meets frequent use demands. The inch measurements align with US manufacturing standards.
